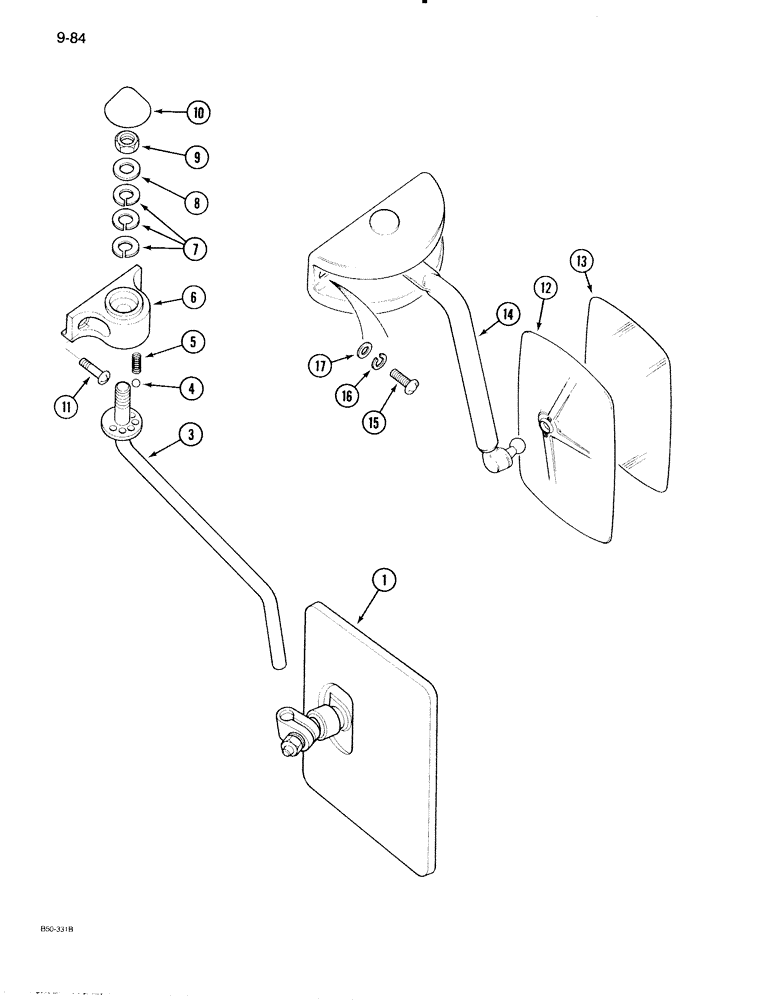

Запчасти Case IH 595 (9-084) - CAB, WING MIRRORS (09) - CHASSIS/ATTACHMENTS

1

3399576R91

MIRROR ASSY.

MIRROR ASSEMBLY - standard

2шт.

3399580R91

SUPPORT

ASSEMBLY - mirror, Includes: Ref. 3 - 9

2шт.

3

NSS

NOT SOLD SEPARAT

ARM - mirror

1шт.

4

511-1060

BALL,6mm Dia

1шт.

5

3399562R1

SPRING

- compression

1шт.

6

3399573R1

SUPPORT

HOLDER - mirror

1шт.

7

934223R1

BELLEVILLE WASHER,M12 Bolt Size x 25mm OD x 1.5mm Thk

Lock M12.2 ID x 25 OD x 1.5 Thk

3шт.

8

933963R1

WASHER,M13 ID x 24 OD x 2.5 Thk

- flat, 12 mm

1шт.

9

3079424R1

THIN NUT,M12 x 20, Thin

1шт.

10

3399567R1

CAP

- cover

1шт.

11

3234909R1

SCREW,Hex Flat Hd, M8 x 20, 4.8

- flat, cross recess, 8 mm x 20 mm

4шт.

1970869C1

MIRROR

ASSEMBLY - left (Optional to 3399576R91), Includes: Ref. 12 - 14

1шт.

1970870C1

MIRROR

ASSEMBLY - right (Optional to 3399576R91), Includes: Ref. 12 - 14

1шт.

12

1970871C1

MIRROR

HEAD ASSEMBLY - mirror (Order K303758), Includes: Ref. 13

1шт.

13

1970873C1

GLASS,CAB

GLASS - mirror (Order K261635)

1шт.

14

1970872C1

ARM

- mirror

1шт.

15

30301R1

SCREW,Cross Pan Hd, M8 x 20

- pan, cross recess, 8 x 20 mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
