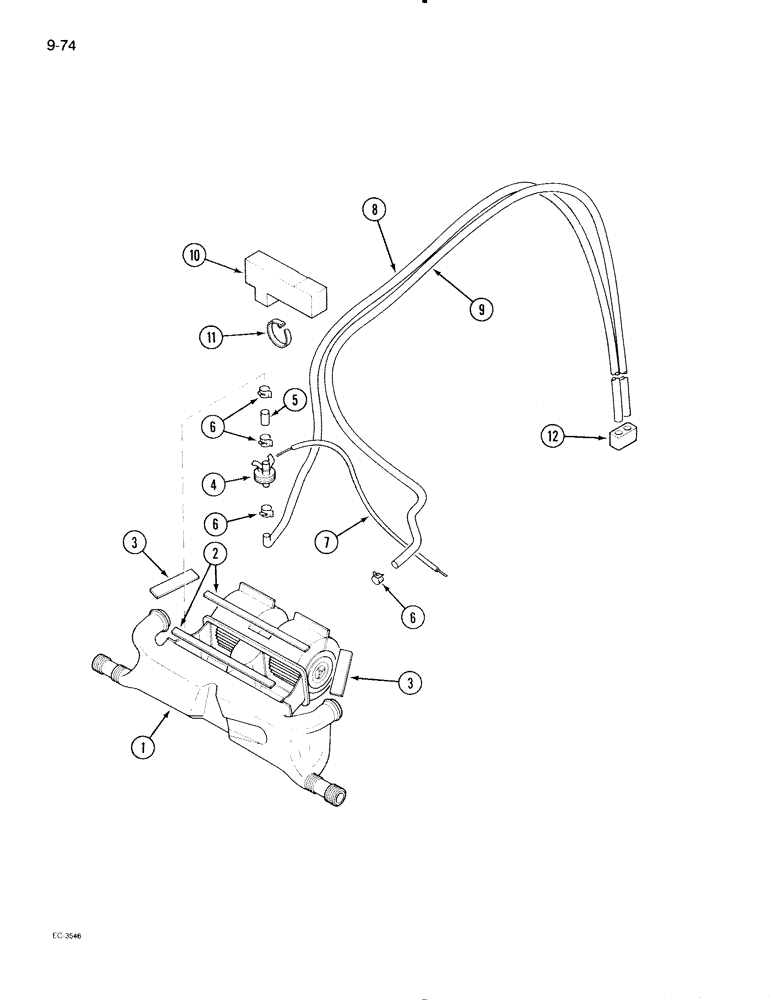

Запчасти Case IH 595 (9-074) - CAB, HEATER PIPES (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (Without air conditioning)(See Figure 9-36), Includes: Ref. 1 - 12

1шт.

1

REF

INSTRUCTION

BLOWER ASSEMBLY - heater (See Figure 9-78)

1шт.

2

3234097R1

SEALING STRIP

- Blower assy, Front and rear

2шт.

3

3234096R1

SEALING STRIP

- blower assembly, side

2шт.

4

3234102R92

VALVE

- heater control

1шт.

5

3234038R2

HEATER HOSE,15.50 mm ID x 41.00 mm

HOSE 15.50 mm ID x 41.00 mm

1шт.

6

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

7

3234197R1

CABLE

- operating, heater water valve

1шт.

8

3234103R2

HEATER HOSE,15.50 mm ID x 3000.00 mm

HOSE , Heating Water Supply 15.50 mm ID x 3000.00 mm

1шт.

9

3234104R2

HEATER HOSE,15.50 mm ID x 3340.00 mm

HOSE , Water Return 15.50 mm ID x 3340.00 mm

1шт.

10

3234122R1

SEALING STRIP

SEAL - hoses

1шт.

11

3141429R1

CABLE TIE

STRAP - cable

1шт.

12

3234136R1

PAD, RUBBER

PAD - rubber (Order 1259764C1)

1шт.
