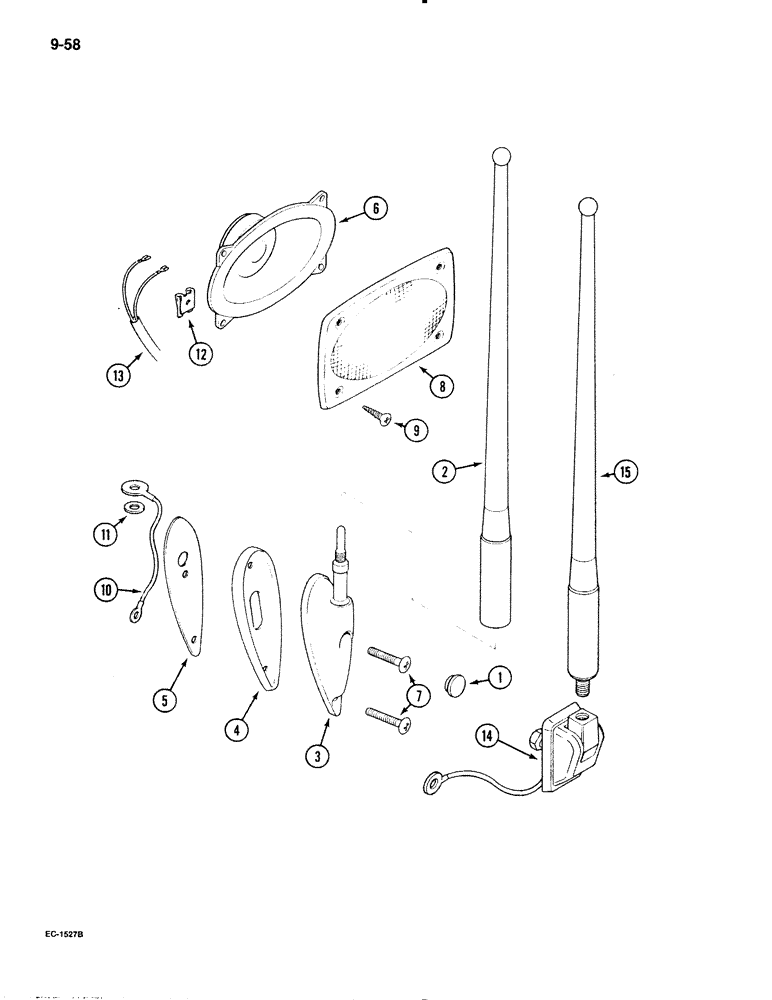

Запчасти Case IH 595 (9-058) - CAB, RADIO LOUDSPEAKER AND ANTENNA (09) - CHASSIS/ATTACHMENTS

1328311C91

ANTENNA

- complete, Includes: Ref. 1 - 5

1шт.

1

1328286C1

CAP

1шт.

2

NSS

NOT SOLD SEPARAT

ANTENNA - rubber

1шт.

3

1328283C1

SUPPORT

SOCKET - antenna

1шт.

4

1328287C1

SEAL

- antenna

1шт.

5

NSS

NOT SOLD SEPARAT

SUPPORT - antenna

1шт.

6

1134011R1

SPEAKER

LOUDSPEAKER

2шт.

7

905733R1

SELF-TAP SCREW,Oval Hd, M4.2 x 32

SCREW - tapping, oval cross recess, 4.2 x 32 mm

2шт.

8

1332317C1

GRILLE

- speaker, Audiovox (Set of 2 parts)

1шт.

8

1328281C2

GRILLE

- speaker, Phillips (Set of 2 parts)

1шт.

9

774-14219

SELF-TAP SCREW,Pozidrive, Pan HD, M3.9 x 1.3 x 19mm

SCREW - tapping, oval head, 3.9 x 19 mm

8шт.

10

1328285C1

CABLE

- antenna ground

1шт.

11

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - serrated lock, 8 mm

1шт.

12

3234214R1

SPRING NUT

- spring, push-on

8шт.

13

1332277C1

HARNESS

- radio and speaker

1шт.

14

1987511C1

ANTENNA

- complete, Includes: Ref. 15

1шт.

15

1987540C1

ANTENNA

1шт.
