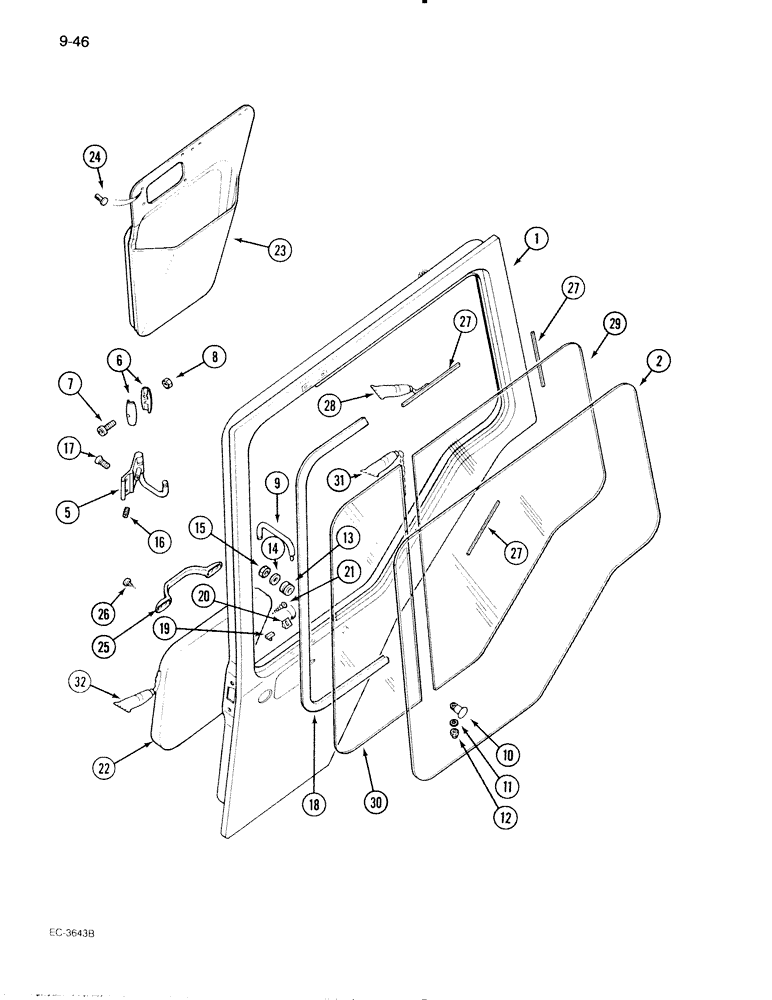

Запчасти Case IH 595 (9-046) - CAB, DOORS, WINDOWS AND TRIM (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (With air conditioning) (See Figure 9-36), Includes: Ref. 1 - 31 and stays

1шт.

REF

INSTRUCTION

CAB - complete with trim (Without air conditioning)(See Figure 9-36A), Includes: Ref. 1 - 31 and stays

1шт.

1

1330714C93

DOOR ASSY.

DOOR ASSEMBLY - left hand (See Figure 9-42), Includes: Ref. 5 - 15

1шт.

1

1330729C93

DOOR ASSY.

DOOR ASSEMBLY - right hand (See Figure 9-42), Includes: Ref. 5 - 15

1шт.

2

1975195C1

GLASS

- door (Fixed non-venting type)

2шт.

3234145R91

HANDLE

STAY - window, left hand

1шт.

3234146R91

HANDLE

STAY - window, right hand

1шт.

5

NSS

NOT SOLD SEPARAT

HINGE - window stay

1шт.

6

3233687R1

SHELL

HANDLE - window stay

2шт.

7

3233325R1

HEX SOC SCREW,M6 x 20mm, Cl 8.8

- cap, hex socket, 6 x 20 mm

1шт.

8

3233324R1

NUT,M6 x 1, Cl 8

NUT - hex lock, 6 mm

1шт.

9

NSS

NOT SOLD SEPARAT

ROD - window stay

1шт.

10

3233678R1

SCREW

BOLT - special, window stay

1шт.

11

3232883R1

WASHER

WASHER - plain, 8 mm

1шт.

12

3233290R1

NUT

- hex crown, 8 mm - 1.25

1шт.

13

3233670R1

GROMMET

- window

1шт.

14

3233328R1

WASHER,M17

- flat, 17 mm

1шт.

15

3233326R1

THIN NUT,Thin, M16 x 1.5, Cl 04

- hex, 6 mm

1шт.

16

3402994R1

SCREW

- headless, set 5 x 10 mm

1шт.

17

905926R1

SCREW,#6 - 16

- countersunk, flat cross recess, 6 x 16 mm

4шт.

18

3234056R2

SEAL

STRIP - sealing, 1345 mm

2шт.

19

3233689R2

PAD, RUBBER

PAD - rubber

4шт.

20

3233675R2

SUPPORT

RETAINER - window

8шт.

21

905927R1

SELF-TAP SCREW,Pan Hd, M3.5 x 9.5

SCREW - tapping, round cross recess, 3.5 x 9.5 mm

8шт.

22

3234123R3

DOOR COVER

COVER - left hand door

1шт.

22

3234124R3

FOAM

COVER - right hand door

1шт.

23

3234127R2

POCKET

- right hand door, Serial Range: (Optional-3234124R3)

1шт.

24

3404078R1

PLUG

- pin, 6 OD x 13.5 mm

4шт.

25

3234209R1

HANDLE

- door

2шт.

26

905928R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW - tapping, round cross recess, 4.2 x 22 mm

8шт.

27

P741441

SPACER

- bonded glass

10шт.

28

3404053R91

PACKAGE

KIT - service, glass installation

1шт.

29

3233051R1

GLASS

- door

2шт.

30

3233053R1

GLASS

- door

2шт.

31

3405451R91

GASKET MAKER FLUID

PACKAGE - repair, for silicon hinge (Order B17576)

1шт.

32

1332211C1

GLUE

ADHESIVE - flexible

1шт.
