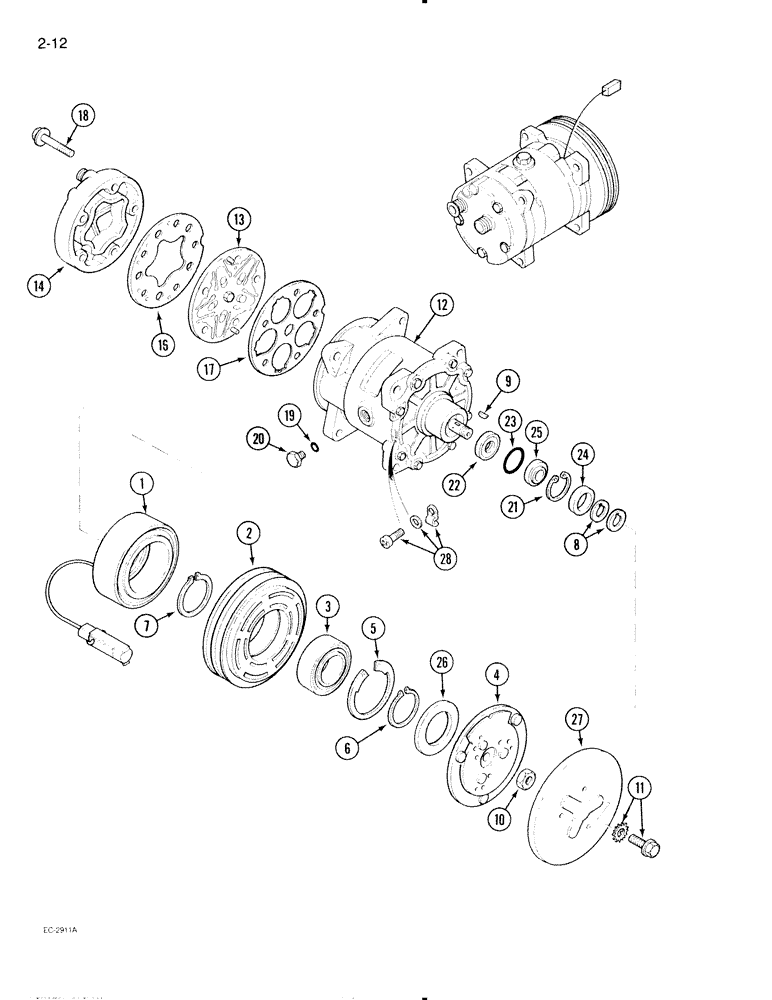

Запчасти Case IH 595 (2-12) - AIR CONDITIONING, FREON COMPRESSOR (02) - ENGINE
№
Артикул
Название
Примечание
Количество
97204C1
COMPRESSOR
- freon, Includes: Ref. 1 - 28
1шт.
97204C1R
COMPRESSOR
Reman compressor
1шт.
97204C1C
COMPRESSOR
Return Number
1шт.
1977959C1R
REMAN-A/C COMPRESSOR
Reman For New PN 97204C1
1шт.
1977959C1C
CORE-A/C COMPRESSOR
Return Number
1шт.
83935C1
CLUTCH
- compressor, complete, Includes: Ref. 1 - 11
1шт.
1
NSS
NOT SOLD SEPARAT
COIL - field, 12 volt
1шт.
2
NSS
NOT SOLD SEPARAT
PULLEY - drive, two groove, Includes: Ref. 3
1шт.
3
NSS
NOT SOLD SEPARAT
BEARING - pulley
1шт.
4
NSS
NOT SOLD SEPARAT
PLATE - front
1шт.
5
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
A49673
KIT
- service, clutch, Includes: Ref. 6 - 11
1шт.
6
NSS
NOT SOLD SEPARAT
RING - snap, pulley
1шт.
7
NSS
NOT SOLD SEPARAT
RING - snap, clutch
1шт.
8
NSS
NOT SOLD SEPARAT
SHIM - clutch
1шт.
9
A49671
KEY
- shaft, compressor
1шт.
10
NSS
NOT SOLD SEPARAT
NUT - retainer
1шт.
11
NSS
NOT SOLD SEPARAT
SCREW - retainer
1шт.
12
NSS
NOT SOLD SEPARAT
BLOCK - compressor
1шт.
13
NSS
NOT SOLD SEPARAT
PLATE - valve
1шт.
14
1958959C1
COVER
HEAD - cylinder, Includes: Ref. 16, 17
1шт.
A49668
GASKET KIT
KIT - service, valve plate gaskets, Includes: Ref. 16 and 17
1шт.
16
NSS
NOT SOLD SEPARAT
GASKET - cylinder head
1шт.
17
NSS
NOT SOLD SEPARAT
GASKET - cylinder
1шт.
18
A49669
SCREW,Cylinder
BOLT - hex, flanged head
5шт.
19
A49666
O-RING
1шт.
20
A49667
PLUG
- oil filler
1шт.
A49665
SEAL KIT
KIT - service, compressor seals, Includes: Ref. 21 - 24
1шт.
21
A49664
CIRCLIP
RING - retaining
1шт.
22
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - housing
1шт.
24
NSS
NOT SOLD SEPARAT
RING - felt
1шт.
25
NSS
NOT SOLD SEPARAT
SEAT - seal, shaft
1шт.
26
A49674
BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm
COVER - dust, bearing
1шт.
27
1958961C1
COVER
- dust, clutch
1шт.
28
NSS
NOT SOLD SEPARAT
CLAMP - lead wire
1шт.
Выбрано товаров: 36
