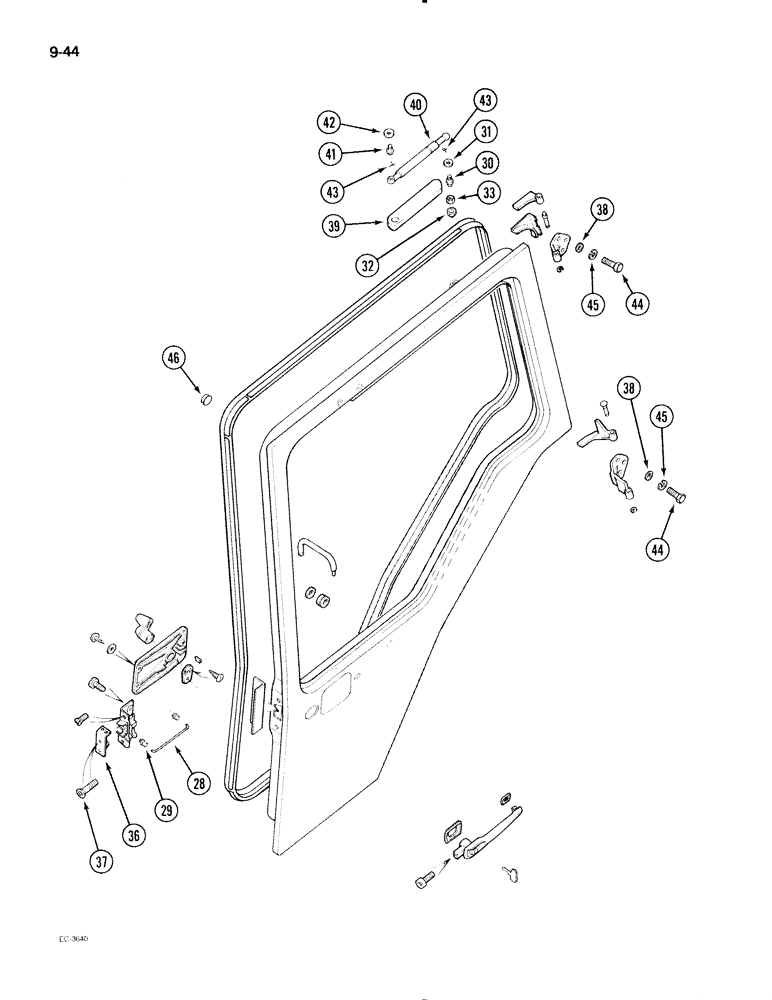

Запчасти Case IH 595 (9-044) - CAB, DOORS (09) - CHASSIS/ATTACHMENTS
45
43
28
46
45
38
36
33
44
39
42
32
43
44
37
41
29
30
40
31
38
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
DOOR ASSEMBLY - left (Continued from Figure 9-42), Includes: Ref. 28 - 33
1шт.
REF
INSTRUCTION
DOOR ASSEMBLY - right (Continued from Figure 9-42), Includes: Ref. 28 - 33
1шт.
37
931860R1
HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8
- countersunk, hex socket, 8 x 20 mm
4шт.
44
626-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
- hex, 8 mm - 1.25 x 25 mm, class 10.9
12шт.
