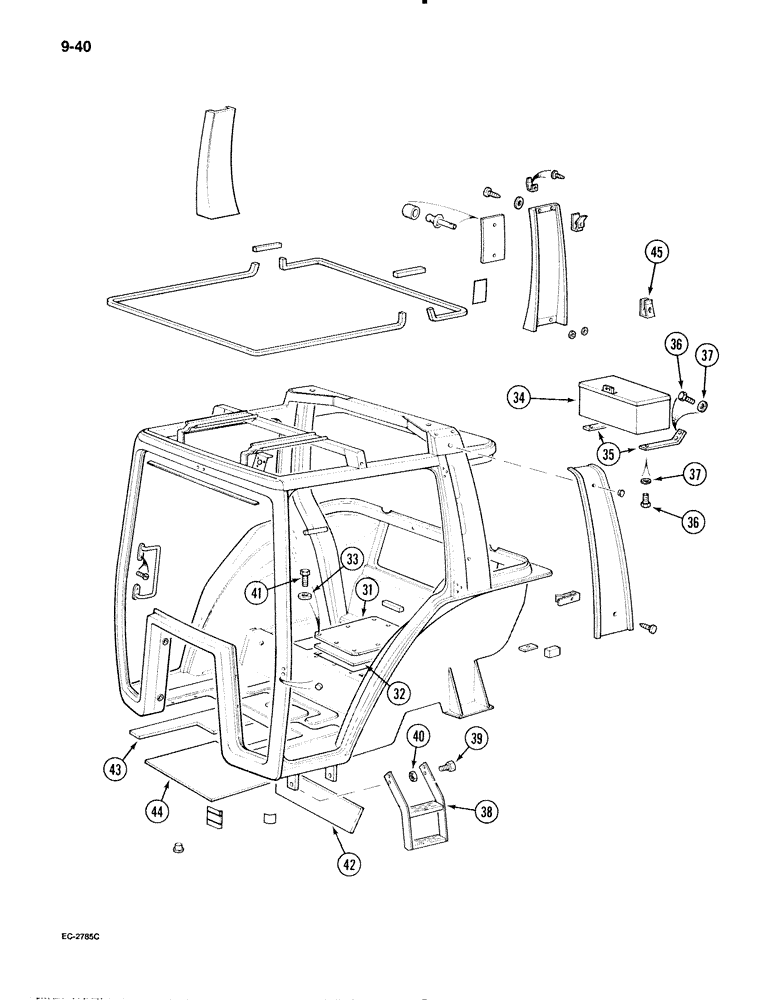

Запчасти Case IH 595 (9-040) - CAB, FRAME (09) - CHASSIS/ATTACHMENTS

1536044C1

PANEL ASSY.

PANEL ASSEMBLY - seat deck, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

CAB - complete with trim (Without air conditioning)(See Figure 9-36A), Includes: Ref. 1 - 29

1шт.

32

1536045C1

INSULATOR

- panel

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

34

1536072C1

BOX, TOOL

BOX - tool

1шт.

A181436

TOOL BOX

BOX - tool, non cab

1шт.

35

88015C1

SUPPORT

BRACKET - toolbox mounting

2шт.

36

615-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 20 mm

6шт.

37

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.4 x 12.5 x 1.6 mm

6шт.

38

82973C1

STEP

ASSEMBLY - right

1шт.

38

82972C1

STEP

ASSEMBLY - left

1шт.

39

3404199R1

BOLT

BOLT - hex, 10 mm - 1.5 x 27 mm

8шт.

40

100016

NUT,M10 x 1.5, Cl 8

8шт.

41

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

4шт.

42

1536048C3

LINING

INSULATOR - heelboard

1шт.

43

1536050C2

LINING

INSULATOR - footwell side, left

1шт.

43

1536051C2

LINING

INSULATOR - footwell side, right

1шт.

44

1536049C2

LINING

INSULATOR - footwell centre

1шт.

45

3234185R1

THREADED INSERT

- push type, monitor bracket

2шт.

A181434

SUPPORT

1шт.
