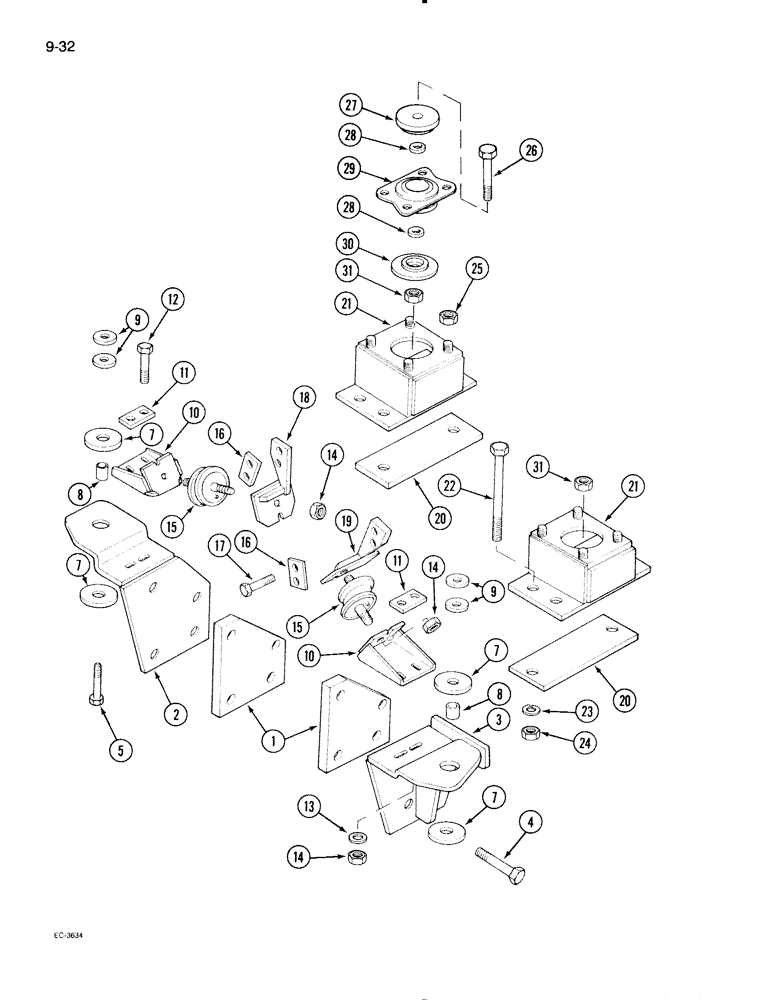

Запчасти Case IH 595 (9-032) - CAB MOUNTINGS (09) - CHASSIS/ATTACHMENTS

1

3129865R2

SPACER

- front Iso-mounts (prior to pin JJE0013400)

2шт.

2

3129860R3

BRACKET

ASSEMBLY -right, front Iso-mounts (prior to pin JJE0013400)

1шт.

3

3129859R3

SUPPORT

BRACKET ASSEMBLY - left, front Iso-mounts (prior to pin JJE0013400)

1шт.

4

1970963C1

BOLT,Hex, M12 x 75mm, Cl 10.9

BOLT - hex, 3/4 NC x 2-1/2 inch, grade 8, front Iso-mounts (prior to pin JJE0013400)

8шт.

5

828-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 mm - 1.75 x 75 mm, front Iso-mounts (prior to pin JJE0013400)

2шт.

7

3399962R1

WASHER

DAMPER - front Iso-mounts (prior to pin JJE0013400)

4шт.

8

3399956R3

SPACER

- (Order 3399952R2), front Iso-mounts (prior to pin JJE0013400)

2шт.

9

3399953R3

WASHER

- spacer, front Iso-mounts (prior to pin JJE0013400)

1шт.

10

3399416R2

SUPPORT

-front Iso-mounts (prior to pin JJE0013400)

2шт.

11

3399415R1

PLATE

- retaining, front Iso-mounts (prior to pin JJE0013400)

2шт.

12

813-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm, front Iso-mounts (prior to pin JJE0013400)

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Front Iso-mounts (prior to pin JJE0013400) M13.5 x 24.5 x 3, HT

4шт.

14

905210R1

NUT,M12 x 1.75, Cl 8

NUT - hex lock, 12 mm - 1.75, front Iso-mounts (prior to pin JJE0013400)

8шт.

15

3399959R1

RUBBER MOUNTING

DAMPER - front Iso-mounts (prior to pin JJE0013400)

2шт.

16

3399417R2

PLATE

- retaining, front Iso-mounts (prior to pin JJE0013400)

2шт.

17

30236R1

BOLT,M14 x 40mm, Cl 8.8

- hex, 14 mm - 2.00 x 40 mm, front Iso-mounts (prior to pin JJE0013400)

4шт.

18

3399404R2

BRACKET

ASSEMBLY - front right, Iso-mounts (prior to pin JJE0013400)

1шт.

19

3399403R2

BRACKET

ASSEMBLY - front left, Iso-mounts (prior to pin JJE0013400)

1шт.

20

1500903C3

PLATE

- front axle , rear Iso-mounts

2шт.

21

91863C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - rear iso-mount

2шт.

22

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

Rear Iso-mounts Hex, 5/8"-11 x 8", G5

4шт.

23

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, , Rear ISO mounts 5/8"

4шт.

24

425-1010

NUT,5/8"-11, G5

Rear Iso-mounts 5/8"-11, G5

4шт.

25

100016

NUT,M10 x 1.5, Cl 8

Rear ISO Mounts M10, Cl 8

8шт.

26

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8, rear Iso-mounts

2шт.

27

3116801R1

CUP WASHER

WASHER - cone, rear Iso-mounts

2шт.

28

3048473R2

WASHER

- centralizing, rear Iso-mounts

2шт.

29

1502231C91

RUBBER MOUNTING

rubber, rear, rear Iso-mounts

2шт.

30

3116148R1

WASHER

- rebound, rear Iso-mounts

2шт.

31

3100765R2

LOCK NUT

- hex, 5/8 inch NC, Philidas lock, rear Iso-mounts

2шт.
