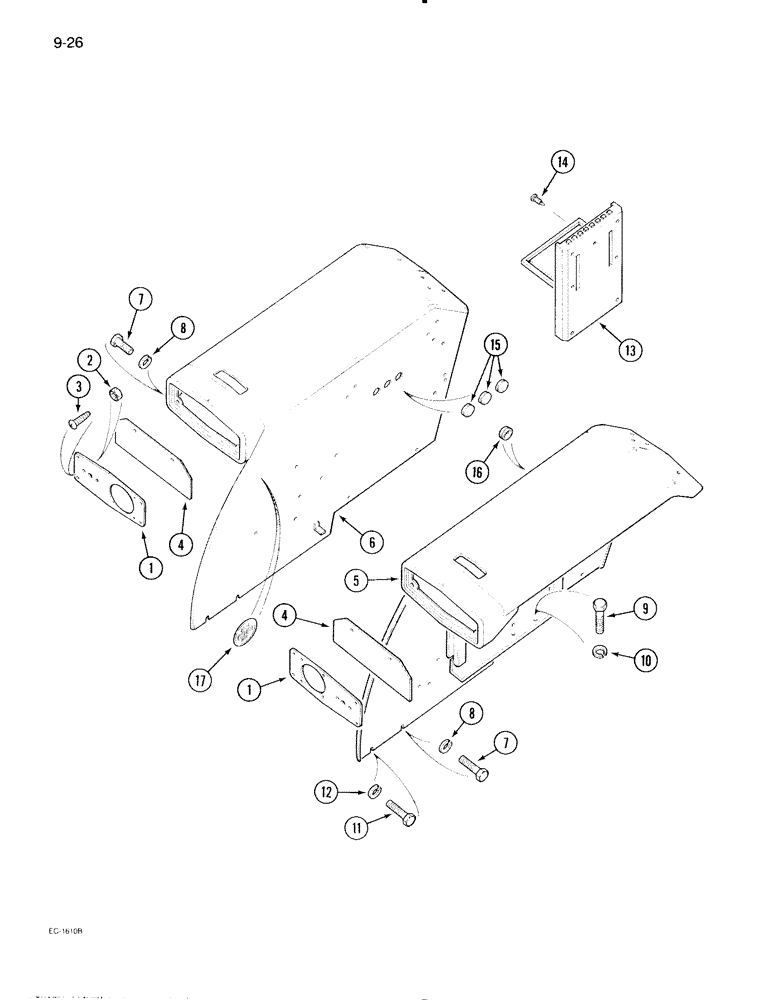

Запчасти Case IH 595 (9-026) - REAR FENDERS, FLAT TOP (09) - CHASSIS/ATTACHMENTS

1

1536059C1

PANEL

- light housing, front (See Figure 4-08)

2шт.

2

3123653R1

NUT

- captive, No. 6, type AB

8шт.

3

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW - tapping, pan head Phillips, No. 6-20 x 1/2 inch

8шт.

4

3123654R1

SHIELD

- weather

2шт.

5

1536064C1

FENDER ASSY.

FENDER ASSEMBLY - hi-flat top, left

1шт.

REF. #5: 1536064C1 FENDER ASSY (HI-FLAT TOP, LEFT). ORDER P/N 1536064C4. SPACER-P/N 531014R2-NOW ORDERED SEPARATELY; NO LONGER FURNISHED AS PART OF FENDER ASSY.

1шт.

5

1536062C1

FENDER ASSY.

FENDER ASSEMBLY - extra hi-flat top, left

1шт.

REF. #5: 1536062C1 FENDER ASSY (EXTRA HI-FLAT TOP, LEFT). ORDER P/N 1536062C4. SPACER-P/N 531014R2-NOW ORDERED SEPARATELY; NO LONGER FURNISHED AS PART OF FENDER ASSY.

1шт.

5

1536066C1

FENDER ASSY.

FENDER ASSEMBLY - lo-flat top, left

1шт.

REF. #5: 1536066C1 FENDER ASSY (LO-FLAT TOP, LEFT). ORDER P/N 1536066C4. SPACER-P/N 531014R2-NOW ORDERED SEPARATELY; NO LONGER FURNISHED AS PART OF FENDER ASSY.

1шт.

6

1536065C1

FENDER ASSY.

FENDER ASSEMBLY - hi-flat top, right

1шт.

REF. #6: 1536065C1 FENDER ASSY (HI-FLAT TOP, RIGHT). ORDER P/N 1536065C3. SPACER-P/N 531014R2-NOW ORDERED SEPARATELY; NO LONGER FURNISHED AS PART OF FENDER ASSY.

1шт.

6

1536063C1

FENDER ASSY.

FENDER ASSEMBLY - extra hi-flat top,right

1шт.

REF. #6: 1536063C1 FENDER ASSY (EXTRA HI-FLAT TOP, RIGHT). ORDER P/N 1536063C3. SPACER-P/N 531014R2-NOW ORDERED SEPARATELY; NO LONGER FURNISHED AS PART OF FENDER ASSY.

1шт.

6

1536067C1

FENDER ASSY.

FENDER ASSEMBLY - lo-flat top, right

1шт.

REF. #6: 1536067C1 FENDER ASSY (LO-FLAT TOP, RIGHT). ORDER P/N 1536067C3. SPACER-P/N 531014R2-NOW ORDERED SEPARATELY; NO LONGER FURNISHED AS PART OF FENDER ASSY.

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

11

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

T104294

BOX

- operators manual storage

1шт.

14

A162364

FASTENER

- panel

3шт.

15

99964C1

PLUG

- blanking

6шт.

16

531625R1

GROMMET

- rubber

2шт.

17

REF

INSTRUCTION

DECAL - speed chart, mph (See Figure 9-132)

1шт.
