Запчасти Case IH 595 (9-020) - INSTRUMENT HOUSING, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

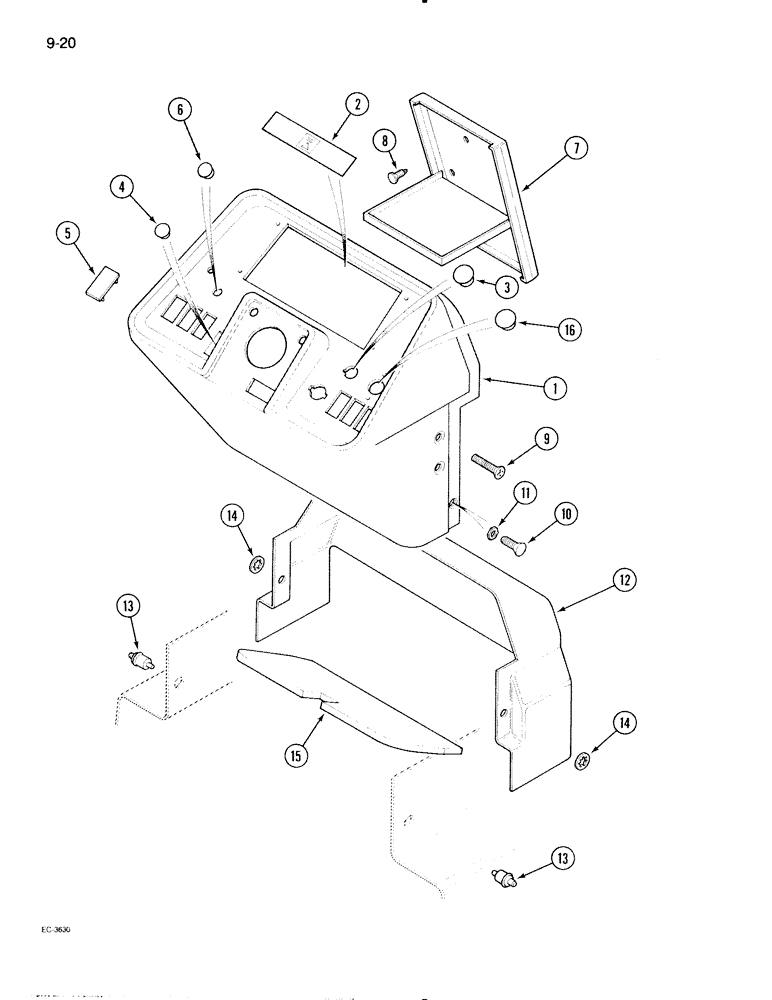

Схема запчастей Case IH 595 - (9-020) - INSTRUMENT HOUSING, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS
4
14
9
3
2
11
12
16
7
1
6
8
13
14
15
13
10
5

Артикул

Название

Примечание

Количество

1

1536949C1

PANEL, INSTRUMENTS

HOUSING - instrument panel, rear, Includes: Ref. 2

1шт.

2

321-6770

DECAL

- warning, PTO overspeed, English

1шт.

2

321-6781

DECAL

- warning, PTO overspeed, French

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

Blanking (Horn switch) Dome, 1.000" hole, Nylon

1шт.

4

1500083C1

PLUG

- blanking

1шт.

5

245918C1

LENS

PLUG - blanking (Rocker switches)

1шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

Blanking (2 speed power shift switch) Dome, .500" hole, Nylon

1шт.

7

97079C2

BOX

- operators manual storage

1шт.

8

A162364

FASTENER

- panel

3шт.

9

3234909R1

SCREW,Hex Flat Hd, M8 x 20, 4.8

- flat, cross recess, 8 mm x 20 mm

4шт.

10

3399135R1

SCREW

- camloc

2шт.

11

3399136R1

NUT

- hex, 12 mm

2шт.

12

3234653R1

GUARD

HOUSING - instrument panel, front

1шт.

13

3399133R1

LOCK PIN

PIN - lock

2шт.

14

3399134R1

RING

- retaining

2шт.

15

1536055C1

LINING

INSULATOR - console

1шт.

16

3129927R1

PLUG

- blanking, cigar lighter

1шт.

Выбрано товаров: 17
