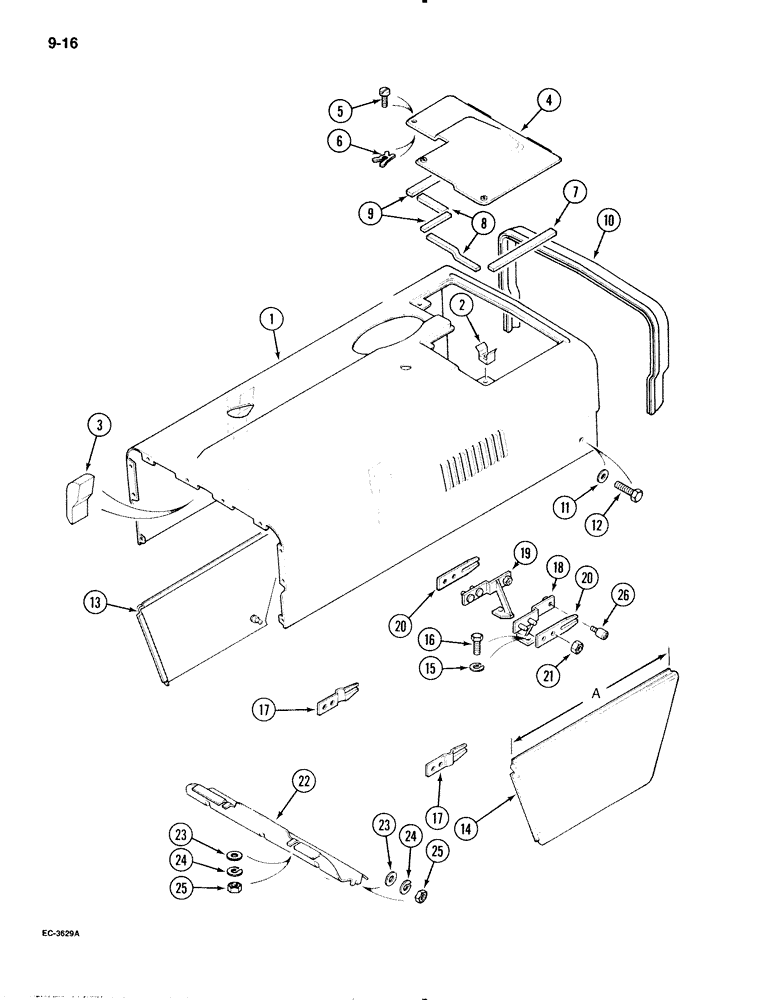

Запчасти Case IH 595 (9-016) - HOOD AND SIDE PANELS, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

1

1536780C3

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust, Includes: Ref. 2 and 3

1шт.

2

1502286C2

NUT,Floating Cage, 5/16"-18

- cage floating, 5/16 inch NC

3шт.

3

98935C1

SEAL

- foam, hood corner

2шт.

4

3129716R91

COVER ASSY

COVER - rear hood, Includes: Ref. 5 - 9

1шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled

3шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled (Optional to 389872R1)

3шт.

6

376787R1

WASHER

- X-type, 0.256 x 0.75 inch

3шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10 inch (Cut from 73211C1)

1шт.

7

73211C1

GASKET

SEAL - bulk length

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 5.5 inch (Cut from 73211C1)

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 4 inch (Cut from 73211C1)

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 45.7 inch (Cut from 1265280C1)

1шт.

10

1265280C1

SEAL

- rubber, bulk length, 4 foot roll (Order 3121645R1)

1шт.

11

98775C1

WASHER

- flat, 5/16 inch, painted black

2шт.

12

98778C1

BOLT

- hex, 5/16 inch NC, painted black

2шт.

Ref # 12. In this area on the inside of the hood there is a rubber mt. see steering wheel Figure 5-04 item no. 15, part no. 3129866r1. CAM

1шт.

13

1970607C1

PANEL

ASSEMBLY - side, right (Dimension A: 23 inch) (Order 1539000C1)

1шт.

14

1970608C1

PANEL

ASSEMBLY - side, left (Dimension A: 23 inch) (Order 1539000C1)

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

17

1333180C1

CLIP

- side panel, front

2шт.

18

1333184C2

SUPPORT

- side panel, left

1шт.

19

1333183C2

SUPPORT

- side panel, right

1шт.

20

1333181C1

CLIP

- side panel, rear

2шт.

21

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

8шт.

22

3121397R2

BAFFLE

ASSEMBLY - upper air

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

25

825-1406

NUT,M6, Cl 8

4шт.

26

104074A1

STOP

- side panels

2шт.
