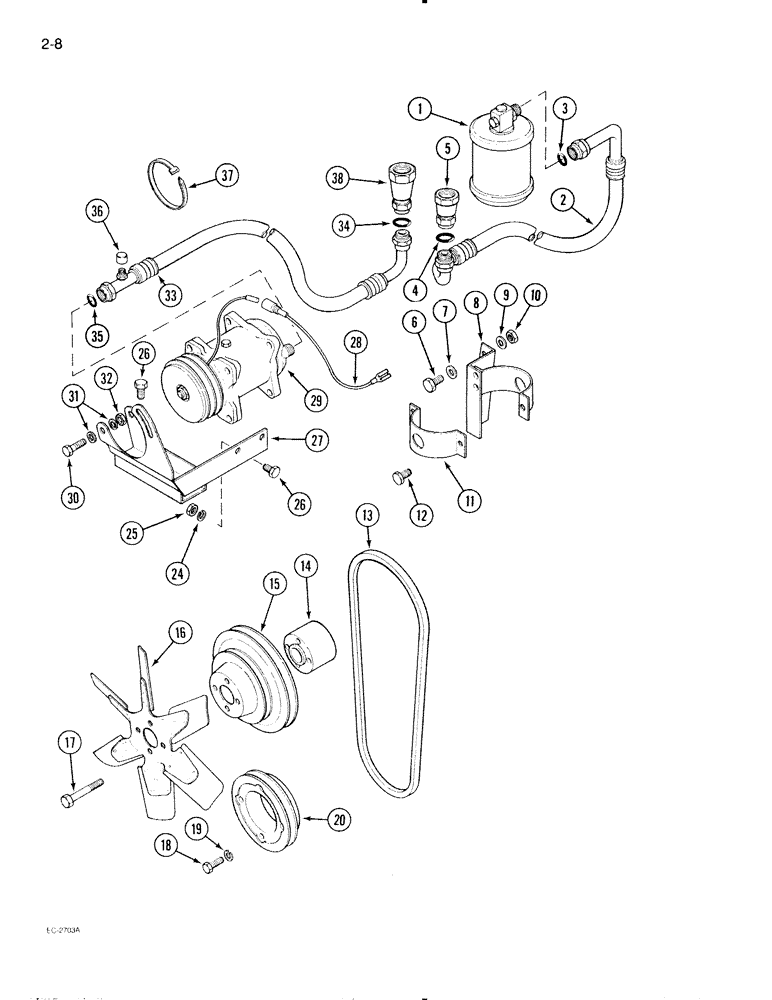

Запчасти Case IH 595 (2-08) - AIR CONDITIONING, COMPRESSOR AND CONNECTIONS (02) - ENGINE

1

118304C2

RESERVOIR

RECEIVER - dryer

1шт.

1

118304C2GV

RECEIVER-DRYER

RECEIVER - dryer

1шт.

2

98014C3

HOSE

-, Serial Range: receiver-cab

1шт.

3

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

4

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

Ref #4, use 189819A1 for use on air conditioned models only.

1шт.

5

117771C1

COUPLING,1" - 20 NPT x 7/8" - 20 NPT

COUPLING - half, female

1шт.

6

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

- hex, 8 mm - 1.25 x 20 mm

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

98094C2

SUPPORT

- receiver

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

11

3405695R1

CLAMP

- receiver/dryer

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6mm - 1.00 x 25 mm

2шт.

12

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

- hex, 6mm - 1.00 x 30 mm

1шт.

13

84657C1

V-BELT,0.50" W x 67.00" L

V-BELT, , Freon Compressor 0.50" W x 67.00" L

1шт.

14

84514C1

SPACER

- pulley (With tropical cooling)

1шт.

14

1547944C1

SPACER

- pulley (Without tropical cooling)

1шт.

15

84624C1

PULLEY

- water pump

1шт.

16

84416C1

FAN

- engine cooling

1шт.

17

433061

BOLT,Hex, 1/4" - 28 x 3 1/4", Gr 5

- hex, 1/4 NF x 3-1/4 inch, grade 5

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

84623C1

PULLEY

- crankshaft

1шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

84485C2

SUPPORT

BRACKET - freon compressor

1шт.

28

1964563C1

CABLE

- air conditioning compressor adaptor

1шт.

29

97204C1

COMPRESSOR

- freon (See Figure 2-12)

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

29

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

29

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

31

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

6шт.

32

329-106

NUT,3/8"-16, G8

3шт.

33

98015C2

HOSE

- cab base to compressor, Includes: Ref. 34 - 36

1шт.

34

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

Ref #34, use 189818A1 for use on air conditioned models only. Branko (t/s547/94C)

1шт.

35

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

36

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

37

533959R1

CABLE TIE,.135" x 11"

STRAP - cable

2шт.

38

1280492C1

PUSH-PULL COUPLING

COUPLING - half, female

1шт.
