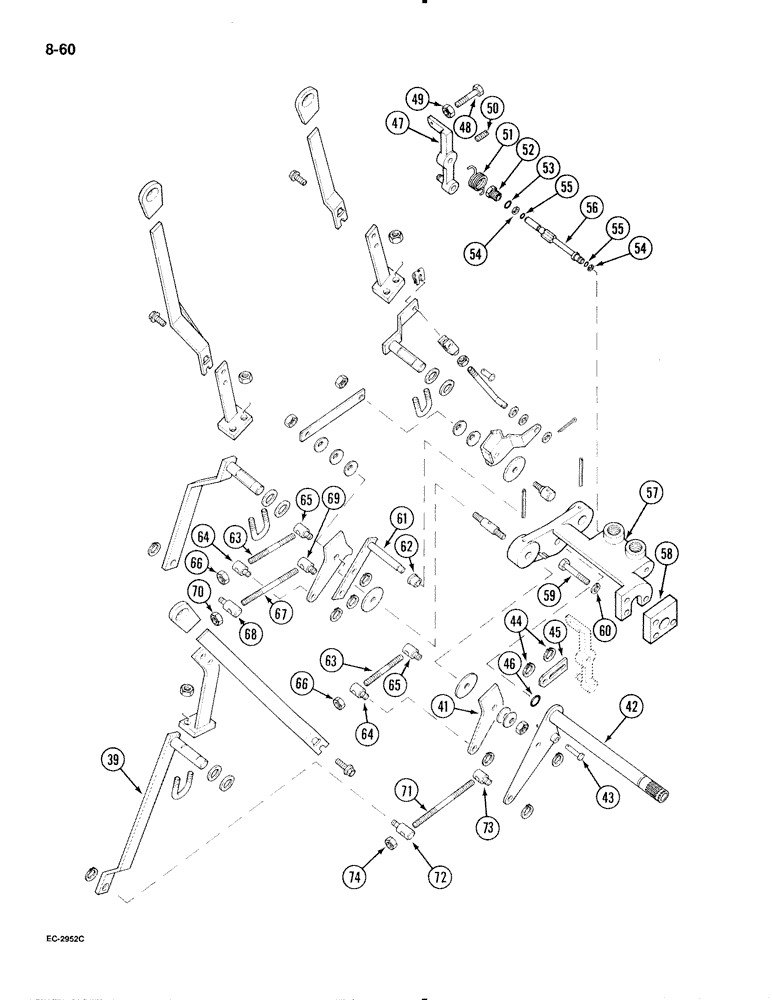

Запчасти Case IH 595 (8-60) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE, WITH CAB (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
39
3129738R1
SHAFT ASSY.
SHAFT - position control
1шт.
41
3118010R1
LEVER
- position control
1шт.
42
1500628C1
SHAFT ASSY.
SHAFT ASSEMBLY - position control
1шт.
43
527923R1
PIN
- link arm
1шт.
44
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, #X31, .243" Dia, E-Type
2шт.
45
527926R1
LINK
- flow control over-ride
1шт.
46
238-5112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1шт.
47
529353R2
ARM ASSY.
ARM - flow control
1шт.
48
1502037C1
SET SCREW
SCREW - set, hex, 1/4 NC x 1-1/2 inch
1шт.
49
25-144
JAM NUT,Jam, 1/4"-20, G5
- hex, jam, 1/4 NC
1шт.
50
65461C1
SET SCREW
SCREW - 1/4 inch NF, with nylon patch insert
1шт.
51
529352R1
SPRING
- return
1шт.
52
529356R1
PLUG
- variable flow control valve
1шт.
54
529355R1
WASHER
- back-up
2шт.
55
238-5008
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
-008, 70 Duro, .176" ID x .070" Thk
2шт.
56
529351R1
SPOOL
- variable flow control valve
1шт.
57
529349R3
SUPPORT
ASSEMBLY - hitch control shaft
1шт.
58
3129761R1
SPACER
- support assembly
1шт.
59
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex, 3/8 NC x 2-1/2 inch
3шт.
60
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
61
1500632C1
SHAFT ASSY.
SHAFT ASSEMBLY - load control
1шт.
62
374940R1
NYLON BEARING
BEARING - control lever shaft
2шт.
63
400085R1
STUD
- connecting rod hitch link
1шт.
64
400086R1
PIN
- connecting hitch link front
1шт.
65
400087R1
PIN
- connecting hitch link rear
1шт.
66
425-146
JAM NUT,3/8" - 16, Gr 5
- hex, jam 3/8 inch NC
1шт.
67
400085R1
STUD
- connecting rod hitch link
1шт.
68
1500634C1
PIN
- connecting hitch link front
1шт.
69
400087R1
PIN
- connecting hitch link rear
1шт.
70
425-146
JAM NUT,3/8" - 16, Gr 5
- hex, jam 3/8 inch NC
1шт.
71
1500635C1
STUD
- hitch link
1шт.
72
1500634C1
PIN
- connecting hitch link front
1шт.
73
400087R1
PIN
- connecting hitch link rear
1шт.
74
425-146
JAM NUT,3/8" - 16, Gr 5
- hex, jam 3/8 inch NC
1шт.
53
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 35
