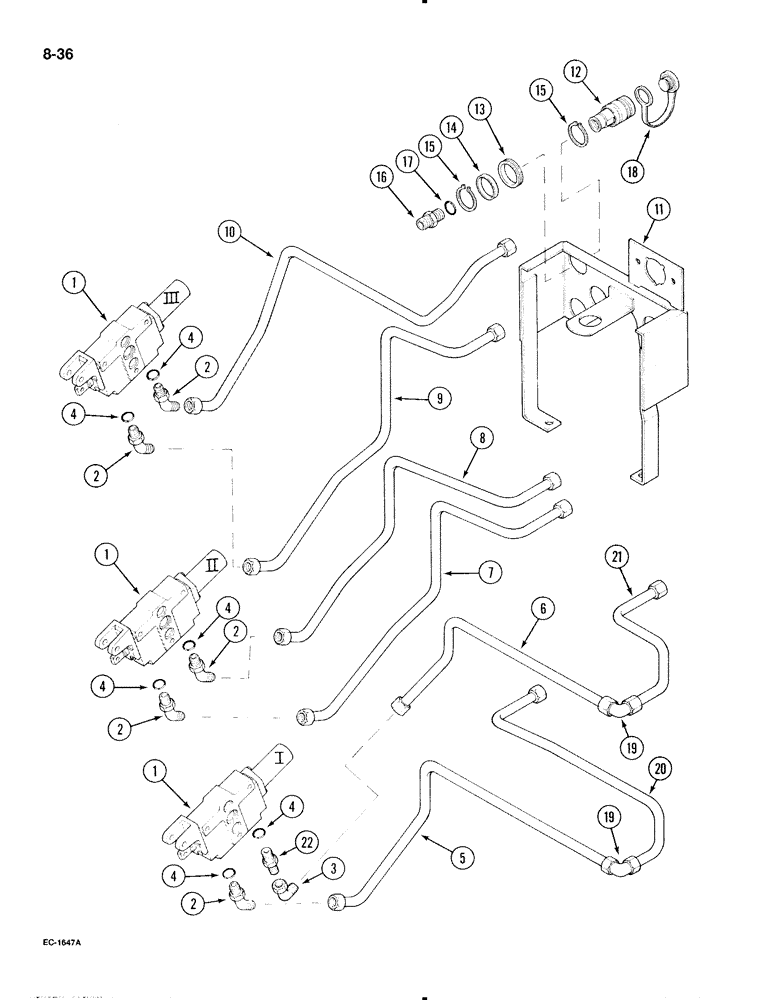

Запчасти Case IH 595 (8-36) - REMOTE AUXILIARY VALVES, FIRST, SECOND AND THIRD BANK TUBES AND COUPLINGS, WITH CAB (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY - double acting, without check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-38)

1шт.

1

1287384C91

VALVE

ASSEMBLY - double acting, with check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-40)

1шт.

2

93636C1

ELBOW

- 45 degree, 7/8 inch NF flare x 22 mm - 1.5

1шт.

3

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flared

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

99637C1

PIPE ASSY.

TUBE ASSEMBLY - 1st bank, front, Serial Range: port-coupling

1шт.

6

99639C3

TUBE

ASSEMBLY - 1st bank, rear, Serial Range: port-coupling

1шт.

7

99640C1

PIPE

TUBE ASSEMBLY - 2nd bank, front, Serial Range: port-coupling

1шт.

8

99641C1

PIPE ASSY.

TUBE ASSEMBLY - 2nd bank, rear, Serial Range: port-coupling

1шт.

9

99635C1

PIPE ASSY.

TUBE ASSEMBLY - 3rd bank, front, Serial Range: port-coupling

1шт.

10

99643C1

PIPE ASSY.

TUBE ASSEMBLY - 3rd bank, rear, Serial Range: port-coupling

1шт.

11

99728C2

SUPPORT

- couplings

1шт.

12

A177478

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

1шт.

13

A139805

RETAINER

- coupling

1шт.

14

94177C1

SPACER

- coupling

1шт.

15

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

K950297

PLUG

- dust, coupling (Order A137135)

1шт.

19

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 5/8 inch OD flared tube

2шт.

20

1500195C1

HYD TUBE,0.625" OD, 438, 186 mm Length

TUBE ASSEMBLY - coupling to 1st bank front port

1шт.

21

1500198C1

PIPE

TUBE ASSEMBLY - coupling to 1st bank rear port

1шт.

22

86165C1

FITTING

UNION - straight, 5/8 inch OD tube x M22

1шт.
