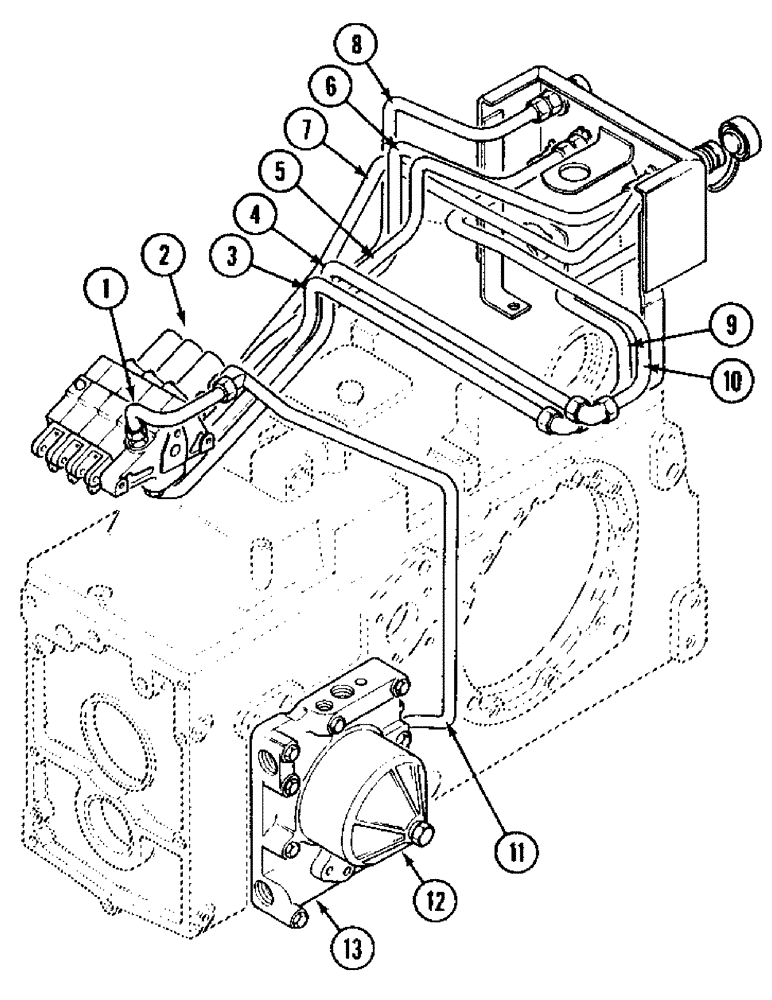

Запчасти Case IH 595 (1-28) - PICTORIAL INDEX, REMOTE AUXILIARY CONTROL VALVES, TRACTOR WITH CAB (00) - PICTORIAL INDEX

1

Remote Auxiliary Valve Return Tube, Page 8-31

1шт.

2

Remote Auxiliary Control Valves, Pages 8-39, 41

1шт.

3

1st Bank Rear Port to Coupling Front Tube, Page 8-37

1шт.

4

1st Bank Front Port to Coupling Front Tube, Page 8-37

1шт.

5

2nd Bank Rear Port to Coupling Tube, Page 8-37

1шт.

6

2nd Bank Front Port to Coupling Tube, Page 8-37

1шт.

7

3rd Bank Rear Port to Coupling Tube, Page 8-37

1шт.

8

3rd Bank Front Port to Coupling Tube, Page 8-37

1шт.

9

1st Bank Rear Port to Coupling Rear Tube, Page 8-37

1шт.

10

1st Bank Front Port to Coupling Rear Tube, Page 8-37

1шт.

11

Multiple Control Valve By-Pass Tube, Page 8-11

1шт.

12

Hydraulic Oil Filter, Page 8-3

1шт.

13

Multiple Control Valve, Page 8-13

1шт.
