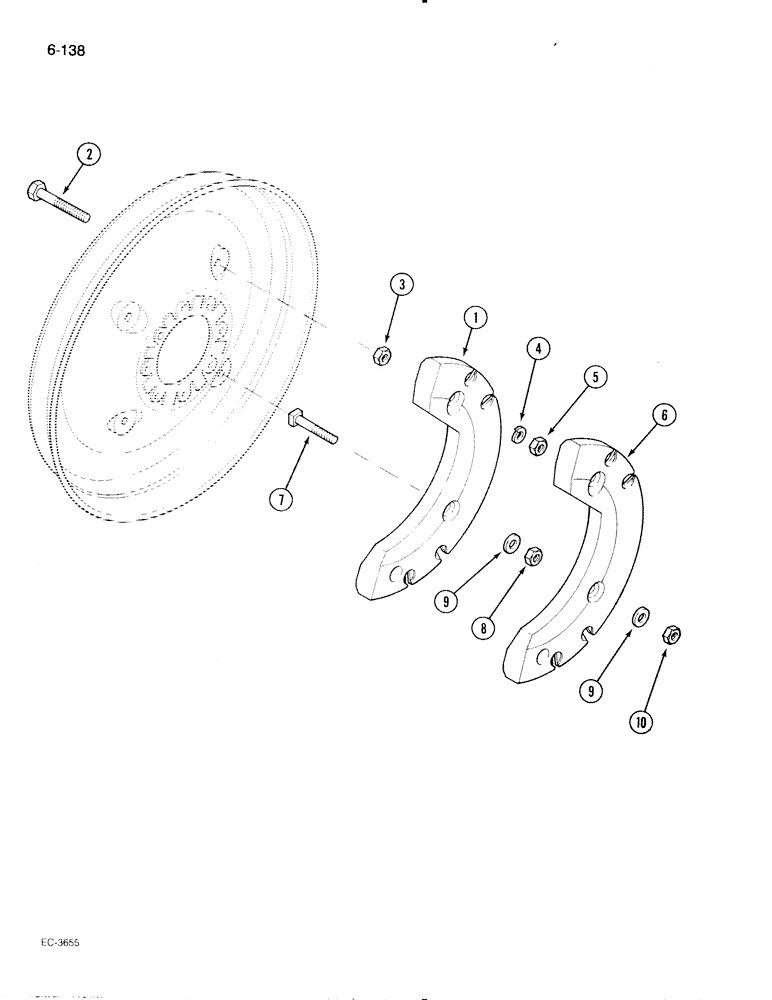

Запчасти Case IH 595 (6-138) - REAR WHEEL WEIGHTS, SPLIT TYPE, BAR TYPE AXLE (06) - POWER TRAIN

1

400078R2

WEIGHT

- rear wheel, 38 or 42" (1st position)

4шт.

2

528340R1

BOLT

BOLT - hex, 3/4 NC x 5-1/4 inch, 38 or 42" wheels (1st position)

8шт.

3

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC, 38 or 42" wheels (1st position)

8шт.

4

492-11075

LOCK WASHER,3/4"

38 or 42" wheels (1st position) 3/4"

8шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, 38 or 42" wheels (1st position)

8шт.

6

400078R2

WEIGHT

- rear wheel, 38 or 42" (2nd or 3rd position)

4шт.

7

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

- square head, 3/4 NC x 3-1/4 inch, 38 or 42" wheels (2nd or 3rd position)

8шт.

8

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC, 38 or 42" wheels (2nd or 3rd position)

8шт.

9

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch, 38 or 42" wheels (2nd or 3rd position)

16шт.

10

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, 38 or 42" wheels (2nd or 3rd position)

8шт.
