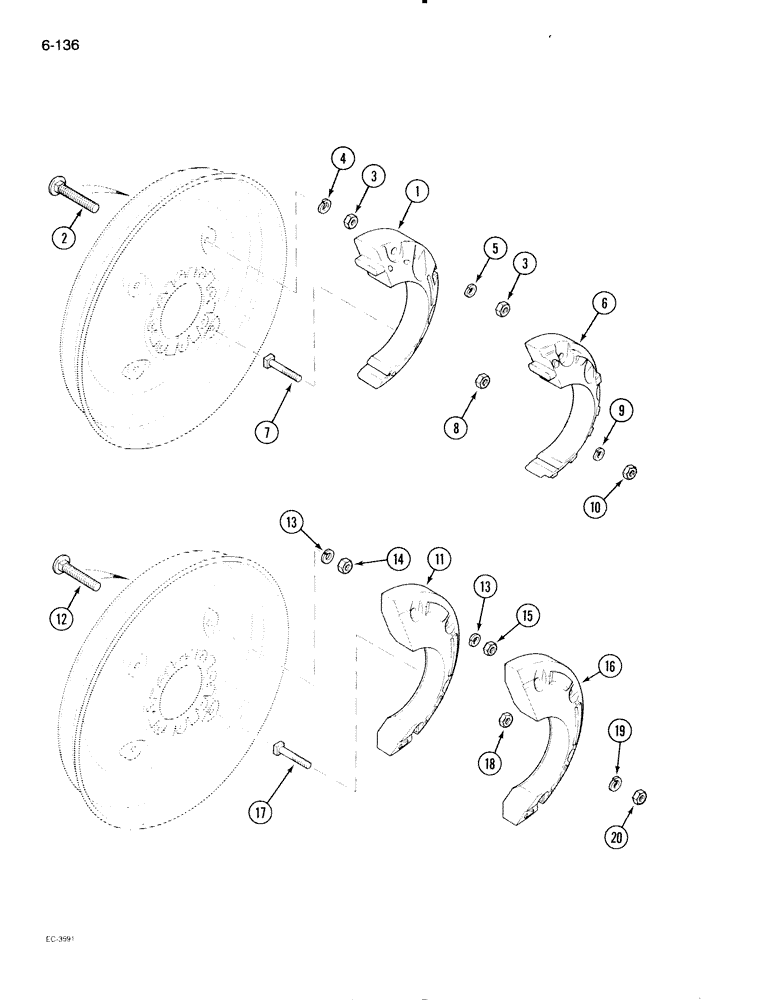

Запчасти Case IH 595 (6-136) - REAR WHEEL WEIGHTS, SPLIT TYPE (06) - POWER TRAIN

1

369509R1

WEIGHT

- rear wheels, 75 lbs., 24 & 26" (1st position)

4шт.

2

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

- rear wheel weight mounting, 24 & 26" (1st position)

8шт.

3

425-1010

NUT,5/8"-11, G5

24 & 26" wheels (1st position) 5/8"-11, G5

16шт.

4

492-21062

LOCK WASHER,5/8"

24 & 26" wheels (1st position) 5/8"

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 & 26" wheels (1st position) 5/8"

8шт.

6

369509R1

WEIGHT

- rear wheels, 75 lbs., 24 & 26" wheels (2nd position)

4шт.

7

369508R1

BOLT,5/8" - 11 x 5 3/4"

- rear wheel weight mounting, 24 & 26" (2nd position)

8шт.

8

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, 24 & 26" wheels (2nd position)

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 & 26" wheels (2nd position) 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

24 & 26" wheels (2nd position) 5/8"-11, G5

8шт.

1

366645R1

WEIGHT

- rear wheel, 75 lbs., 26" Sankey or Nagbol (1st position)

4шт.

2

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

- rear wheel weight mounting, 26" Sankey or Nagbol (1st position)

8шт.

3

425-1010

NUT,5/8"-11, G5

26" Sankey or Nagbol wheels (1st position) 5/8"-11, G5

16шт.

4

492-21062

LOCK WASHER,5/8"

26" Sankey or Nagbol wheels (1st position) 5/8"

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 26" Sankey or Nagbol wheels (1st position) 5/8"

8шт.

6

366645R1

WEIGHT

- rear wheel, 75 lbs., 26" Sankey or Nagbol wheels (2nd or 3rd position)

4шт.

7

366647R1

BOLT,Sq Hd, 5/8" - 11 x 5 1/2"

- rear wheel weight mounting, 26" Sankey or Nagbol (2nd or 3rd position)

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 26" Sankey or Nagbol wheels (2nd or 3rd position) 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

26" Sankey or Nagbol wheels (2nd or 3rd position) 5/8"-11, G5

8шт.

11

365321R2

WEIGHT

- rear wheel, 75 lbs., 28 or 30" ( 1st position)

4шт.

12

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

- carriage, 5/8 NC x 3 inch, 28 or 30" wheels ( 1st position)

8шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 or 30" wheels ( 1st position) 5/8"

16шт.

14

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, 28 or 30" wheels ( 1st position)

8шт.

15

425-1010

NUT,5/8"-11, G5

28 or 30" wheels ( 1st position) 5/8"-11, G5

8шт.

16

365321R2

WEIGHT

- rear wheel, 75 lbs., 28 or 30" ( 2nd position)

4шт.

17

365332R2

SQUARE BOLT

BOLT - rear wheel weight mounting, 28 or 30" ( 2nd position)

8шт.

18

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, 28 or 30" wheels ( 2nd position)

8шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 or 30" wheels ( 2nd position) 5/8"

8шт.

20

425-1010

NUT,5/8"-11, G5

28 or 30" wheels ( 2nd position) 5/8"-11, G5

8шт.
