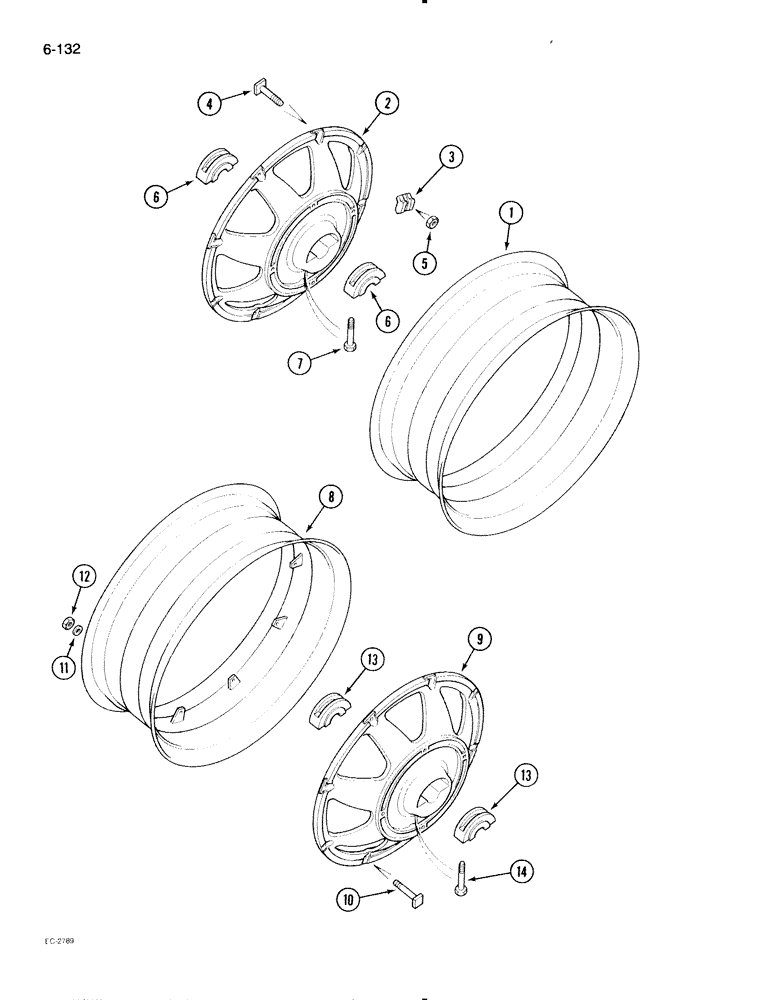

Запчасти Case IH 595 (6-132) - REAR WHEELS, BAR TYPE REAR AXLE, 38 INCH WHEEL (06) - POWER TRAIN

1

A33224

RIM

- wheel, double bevel, WDB12-38 (For 13.6 x 38 tire)

2шт.

2

392415R1

WHEEL

DISC - 5 inch offset

2шт.

3

381725R1

SHIN

CLAMP - Adjustable, wheel rim

12шт.

3

381726R1

SHIN

CLAMP - fixed, wheel rim

4шт.

4

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT - rim clamp

16шт.

5

425-1110

NUT,5/8"-18, G5

16шт.

6

389539R1

CLAMP

- rear wheel hub

4шт.

7

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head

8шт.

1

380869R1

RIM

- wheel, double bevel, WDB14-38 (For 15.5 x 38 tire) (Order A33223)

2шт.

2

392415R1

WHEEL

DISC - 5 inch offset

2шт.

3

381725R1

SHIN

CLAMP - adjustable, wheel rim

12шт.

3

381726R1

SHIN

CLAMP - fixed, wheel rim

4шт.

4

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT - rim clamp

16шт.

5

425-1110

NUT,5/8"-18, G5

16шт.

6

389539R1

CLAMP

- rear wheel hub

4шт.

7

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head

8шт.

8

392714R91

RIM

- wheel, WDB9-42 (For 12.4 x 42 tire), 42"

2шт.

9

388336R1

DISC

- 5 inch offset, 42" wheel

2шт.

10

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT - rim clamp, 42" wheel

16шт.

11

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, 42" wheel

16шт.

12

425-1110

NUT,5/8"-18, G5

42" wheel 5/8"-18, G5

16шт.

13

389539R1

CLAMP

- rear wheel hub, 42"

4шт.

14

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, 42" wheel

8шт.
