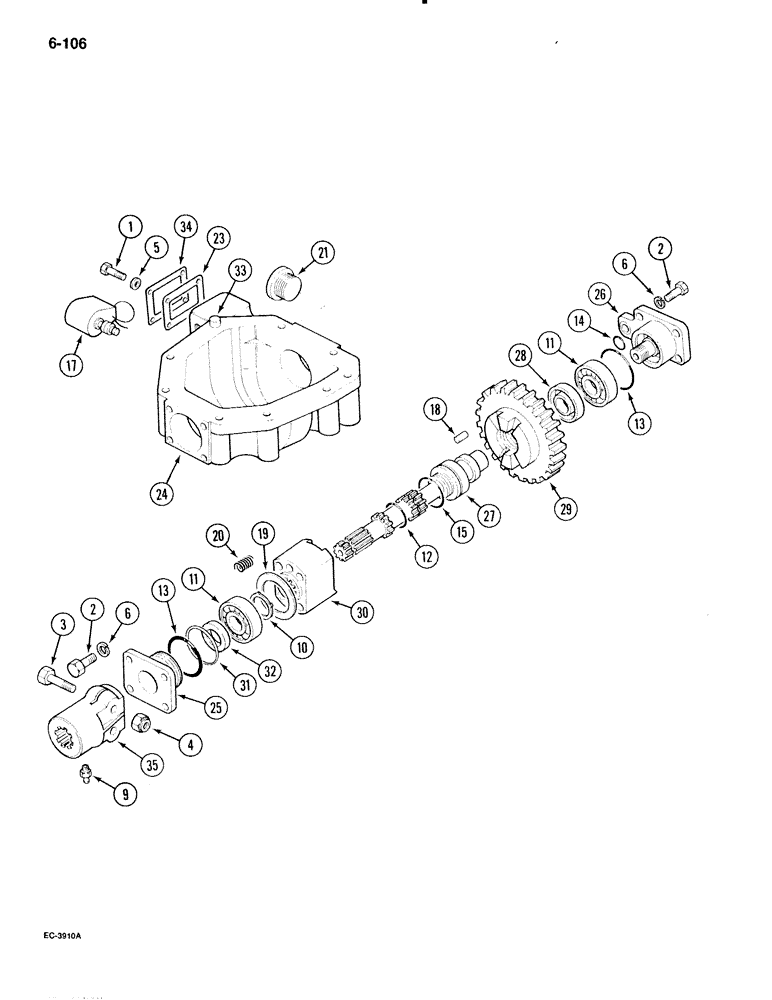

Запчасти Case IH 595 (6-106) - MECHANICAL FRONT DRIVE CARRARO, TRANSFER GEARBOX (06) - POWER TRAIN

1537825C1

TRANSFER BOX

BOX ASSEMBLY - transfer gear, Includes: Ref. 1 - 34

1шт.

1

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 25 mm HH 8.8

8шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

4

905822R1

NUT

- 10 x 1.25 mm

2шт.

5

K261870

WASHER

- spring

4шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

9

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

1шт.

10

100751A1

RING, SNAP

RING - snap

1шт.

11

100742A1

BEARING ASSY

BEARING - ball

2шт.

12

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

- sealing

1шт.

13

100741A1

O-RING

- sealing

2шт.

14

100760A1

O-RING

- sealing

1шт.

15

100747A1

O-RING

- sealing

1шт.

17

100739A1

SOLENOID

VALVE - solenoid

1шт.

18

100746A1

VALVE

- non return

1шт.

19

100750A1

WASHER

- retaining

1шт.

20

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

- pressure

6шт.

21

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain

1шт.

23

100759A1

GASKET

- side cover

1шт.

If looking for an expansion plug that fits in the back of #24 housing, you can try 139312a1. Per print, the nominal size is 6mm. It resembles a rivet.

1шт.

24

100737A1

HOUSING

- transfer gear box

1шт.

25

100757A1

COVER

- front

1шт.

26

100740A1

REAR COVER

COVER - rear

1шт.

27

100745A1

SHAFT

- main gear

1шт.

28

100743A1

THRUST WASHER

WASHER - thrust

1шт.

29

100744A1

PINION

GEAR - transfer 42 teeth

1шт.

30

100749A1

COUPLING

- dog clutch

1шт.

31

100754A1

SHIM

- 0.1 mm

1шт.

31

100755A1

SHIM

- 0.3 mm

1шт.

31

100756A1

SHIM

- 0.5 mm

1шт.

32

100752A1

SEALING RING,32mm ID x 50mm OD x 14mm Thk

- shaft

1шт.

33

100738A1

PIN

- locating

2шт.

34

100758A1

COVER

- side plate

1шт.

35

1537839C1

SPLINED COUPLING,24T

COUPLING - drive shaft

1шт.
