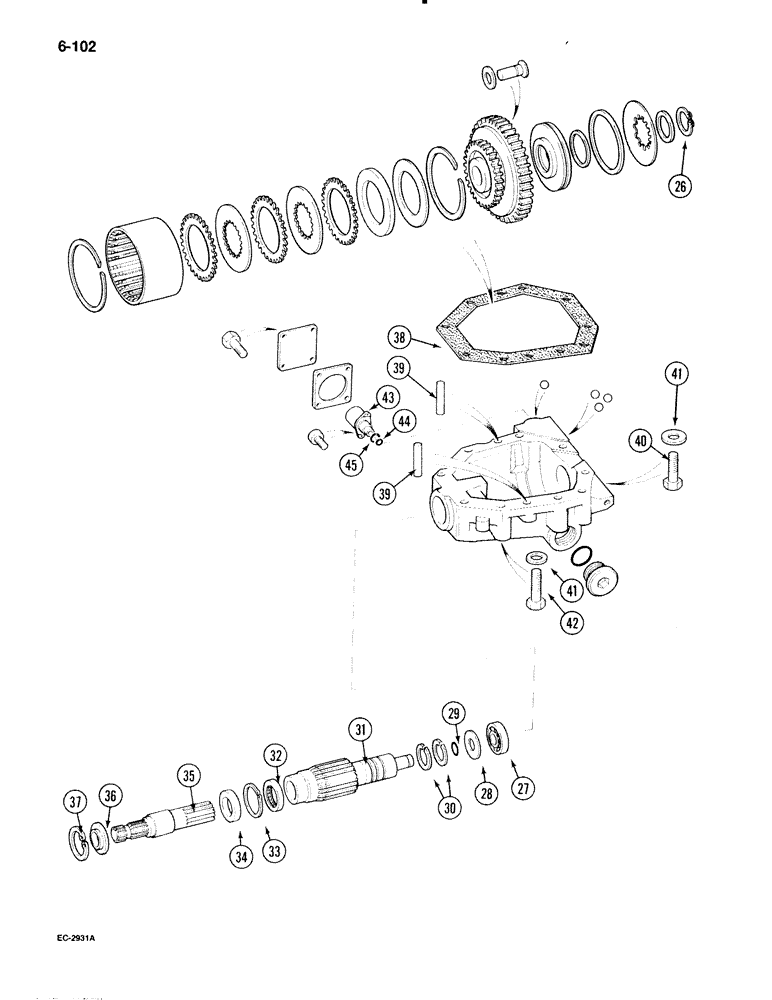

Запчасти Case IH 595 (6-102) - MECHANICAL FRONT DRIVE ZF, TRANSFER GEARBOX (06) - POWER TRAIN

26

933283R1

SNAP RING,M45, Ext

Retaining, external, 40.72 mm

1шт.

27

1536482C1

BEARING, ROLLER, CYL,19.99mm ID x 52mm OD x 15mm W

1шт.

28

81089C2

THRUST WASHER

1шт.

29

81182C3

RING

19 x 1.5 mm

1шт.

30

81191C1

SEALING RING

RING - 35 x 2 mm

2шт.

31

81192C1

SHAFT

Drive

1шт.

32

81093C2

BEARING, ROLLER

1шт.

33

933237R1

SNAP RING,M55, Int

Retaining

1шт.

ref #33 (P/N 933237R1) - 2.165 inches

1шт.

34

81086C2

OIL SEAL,37mm ID x 56mm OD x 10mm Thk

Oil

1шт.

35

81158C2

SHAFT

Output

1шт.

36

81087C2

SNAP RING

RETAINER - output shaft

1шт.

37

934443R1

SNAP RING,M58, Int

Retaining, 61.74 mm

1шт.

38

1970896C1

GASKET

Transfer gear box (Replaces 1970896C2)

1шт.

39

141284

PIN,25.4mm OD x 31.75mm L

Pin

2шт.

40

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

5шт.

41

396-21053

WASHER,17/32" x 1 1/16" x .134"

9шт.

42

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

43

81171C1

VALVE

Solenoid, control, Includes: Ref. 44 and 45

1шт.

44

102459A1

O-RING

13 mm diameter

1шт.

45

102460A1

O-RING,1.5mm Thk x 21mm ID

21 mm diameter

1шт.
