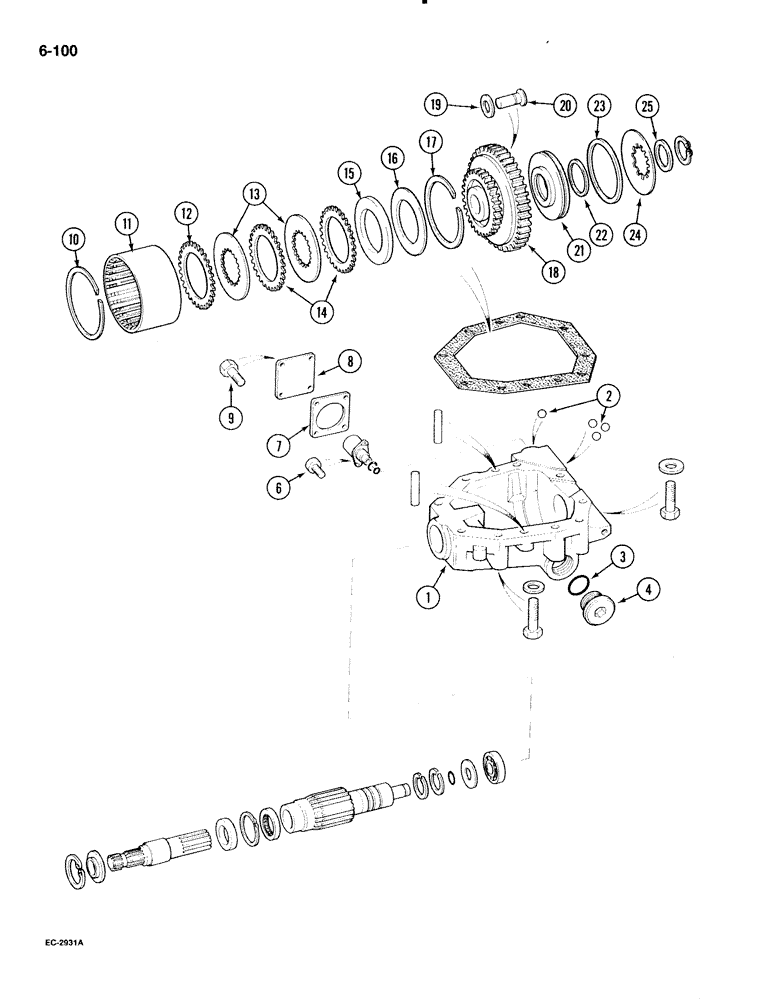

Запчасти Case IH 595 (6-100) - MECHANICAL FRONT DRIVE ZF, TRANSFER GEARBOX (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1343079C1
HOUSING
ASSEMBLY - transfer gear, Includes: Ref. 2
1шт.
2
NSS
NOT SOLD SEPARAT
BALL - 6 mm, class III
4шт.
3
31354R1
O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro
- 32.5 x 2.65 mm
1шт.
4
905476R1
PLUG
- hex socket, 36 mm - 4.00
1шт.
6
930974R1
HEX SOC SCREW,M5 x 10mm, Cl 8.8
SCREW - cap, hex socket, 5 mm - 0.8 x 10 mm
2шт.
7
81172C2
GASKET,0.8mm Thk
- valve cover
1шт.
8
81173C2
COVER
- valve
1шт.
9
613-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, 8 mm - 1.25 x 25 mm
4шт.
10
81190C1
RING, SNAP
RING - snap
1шт.
11
81184C1
RING CARRIER
CARRIER - clutch plates
1шт.
12
81189C1
WASHER
WASHER - clutch pack
1шт.
13
81187C1
DRIVEN PLATE
PLATE - inner
8шт.
14
81188C1
DRIVE PLATE
PLATE - outer
9шт.
15
81186C1
WASHER
- shim, 4.0 mm
1шт.
15
1968318C1
WASHER
WASHER - shim, 4.4 mm
1шт.
15
1968319C1
WASHER
WASHER - shim, 4.6 mm
1шт.
15
1968320C1
WASHER
WASHER - shim, 4.8 mm
1шт.
15
1968321C1
WASHER
WASHER - shim, 5.0 mm
1шт.
15
1968322C1
WASHER
WASHER - shim, 5.2 mm
1шт.
15
1968323C1
WASHER
WASHER - shim, 5.4 mm
1шт.
15
1968324C1
WASHER
WASHER - shim, 5.6 mm
1шт.
15
1968317C1
WASHER
WASHER - shim, 5.8 mm
1шт.
15
1968325C1
WASHER
WASHER - shim, 6.0 mm
1шт.
15
1968326C1
WASHER
WASHER - shim, 6.2 mm
1шт.
15
1968327C1
WASHER
WASHER - shim, 6.4 mm
1шт.
15
1968328C1
WASHER
WASHER - shim, 6.6 mm
1шт.
15
1968329C1
WASHER
WASHER - shim, 6.8 mm
1шт.
16
81186C1
WASHER
- shim, 4.0 mm
1шт.
17
81185C1
CIRCLIP
RING - snap
1шт.
18
81174C1
GEAR
- driven
1шт.
19
81179C1
O-RING,1.5mm Thk x 7mm ID, 70 Duro
- 7 x 1.5 mm
1шт.
20
81178C1
LARGE PIN,17mm OD x 34.7mm L
PIN - piston pressure
1шт.
21
81175C1
PISTON
- clutch
1шт.
22
81176C1
PACKING RING
RING - 51.5 x 2.5 mm
1шт.
23
81177C1
RING,Square, 2.5mm Thk x 107mm ID
RING - 107 x 2.5 mm
1шт.
24
81180C1
SPRING
SPRING - clutch pack
1шт.
25
81181C1
RING
- clutch spring
1шт.
Выбрано товаров: 37
