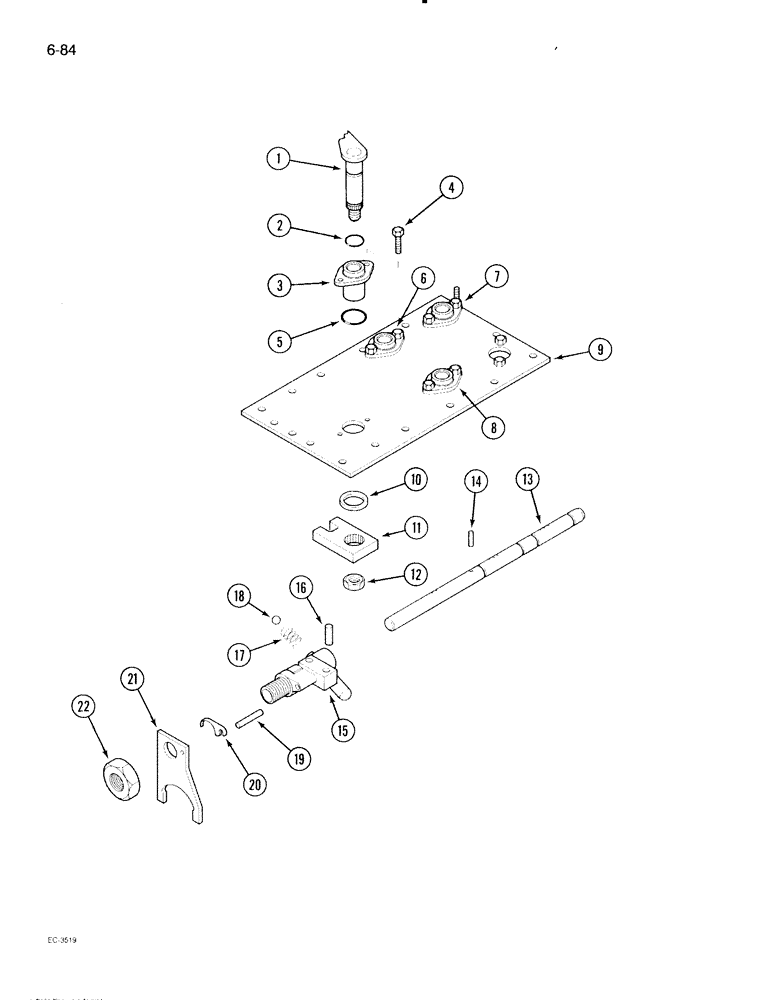

Запчасти Case IH 595 (6-084) - CREEPER SHIFT CONTROL, INTERNAL (06) - POWER TRAIN

1

1343243C1

ARM ASSY.

ARM ASSEMBLY - creep shift actuating (Without cab) (See Figure 6-78)

1шт.

1

1343171C1

ARM ASSY.

ARM ASSEMBLY - creep shift actuating (With cab) (See Figure 6-82)

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

3129165R2

HOUSING

- creeper shift arm

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

6

3129165R2

HOUSING

- speed shift pivot interlock (See Figure 6-08 and 6-10)

1шт.

7

3129165R2

HOUSING

- speed shift actuating arm, 1st/2nd (See Figure 6-08 and 6-10)

1шт.

8

3129165R2

HOUSING

- speed shift actuating arm, 3rd/4th (See Figure 6-08 and 6-10)

1шт.

9

1343283C1

COVER ASSY

COVER ASSEMBLY - clutch housing top (Without cab) (See Figure 6-08)

1шт.

9

1343285C1

COVER ASSY

COVER ASSEMBLY - clutch housing top (With cab) (See Figure 6-10)

1шт.

10

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- creeper arm

1шт.

11

1343174C1

ARM

- creeper shift

1шт.

12

19605R1

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC

1шт.

12

131-208

SPECIAL NUT,1/2"-13

NUT - lock, 1/2 inch NC (Optional to 19605R1)

1шт.

13

1343163C1

RAIL

- creep shift

1шт.

14

25155R1

PIN,1/4" x 1 1/4", Coiled

1шт.

15

1343312C1

HUB ASSY.

HUB ASSEMBLY - shift fork, Includes: Ref. 16

1шт.

16

837-10030

DOWEL,M10 x 30

PIN - dowel, 10 x 30 mm

1шт.

17

103062C1

SPRING

- compression

1шт.

18

17013R1

BALL,13/32" Dia

1шт.

19

18556R1

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

20

1343166C3

SHIM

- creep shift fork

1шт.

21

1343165C3

SHIFTER FORK

FORK - creep shift

1шт.

22

218-1249

BHD LOCK NUT,1-3/16" - 12

NUT - lock, bulkhead, 3/4 inch OD tube

1шт.
