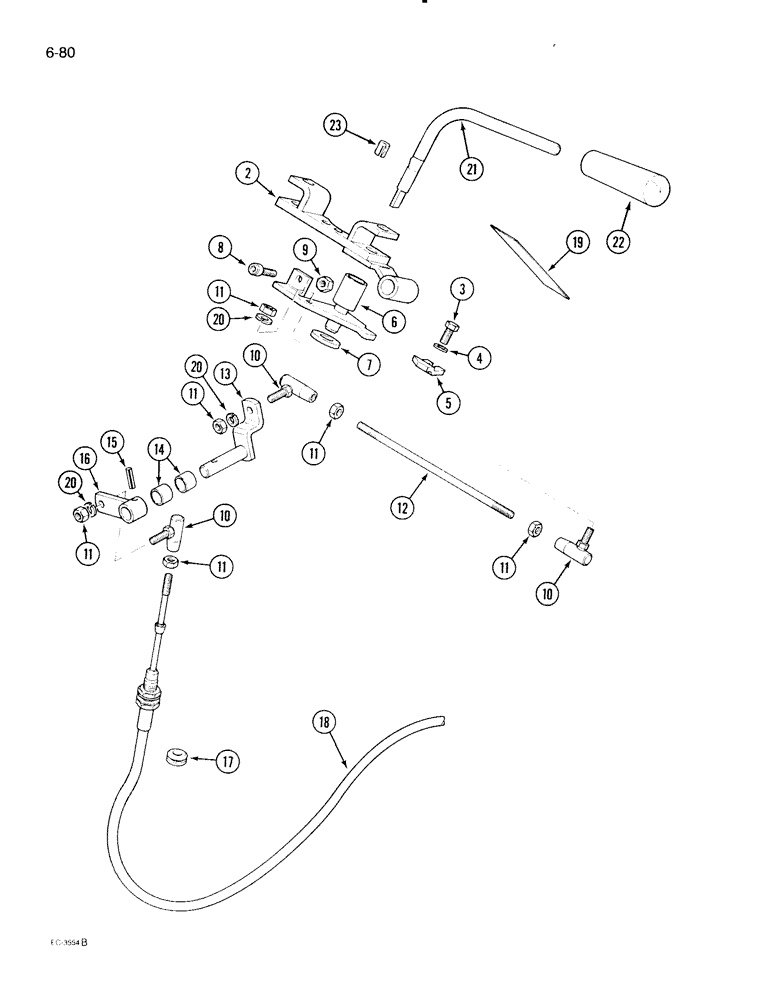

Запчасти Case IH 595 (6-080) - CREEPER CONTROLS, UPPER, TRACTOR WITH CAB (06) - POWER TRAIN

2

1985222C2

SUPPORT

ASSEMBLY - handle

1шт.

3

615-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 12 mm

1шт.

4

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

- plain, 6.4 x 12.5 x 2 mm

1шт.

5

1343038C2

STOP

- handle travel

1шт.

6

1985220C3

LEVER

ASSEMBLY - actuator lockout

1шт.

7

1343031C1

WASHER

- wear, nylon

1шт.

8

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

9

825-1406

NUT,M6, Cl 8

1шт.

10

192227

BALL JOINT

JOINT - ball, 1/4 inch NF, type A

3шт.

11

425-114

NUT,1/4"-28, G5

5шт.

12

1343017C1

STEM

ROD - actuator, upper

1шт.

13

1343012C1

SHAFT

- pivot, upper control

1шт.

14

3234944R1

BUSHING

- cylinder

2шт.

15

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

16

1343015C1

ARM

- bellcrank, upper

1шт.

17

3114086R1

GROMMET

- cable

1шт.

18

1343006C1

FLEXIBLE CONTROL

CABLE - creeper control

1шт.

19

1985097C2

DECAL

- creeper speed

1шт.

20

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

3шт.

21

3234942R1

ROD,10mm OD

ROD - creeper control

1шт.

22

3221355R1

KNOB

HANDLE - creeper control

1шт.

23

3234968R1

SPRING CLIP

CLIP - creeper control rod

1шт.
