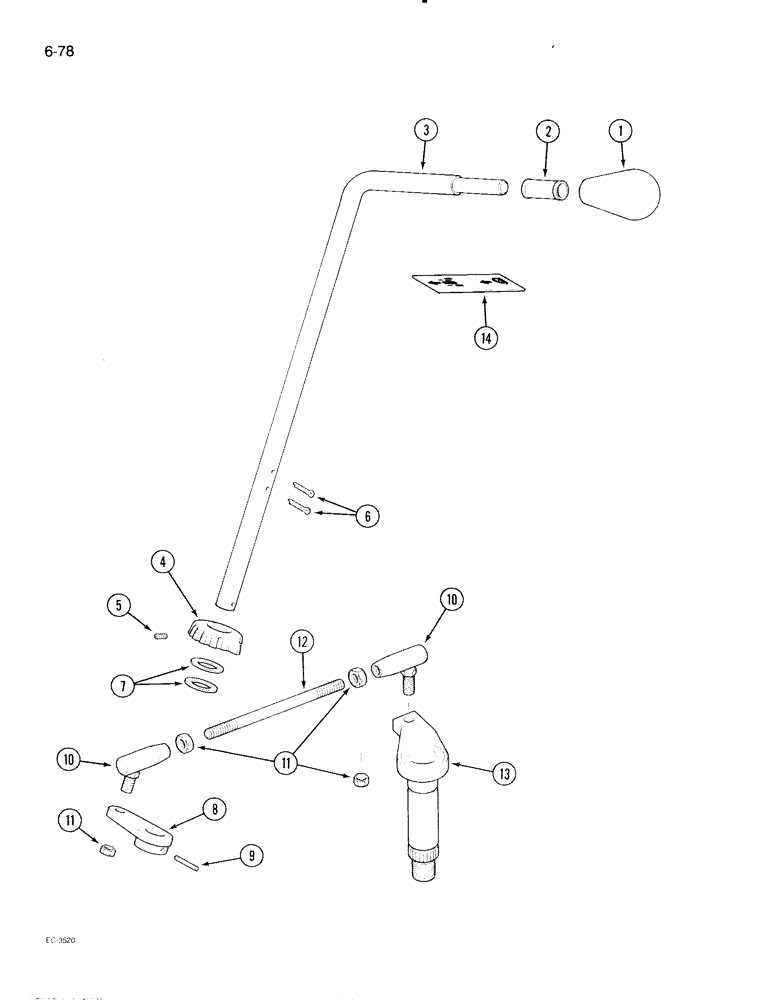

Запчасти Case IH 595 (6-078) - CREEPER CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

1536683C1

HANDLE GRIP

KNOB ASSEMBLY - creeper control, Includes: Ref. 2

1шт.

2

1536684C1

SPACER

RING - star tolerance

1шт.

3

1343240C3

LEVER

- control handle

1шт.

3

1985231C1

LEVER

- control handle (Orchard tractor)

1шт.

4

528290R1

GUIDE RING

COLLAR - control handle

1шт.

5

83-3086

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW - set, hex socket, No. 8 x 3/8 inch

1шт.

6

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

7

95-81195

WASHER,0.53" ID x 1" OD x 0.06" Thk

- flat, 17/32 x 1 x 3/64 inch

2шт.

8

1343479C1

ARM ASSY.

ARM ASSEMBLY - creeper control

1шт.

9

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

10

192227

BALL JOINT

JOINT - ball

2шт.

11

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

4шт.

12

1343241C1

STEM

ROD - creeper control

1шт.

12

1985232C1

STEM

ROD - creeper control (Orchard tractor)

1шт.

13

1343243C1

ARM ASSY.

ARM ASSEMBLY - creep shift actuating

1шт.

14

1985097C2

DECAL

- creeper speed

1шт.
