Запчасти Case IH 595 (6-076) - TRANSMISSION RANGE SHIFT CONTROL, INTERNAL, TRACTOR WITH CAB, WITH FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

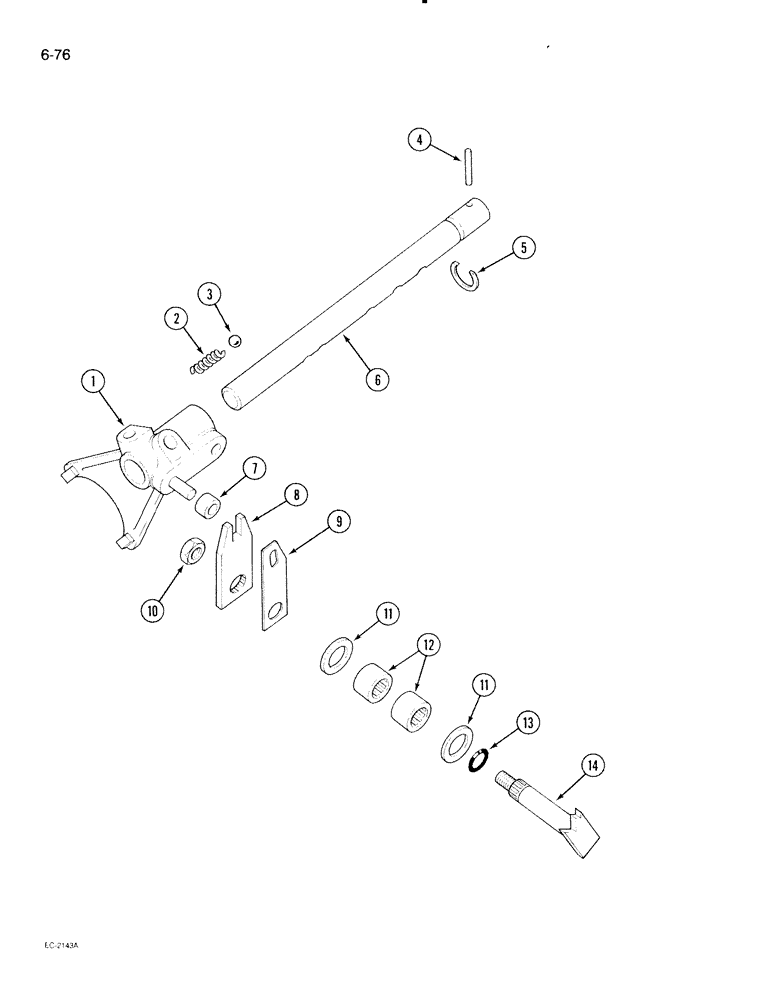

Схема запчастей Case IH 595 - (6-076) - TRANSMISSION RANGE SHIFT CONTROL, INTERNAL, TRACTOR WITH CAB, WITH FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN
3
7
11
6
12
8
2
10
11
4
14
1
9
13
5

Артикул

Название

Примечание

Количество

1

86311C1

FORK

ASSEMBLY - rear, range shift

1шт.

2

103062C1

SPRING

- poppet ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

148501C1

RING, SNAP

RING - retaining

1шт.

6

86304C1

RAIL

- range shift fork

1шт.

7

1286423C1

BUSHING

- range shift pin

1шт.

8

1286421C1

ARM

- range shift, inner

1шт.

9

86310C1

PLATE

- retainer

1шт.

10

19605R1

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC

1шт.

10

131-208

SPECIAL NUT,1/2"-13

NUT - lock, 1/2 inch NC (Optional to 19605R1)

1шт.

11

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

- flat, 25/32 x 1-1/2 x 1/64 inch

1шт.

12

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING - needle

2шт.

13

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

1шт.

14

1536518C1

ARM ASSY.

ARM ASSEMBLY - range shift, outer rear

1шт.

Выбрано товаров: 15
