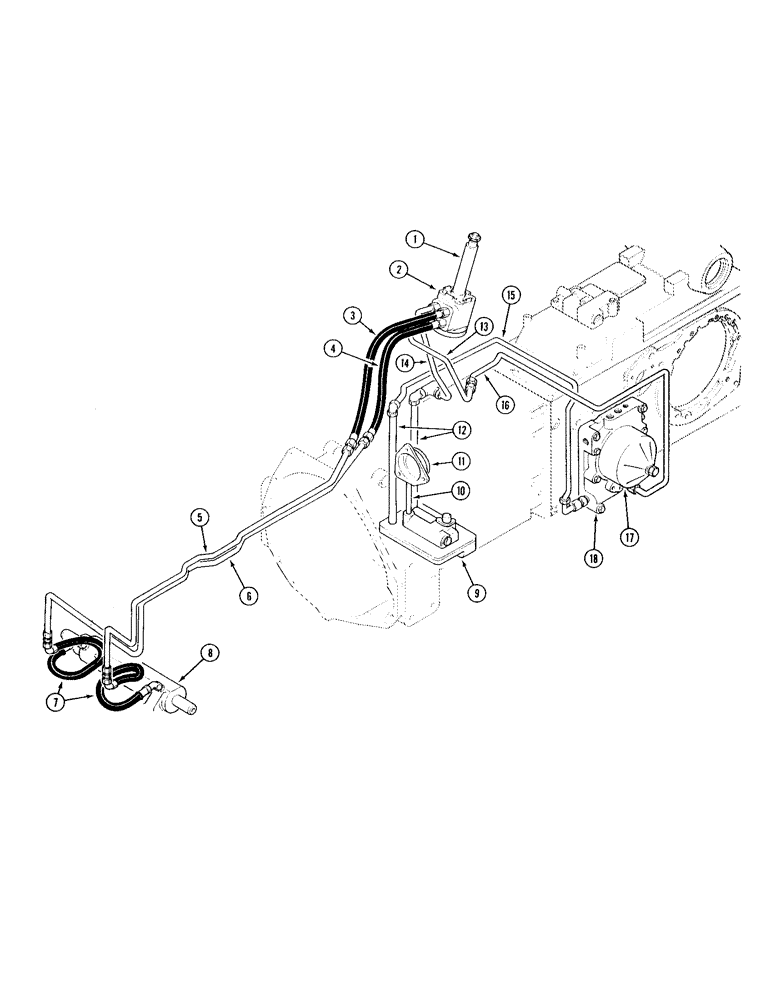

Запчасти Case IH 595 (1-20) - PICTORIAL INDEX, POWER STEERING SYSTEM, 2 WHEEL DRIVE TRACTOR WITHOUT CAB (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3, with 2-speed power shift

1шт.

2

Integral Power Steering Valve, Page 5-25, with 2-speed power shift

1шт.

3

Left Turn Steering Hose, Page 5-7, with 2-speed power shift

1шт.

4

Right Turn Steering Hose, Page 5-7, with 2-speed power shift

1шт.

5

Left Turn Steering Tube, Page 5-7, with 2-speed power shift

1шт.

6

Right Turn Steering Tube, Page 5-7, with 2-speed power shift

1шт.

7

Power Steering Cylinder Hoses, Page 5-9, with 2-speed power shift

1шт.

8

Power Steering Cylinders, Pages 5-27, 29, with 2-speed power shift

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-15, 25, with 2-speed power shift

1шт.

10

Oil Inlet Tube, Page 8-15, with 2-speed power shift

1шт.

11

IPTO and Clutch Retaining Cage, Page 6-21, with 2-speed power shift

1шт.

12

Oil Return Tubes, Page 8-15, with 2-speed power shift

1шт.

13

Forward Power Steering Pressure Tube, Page 5-15, with 2-speed power shift

1шт.

14

Forward Power Steering Return Tube, Page 5-15, with 2-speed power shift

1шт.

15

Rear Power Steering Return Tube, Page 5-15, with 2-speed power shift

1шт.

16

Rear Power Steering Pressure Tube, Page 5-15, with 2-speed power shift

1шт.

17

Hydraulic Oil Filter, Page 8-3, with 2-speed power shift

1шт.

18

Multiple Control Valve, Page 8-13, with 2-speed power shift

1шт.

1

Steering Shaft Assembly, Page 5-3, with forward and reverse

1шт.

2

Integral Power Steering Valve, Page 5-25, with forward and reverse

1шт.

3

Left Turn Steering Hose, Page 5-7, with forward and reverse

1шт.

4

Right Turn Steering HOse, Page 5-7, with forward and reverse

1шт.

5

Left Turn Steering Tube, Page 5-7, with forward and reverse

1шт.

6

Right Turn Steering Tube, Page 5-7, with forward and reverse

1шт.

7

Power Steering Cylinder Hoses, Page 5-9, with forward and reverse

1шт.

8

Power Steering Cylinders, Pages 5-27, 29, with forward and reverse

1шт.

9

Pressure Regulator Valve and Plate, Pages 8-17, 27, with forward and reverse

1шт.

10

Oil Inlet Tube, Page 8-17, with forward and reverse

1шт.

11

IPTO and Clutch Retaining Cage, Page 6-27, with forward and reverse

1шт.

12

Oil Return Tubes, Page 8-17, with forward and reverse

1шт.

13

Forward Power Steering Pressure Tube, Page 5-15, with forward and reverse

1шт.

14

Forward Power Steering Return Tube, Page 5-15, with forward and reverse

1шт.

15

Rear Power Steering Return Tube, Page 5-15, with forward and reverse

1шт.

16

Rear Power Steering Pressure Tube, Page 5-15, with forward and reverse

1шт.

17

Hydraulic Oil Filter, Page 8-3, with forward and reverse

1шт.

18

Multiple Control Valve, Page 8-13, with forward and reverse

1шт.
