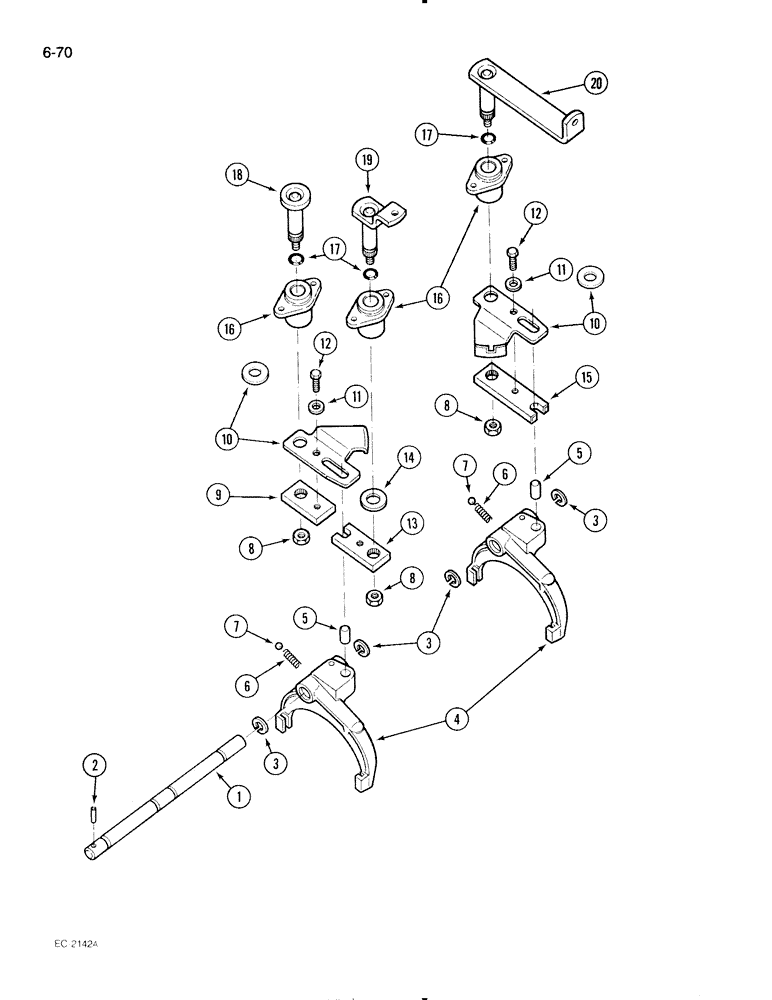

Запчасти Case IH 595 (6-070) - TRANSMISSION SPEED SHIFT CONTROL, INTERNAL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

3129154R1

RAIL

- speed shift fork

1шт.

2

25155R1

PIN,1/4" x 1 1/4", Coiled

1шт.

3

661652R1

SNAP RING,#75, Ext

4шт.

4

1500245C91

FORK

ASSEMBLY - gear shift, Includes: Ref. 5

2шт.

5

1500656C1

DOWEL

PIN - chamfered dowel, 1/2 x 2-1/4 inch

2шт.

6

103062C1

SPRING

- poppet ball

2шт.

7

17013R1

BALL,13/32" Dia

2шт.

8

19605R1

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC

3шт.

8

131-208

SPECIAL NUT,1/2"-13

NUT - lock, 1/2 inch NC (Optional to 19605R1)

3шт.

9

1277031C1

LARGE PLATE

PLATE - interlock arm support

1шт.

10

1500249C2

LARGE PLATE

PLATE - interlock (Prior To P.I.N. JJE0007817)

2шт.

10

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- (P.I.N. JJE0007817 And After)

6шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

12

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

13

3129171R2

ARM

- speed shift, 3rd/4th

1шт.

14

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- arm

1шт.

15

3129167R2

ARM

- speed shift, 1st/2nd

1шт.

16

3129165R2

HOUSING

- speed shift arm (See Figure 6-08)

3шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

18

1277030C1

PIVOT ASSY.

PIVOT - interlock (See Figure 6-08)

1шт.

19

3129172R2

ARM ASSY.

ARM ASSEMBLY - speed shift actuating, 3rd/4th

1шт.

20

3129166R1

ARM ASSY.

ARM ASSEMBLY - speed shift actuating, 1st/2nd

1шт.
