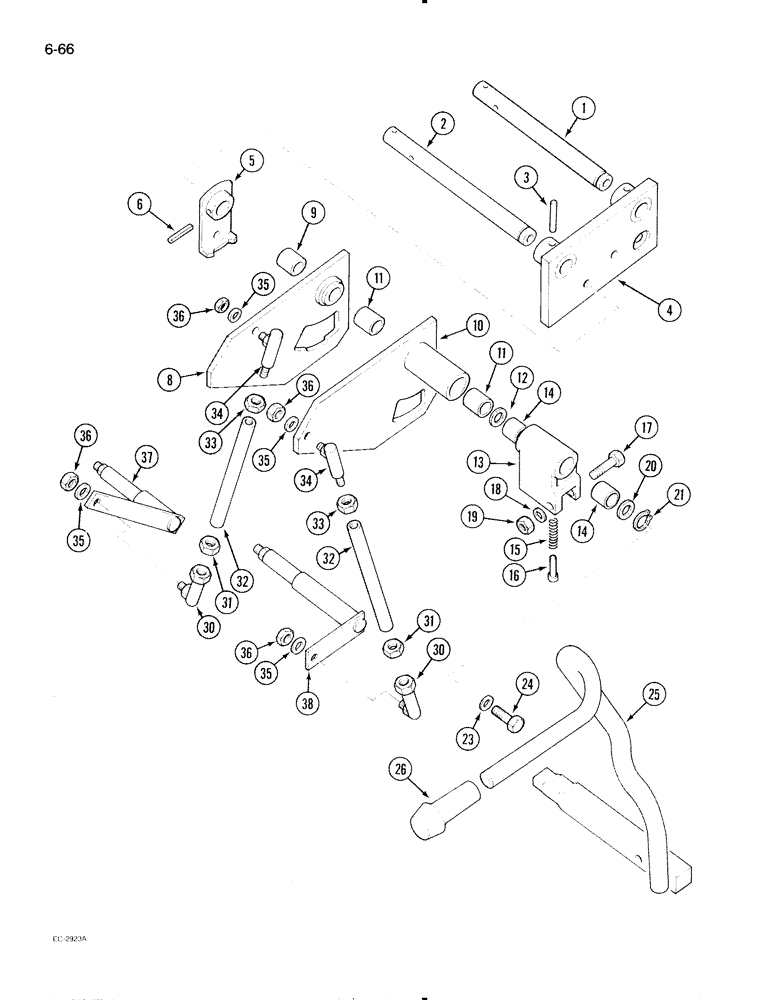

Запчасти Case IH 595 (6-066) - TRANSMISSION RANGE SHIFT CONTROLS, TRACTOR WITH CAB, WITHOUT FORWARD AND REVERSE (06) - POWER TRAIN

1

1281602C1

SHAFT

- pivot, speed shift lever (See Figure 6-60)

1шт.

2

1283218C1

SHAFT

- pivot, range shift lever

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE - shift pivot (See Figure 6-60)

1шт.

5

98615C1

LEVER

GATE ASSEMBLY- range shift

1шт.

6

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

8

1283427C91

LEVER ASSY.

LEVER ASSEMBLY - range shift, (H/N), Includes: Ref. 9

1шт.

9

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

10

1283425C92

LEVER

ASSEMBLY - range shift, (L/R), Includes: Ref. 11

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

2шт.

12

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 29/32 x 1-1/4 x 1/32 inch

1шт.

13

3129214R93

HOUSING ASSY.

HOUSING ASSEMBLY - selector arm, Includes: Ref. 14

1шт.

14

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

- housing

2шт.

15

71486C1

SPRING

- compression

1шт.

16

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

17

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

18

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

19

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

20

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 29/32 x 1.1/4 x 1/32 inch

1шт.

21

454331R1

SNAP RING,#87, Ext

1шт.

23

892-11010

LOCK WASHER,M10

2шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

25

1283429C3

LEVER ASSY.

LEVER ASSEMBLY - range shift

1шт.

26

3129412R2

HANDLE

KNOB - range lever

1шт.

1281620C91

ROD ASSY.

ROD ASSEMBLY - range control (H/N), Includes: Ref. 30 - 34

1шт.

1281618C91

ROD ASSY.

ROD ASSEMBLY - range control (L/R), Includes: Ref. 30 - 34

1шт.

30

1282947C2

BALL JOINT

JOINT - ball, 10 mm, left-hand thread

1шт.

31

825-12010

NUT,M10, Cl 8, LH

- hex, 10 mm - 1.5, left-hand thread

1шт.

32

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

33

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

1шт.

34

3129345R2

BALL JOINT

JOINT - ball, 10 mm

1шт.

35

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

36

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

4шт.

37

1289944C2

ARM ASSY.

ARM ASSEMBLY - range shift actuating, (H/N)

1шт.

38

1970927C2

ARM ASSY.

ARM ASSEMBLY - range shift actuating, (L/R)

1шт.
