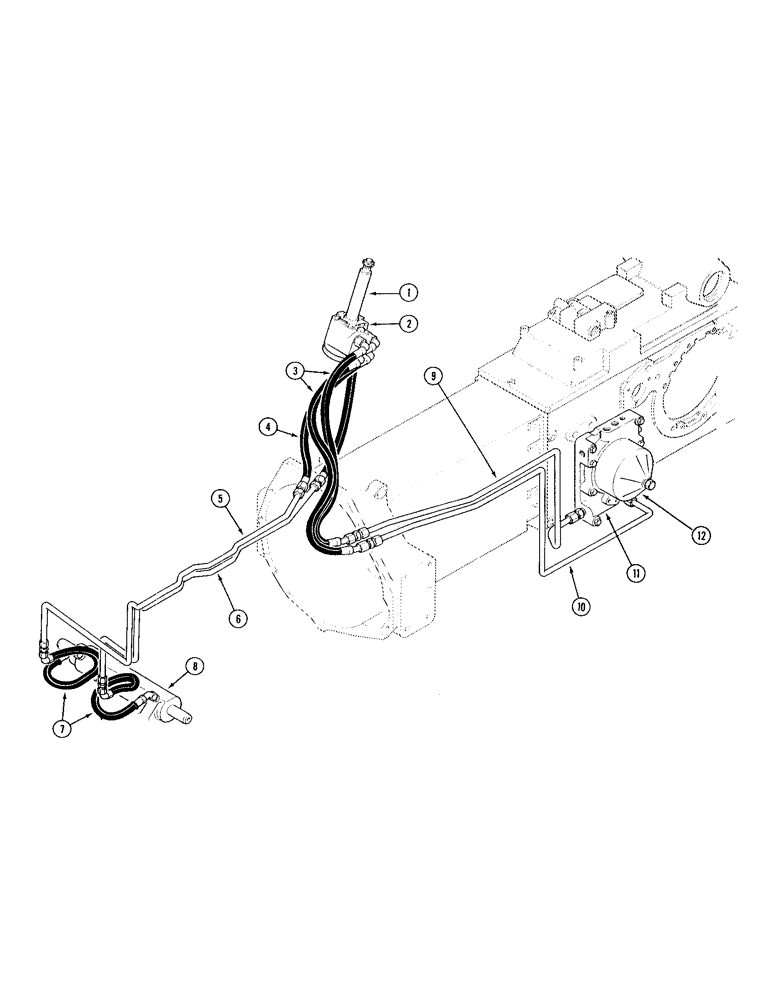

Запчасти Case IH 595 (1-18) - PICTORIAL INDEX, POWER STEERING SYSTEM, 2 WHEEL DRIVE TRACTOR WITH CAB, WITHOUT 2 SPEED POWER SHIFT (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-5

1шт.

2

Integral Power Steering Valve, Page 5-25

1шт.

3

Power Steering Pressure and Return Hoses, Page 5-19

1шт.

4

Left and Right turn Steering Hoses, Page 5-7

1шт.

5

Left Turn Steering Tube, Page 5-7

1шт.

6

Right Turn Steering Tube, Page 5-7

1шт.

7

Power Steering Cylinder Hoses, Page 5-9

1шт.

8

Power Steering Cylinders, Pages 5-27, 29

1шт.

9

Rear Power Steering Return Tube, Page 5-19

1шт.

10

Rear Power Steering Pressure tube, Page 5-19

1шт.

11

Multiple Control Valve, Page 8-13

1шт.

12

Hydraulic Oil Filter, Page 8-3

1шт.
