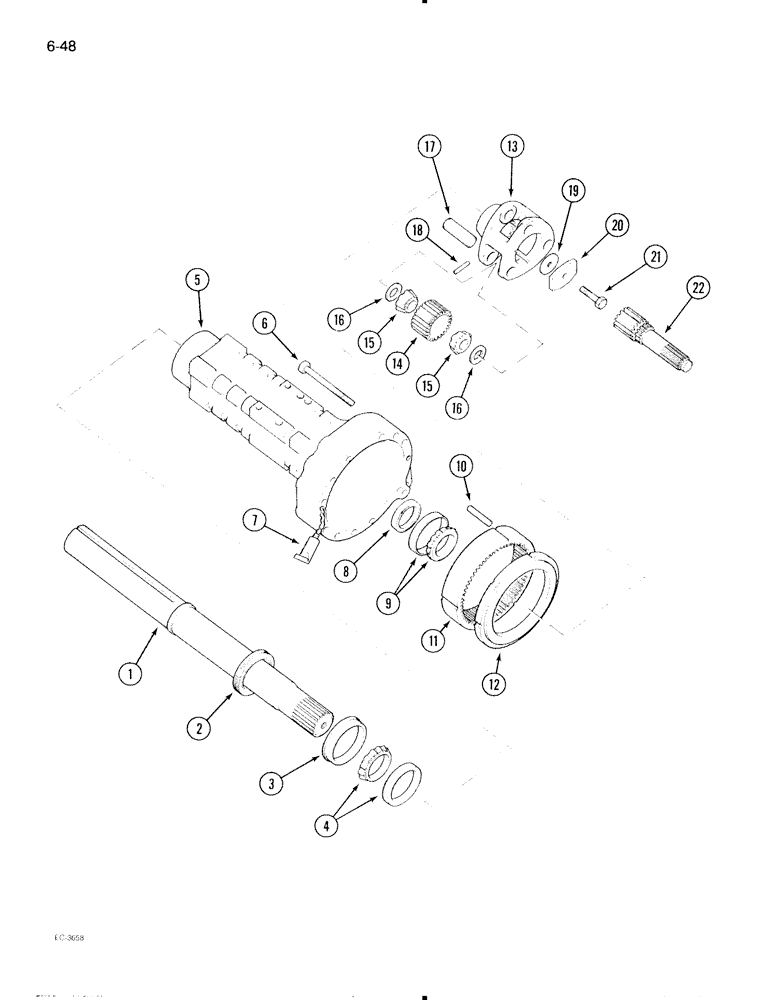

Запчасти Case IH 595 (6-048) - REAR AXLE AND CARRIER, TRACTOR WITH BAR TYPE AXLE (06) - POWER TRAIN

1

527353R11

AXLE, REAR

AXLE ASSEMBLY - rear

2шт.

Ref #1 - 535862R1 Wear Sleeve on Axle 527353R11

1шт.

2

105471C1

OIL SEAL

SEAL - oil, rear axle outer

2шт.

3

399796R1

SLEEVE

- wear

2шт.

4

ST2130

BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"

BEARING ASSEMBLY - roller, rear axle outer (Order ST2129 and ST988)

2шт.

4

384734R91

BEARING ASSY,4.7812" ID x 3.0625" OD x 0.9688, 0.6875"

BEARING ASSEMBLY - roller (Optional to ST2130)

2шт.

5

93941C1

AXLE CARRIER

CARRIER - rear axle, left

1шт.

5

93942C1

AXLE CARRIER

CARRIER - rear axle, right

1шт.

6

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

20шт.

6

326-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

2шт.

7

B17501

LOCTITE

SEALANT - Gasket Maker No. 515, 6 ml tube

1шт.

8

399798R91

OIL SEAL

SEAL - oil, rear axle inner

2шт.

9

972467R91

BEARING ASSY

ASSEMBLY - roller, rear axle inner (Order ST2175)

2шт.

9

399799R91

BEARING ASSY,2.75" ID x 4.4375" OD x 1, 0.75"

BEARING ASSEMBLY - roller (Optional to 972467 R91)

2шт.

9

1500912C91

TAPERED BEARING,3.12" ID x 4.4375" OD x 0.75"

BEARING ASSEMBLY - roller (Optional to 972467 R91)

2шт.

10

529686R1

DOWEL

PIN - dowel

6шт.

11

535317R1

GEAR, RING

GEAR - ring, 66 teeth

2шт.

12

114620C1

RING,260mm OD

- brake outer disc

2шт.

12

1502369C1

RING

- brake outer disc, Serial Range: (Optional-114620C1)

2шт.

13

114613C1

CARRIER

- planet gear (Order 1110429C1)

2шт.

14

1971155C1

PINION

GEAR - planet, 25 teeth (Prior to P.I.N. JJE0014509)

6шт.

Ref #14 - (Is 2.11" Wide)

1шт.

14

66128C2

PINION

GEAR - planet, 25 teeth (P.I.N. JJE0014509 and After)

6шт.

Ref #14A - (Is 1.75" Wide)

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - cone, planet gear (Prior to P.I.N. JJE0014509)

12шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone, planet gear (P.I.N. JJE0014509 and After)

12шт.

65421C2

SHIM KIT

KIT - service, planet gear shim (Prior to P.I.N. JJE0014509), Includes: Ref. 16

1шт.

65420C1

SHIM KIT

KIT - service, planet gear shim (P.I.N. JJE0014509 and After), Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

3шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.049 inch

3шт.

16

NSS

NOT SOLD SEPARAT

SHIM - 0.056 inch

3шт.

17

399812R1

SHAFT

PIN - planet shaft (Prior to P.I.N. JJE0014509)

6шт.

17

1971156C1

SHAFT

PIN - planet shaft (P.I.N. JJE0014509 and After)

6шт.

18

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

65422C1

SHIM KIT

KIT - service, rear axle retainer shims, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.0299 inch

2шт.

20

399748R1

SPACER

- planet carrier

2шт.

21

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch, grade 8

2шт.

22

404343R1

SHAFT

- planetary drive, right

1шт.

22

404342R1

SHAFT

- planetary drive, left

1шт.
