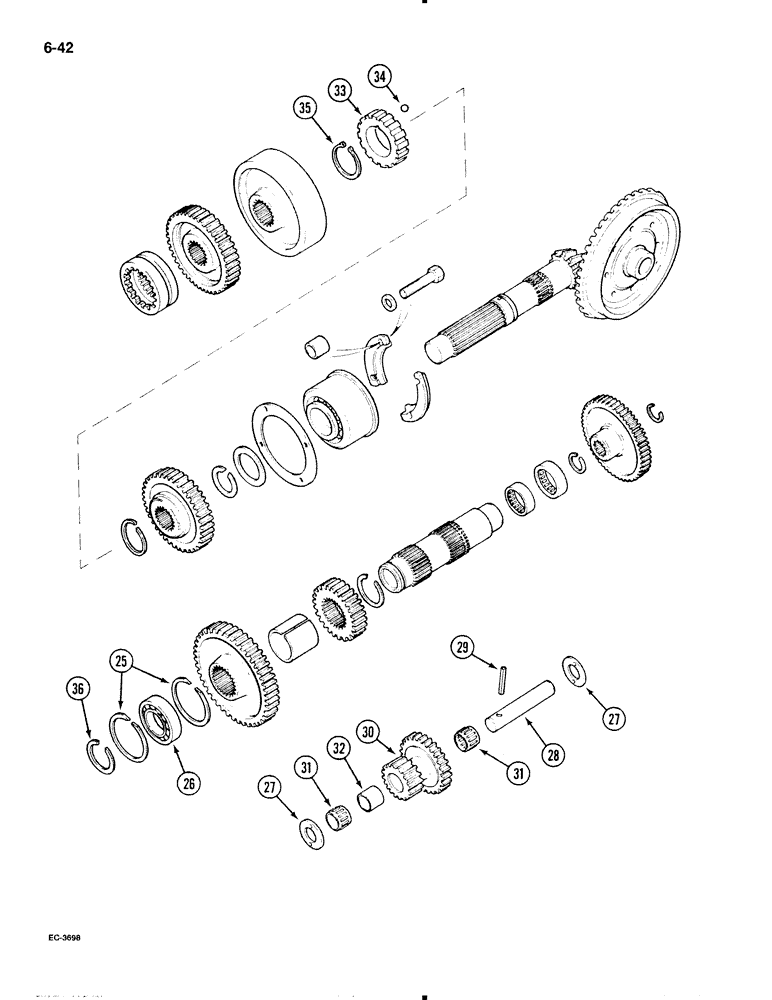

Запчасти Case IH 595 (6-042) - RANGE TRANSMISSION (06) - POWER TRAIN

25

399832R1

RING, SNAP

RING - retaining

2шт.

26

G10418

BEARING, BALL

BEARING - ball, transmission countershaft

1шт.

26

3047867R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

26

3069304R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

27

3112846R1

THRUST WASHER

WASHER - thrust, idler bearing

2шт.

28

399838R3

SHAFT

- reverse idler

1шт.

29

366281R1

PIN,3/8" x 2", Coiled

1шт.

30

1975490C1

GEAR

- reverse idler, 20/24 teeth

1шт.

31

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle, 1.313 inch OD

2шт.

32

3112845R1

SPACER

- idler bearing

1шт.

33

1537171C1

GEAR

WHEEL - slotted, speedometer

1шт.

34

211-206

BALL,1/4" Dia

- 1/4 inch grade 25, chrome alloy steel

1шт.

35

D38248

SNAP RING,#187, Ext

RING - retaining, external 1.759 inch

1шт.

36

427089

RING - retaining

1шт.

Item 36, 427089 retaining ring order A27089

1шт.
