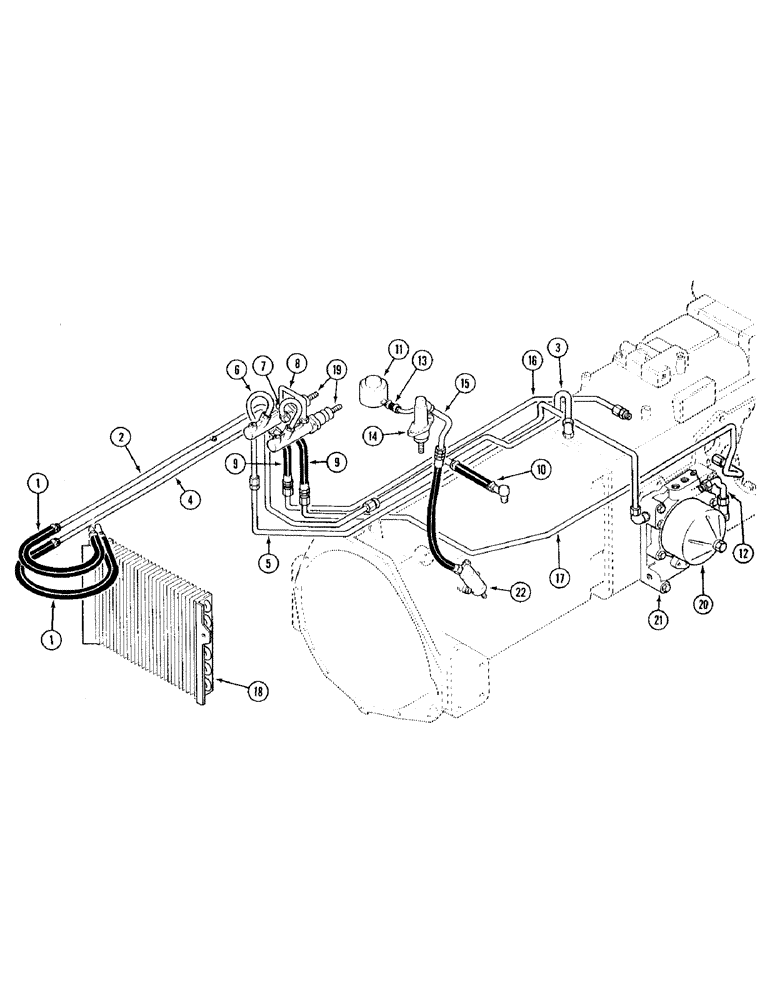

Запчасти Case IH 595 (1-14) - PICTORIAL INDEX, OIL COOLER AND BRAKE TUBES, TRACTOR WITH CAB (00) - PICTORIAL INDEX

1

Oil Cooler Inlet and Outlet Hoses, Page 8-7

1шт.

2

Oil cooler Front Return Tube, Page 8-7

1шт.

3

Oil Cooler Rear Return Tube, Page 8-7

1шт.

4

Oil Cooler Front Supply Tube, Page 8-7

1шт.

5

Oil Cooler Rear Supply tube, Page 8-7

1шт.

6

Left Cylinder Outlet Tube, Page 7-9

1шт.

7

Right Cylinder Outlet Tube, Page 7-9

1шт.

8

Master cylinder Equalizier Tube, Page 7-9

1шт.

9

Brake High Pressure Hoses, Page 7-9

1шт.

10

Lubrication Hose, Page 8-7

1шт.

11

Clutch Oil Reservoir, Page 6-53

1шт.

12

Multiple Control Valve By-Pass Tube, Page 8-11

1шт.

13

Reservoir to Clutch Master Cylinder Tube, Page 6-53

1шт.

14

Clutch Master Cylinder, Page 6-57

1шт.

15

Clutch Master cylinder to Slave Cylinder Tube, Page 6-53

1шт.

16

Right Brake Tube, Page 7-9

1шт.

17

Left Brake Tube, Page 7-9

1шт.

18

Oil Cooler, Page 8-7

1шт.

19

Brake Master Cylinders, Page 7-11

1шт.

20

Hydraulic Oil Filter, Page 8-3

1шт.

21

Multiple Control Valve, Page 8-13

1шт.

22

Clutch Slave Cylinder, Page 6-55

1шт.
