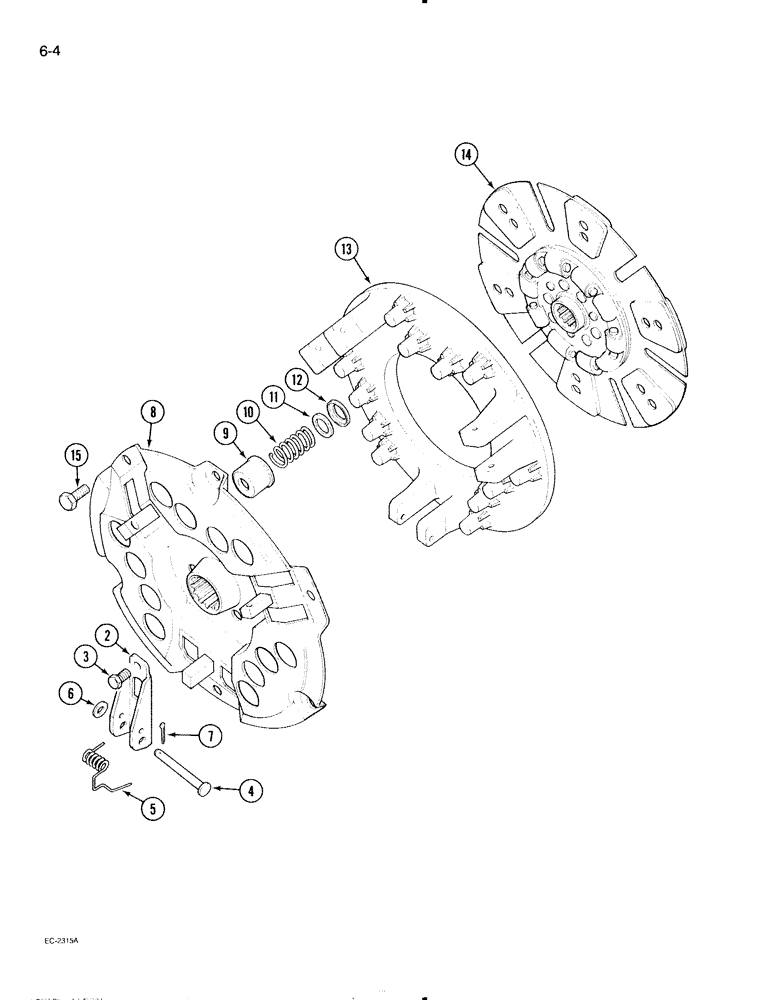

Запчасти Case IH 595 (6-004) - HEAVY DUTY CLUTCH, ROCKFORD 12 INCH (06) - POWER TRAIN

1944257C1

COVER ASSY

PLATE ASSEMBLY - clutch pressure, remanufactured

1шт.

1944258C1

CORE-CLUTCH PLATE

RETURN NUMBER - clutch pressure plate (Use this part number to return clutch pressure plate core for credit)

1шт.

85025C1

CLUTCH

PLATE ASSEMBLY - clutch pressure, Includes: Ref. 2 - 13 and kit

1шт.

84342556R

REMAN-CLUTCH PLATE

595 (1/90-12/94), Reman For New PN 85025C1

1шт.

84342556C

CORE-CLUTCH PLATE

Return Part Number

1шт.

85120C91

PACKAGE

KIT - lever assembly, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - release (Order kit 85120C91)

3шт.

3

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW - adjusting

3шт.

4

149487R1

PIN

PIN - lever pivot

3шт.

5

375572R1

SPRING

SPRING - lever tension

3шт.

6

95-11034

WASHER,1/4"

WASHER - flat, 11/32 x 21/32 x 3/64 inch

3шт.

7

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

3шт.

8

85148C1

PLATE

PLATE ASSEMBLY - back

1шт.

9

353316R1

SPRING CUP

CUP - spring

12шт.

10

349934C1

SPRING

SPRING - pressure plate

12шт.

11

311291C1

INSULATING WASHER

WASHER - insulating

12шт.

12

311292C1

WASHER

WASHER - retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE - clutch

1шт.

14

85026C3

CLUTCH DISC,305mm OD

CLUTCH DISK PLATE ASSEMBLY - clutch driven disc

1шт.

14

85026C3R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 10Tooth hub, 1 1/8 in. OD splines, 6 button

1шт.

14

85026C3C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

1944259C1

DRIVEN PLATE

PLATE ASSEMBLY - clutch driven disc, remanufactured

1шт.

14

1944260C1

CORE-CLUTCH PLATE

Return Part Number - clutch driven disc plate (Use this part number to return driven disc plate core for credit)

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.
