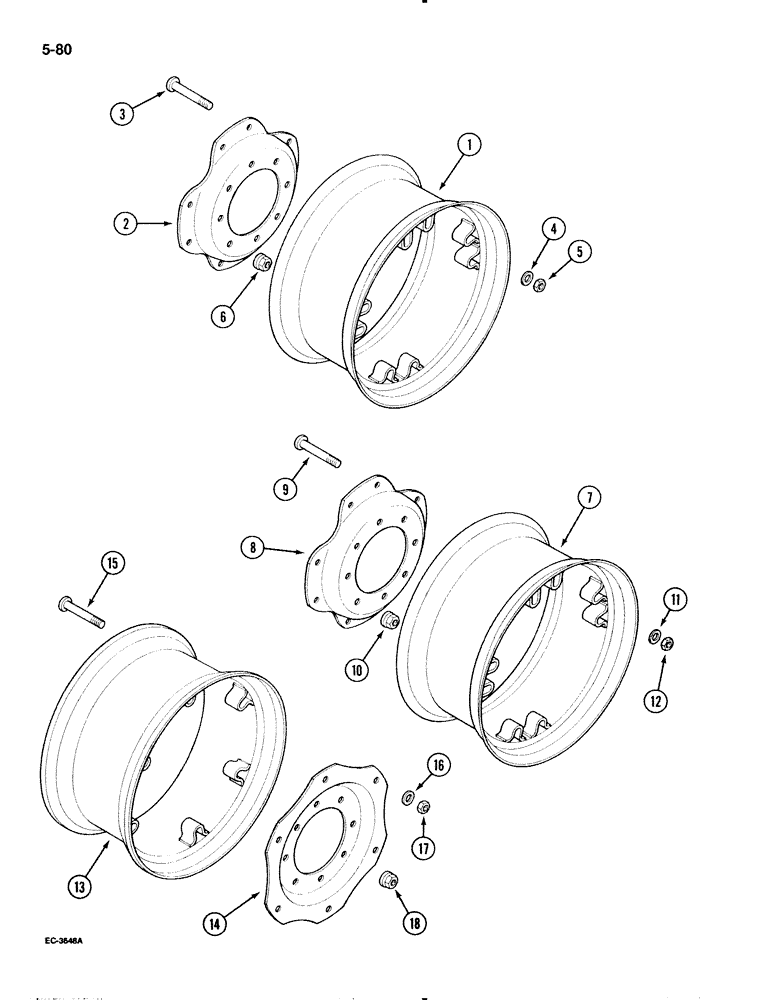

Запчасти Case IH 595 (5-80) - FRONT WHEELS, MFD TRACTOR, 24 AND 28 INCH WHEEL (05) - STEERING

1

99978C1

RIM

- adjustable, W7-24 (For 8.3 x 24 or 9.5 x 24 tire) (Replaces 1536642C1), 24" wheel

2шт.

Subs to (rim for W8-24) 9.5 x 24 tire

1шт.

2

1536641C1

DISC, WHEEL

DISC - 24 inch wheel

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheel

16шт.

4

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, 24" wheel

16шт.

5

1335134C1

NUT

- hex, 16 mm - 2.00, 24" wheel

16шт.

6

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining, 24"

16шт.

1

1536640C1

RIM

- adjustable, W10-24 (For 11.2 x 24 tire), 24" wheel

2шт.

2

1536641C1

DISC, WHEEL

DISC - 24 inch wheel

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheel

16шт.

4

1335135C1

WASHER

- flat, 17 x 33 3 5 mm, 24" wheel

16шт.

5

1335134C1

NUT

- hex, 16 mm - 2.00, 24" wheel

16шт.

6

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining, 24"

16шт.

7

1537916C1

RIM

- adjustable, W7-24, 24" wheel

2шт.

8

1537917C1

DISC

- 24 inch wheel

2шт.

9

1332730C1

BOLT,M16 x 790mm, Gr 8.8

BOLT, 24" wheel

16шт.

10

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- 18 mm wheel mounting, 24"

16шт.

11

1332731C1

WASHER

- 16.8 x 28 x 4 mm, 24" wheel

16шт.

12

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- 16 mm, 24" wheel

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - complete, W10-28 (For 11.2 x 28 tire), 28", Includes: Ref. 13 - 17

2шт.

13

89791C1

RIM

- wheel, W10-28, 28"

1шт.

14

89792C1

DISC, WHEEL

DISC - 28 inch wheel

1шт.

15

89744C1

BOLT

- carriage, 16 x 122 mm, 28" wheel

6шт.

16

89746C1

WASHER

- flat, 17 x 28 x 4 mm, 28" wheel

6шт.

17

89745C1

NUT

- hex, 16 mm, 28" wheel

6шт.

18

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm, wheel mounting, 28"

16шт.
