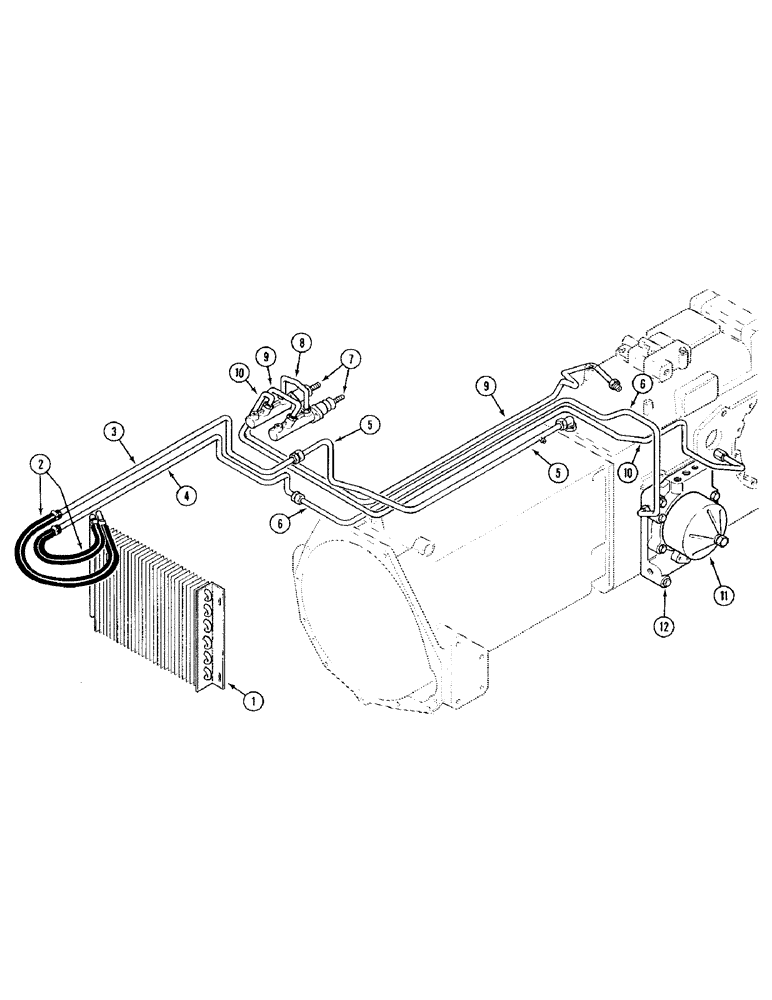

Запчасти Case IH 595 (1-12) - PICTORIAL INDEX, OIL COOLER AND BRAKE TUBES, TRACTOR WITHOUT (00) - PICTORIAL INDEX

1

Oil Cooler, Page 8-5

1шт.

2

Oil Cooler Inlet and Outlet Hoses, Page 8-5

1шт.

3

Oil Cooler Fron treturn Tube, Page 8-5

1шт.

4

Oil cooler Front Supply tube, Page 8-5

1шт.

5

Oil cooler Rear Return Tube, Page 8-5

1шт.

6

Oil cooler Rear Supply Tube, Page 8-5

1шт.

7

Brake Master Cylinders, Page 7-11

1шт.

8

Master cylinder Equalizer Tube, Page 7-5

1шт.

9

Right Brake Tube, Page 7-5

1шт.

10

Left Brake Tube, Page 7-5

1шт.

11

Hydraulic Oil Filter, Page 8-3

1шт.

12

Multiple Control Valve, Page 8-13

1шт.
