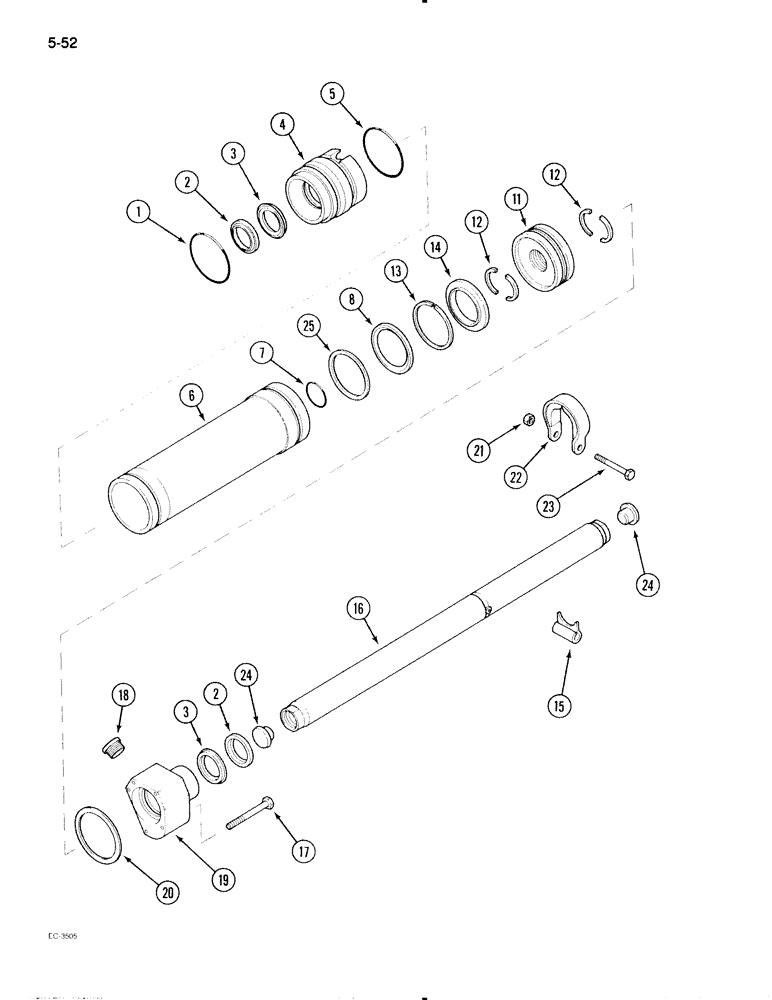

Запчасти Case IH 595 (5-52) - MECHANICAL FRONT DRIVE ZF, STEERING CYLINDER (05) - STEERING

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 25

1шт.

1

81339C1

O-RING,62mm ID x 3mm Width

- 62 x 3 mm

1шт.

2

81340C1

SCRAPER RING

RING - scraper (Order 81698C1)

2шт.

3

81341C1

RING,32mm ID x 40mm OD x 6mm Thk

- grooved

2шт.

4

81338C1

GUIDE

- piston rod

1шт.

5

81337C1

O-RING,3mm Thk x 64mm ID

- 64 x 3 mm

2шт.

6

81336C1

HYD CYL SLEEVE

CYLINDER - steering

1шт.

7

81345C1

O-RING,32mm ID x 3mm Width

- 32 x 3 mm

1шт.

8

81346C1

GASKET

GASKET - piston

1шт.

11

1975679C1

PISTON

- steering cylinder

1шт.

12

1975681C1

SPLIT COLLAR

RING - split

2шт.

13

1975682C1

CIRCLIP

RING - snap

1шт.

14

1975680C1

RING

SPACER - piston

1шт.

15

81361C1

LOCKING PLATE

PLATE - spacing

2шт.

16

1975597C1

PISTON ROD

ROD - piston

1шт.

17

30031R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 mm - 1.5 x 80 mm, class 10.9

5шт.

18

81362C1

PLUG

- oil filler

1шт.

19

81358C1

BLOCK

GUIDE - piston rod

1шт.

20

81357C1

SHIM

DISK - 0.9 mm

1шт.

20

81348C1

SHIM

DISK - 1.0 mm

1шт.

20

81349C1

SHIM

DISK - 1.1 mm

1шт.

20

81350C1

SHIM

DISK - 1.2 mm

1шт.

20

81351C1

SHIM

DISK - 1.3 mm

1шт.

20

81352C1

SHIM

DISK - 1.4 mm

1шт.

20

81353C1

SHIM

DISK - 1.5 mm

1шт.

20

81354C1

SHIM

DISK - 1.6 mm

1шт.

20

81355C1

SHIM

DISK - 1.7 mm

1шт.

20

81356C1

SHIM

DISK - 1.8 mm

1шт.

21

43362

NUT,M8 x 1.25, Cl 10

- hex jam, 8 mm

2шт.

22

99094C1

PLATE

- stop, 50/45 degrees

2шт.

22

81360C1

PLATE

- stop, 45/40 degrees (Used with splash shields) (Not supplied with axle) (Order separately)

2шт.

23

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

2шт.

24

81359C1

PLUG

- screw

2шт.

25

81347C1

RING

- guide

1шт.
