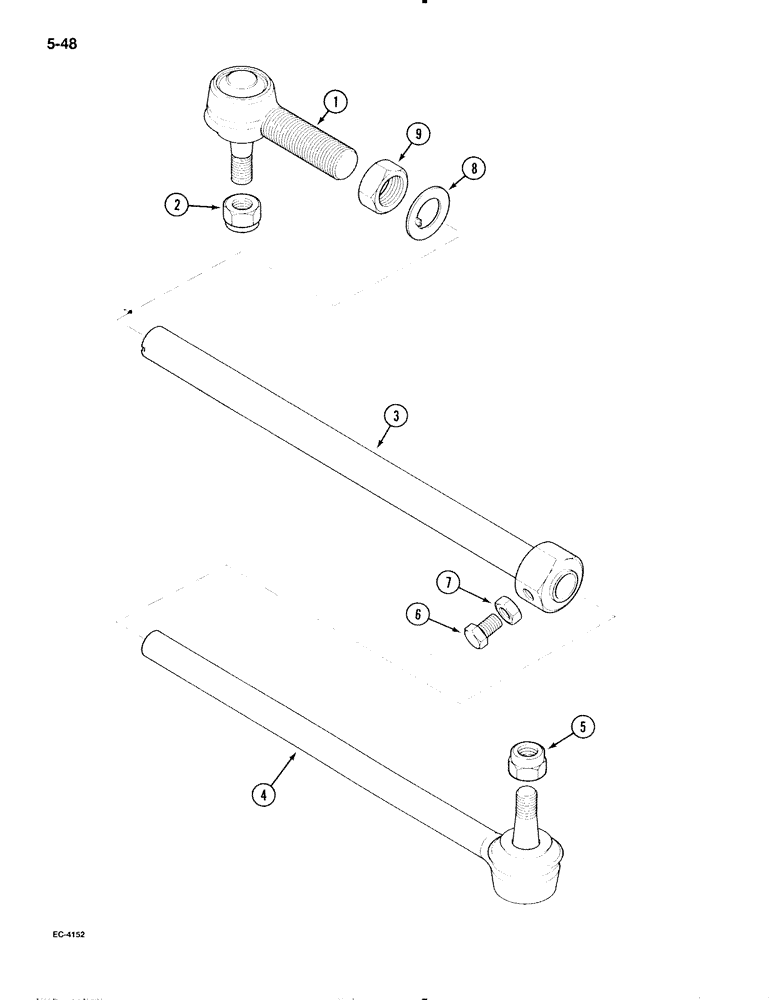

Запчасти Case IH 595 (5-48) - TIE RODS, ADJUSTABLE FRONT AXLES, SWEPT BACK AXLES (05) - STEERING

1538018C1

TIE-ROD

ROD ASSEMBLY - adjustable tie, Includes: Ref. 1 - 9

2шт.

1

1537872C1

BALL JOINT

SOCKET ASSEMBLY - inner, Includes: Ref. 2

1шт.

2

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc

2шт.

3

111531A1

TUBE,20.75 mm ID, 28 mm OD, 419 mm Length

ASSEMBLY

1шт.

4

1537873C1

BALL JOINT

JOINT - dimple end ball, Includes: Ref. 5

1шт.

5

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc

2шт.

6

111527A1

SET SCREW

SCREW - locking

1шт.

7

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

8

111528A1

WASHER

- tab

1шт.

9

111529A1

LOCK NUT

NUT - lock

1шт.
