Запчасти Case IH 595 (5-38) - HEAVY DUTY CAST FRONT AXLE (05) - STEERING

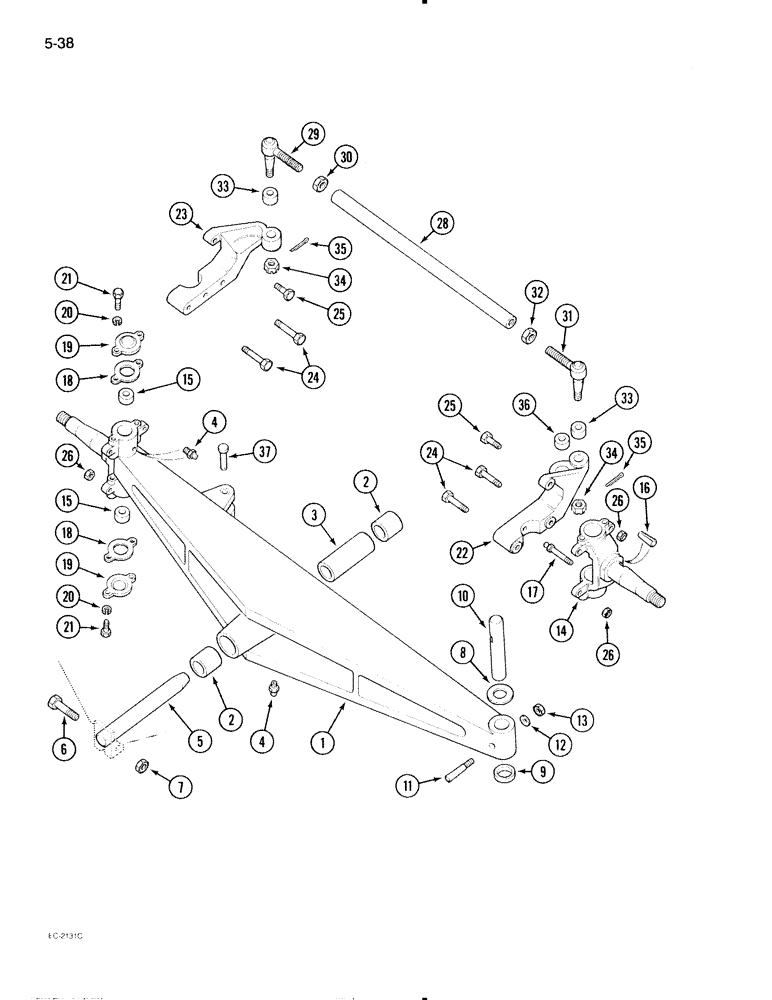

Схема запчастей Case IH 595 - (5-38) - HEAVY DUTY CAST FRONT AXLE (05) - STEERING
19
17
37
12
19
26
34
35
15
26
4
33
18
28
36
11
22
29
2
33
16
4
34
6
13
10
15
24
31
21
5
18
35
7
26
30
20
3
9
1
23
20
2
8
14
25
32
25
21
24

Артикул

Название

Примечание

Количество

1

378502R22

AXLE

ASSEMBLY - front, Includes: Ref. 2 and 3

1шт.

2

378813R1

BUSHING

- front axle

2шт.

3

530975R2

SPACER

- front axle

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT 1/8"-27 x .66 lg

3шт.

5

85999C1

PIN

- front axle pivot

1шт.

6

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

61554R1

WASHER

SHIM - steering knuckle, light

1шт.

8

70586R1

SHIM

- steering knuckle, medium

1шт.

9

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING - thrust, steering knuckle

2шт.

10

70594R91

KIT

PIN - king, pivot

2шт.

11

62798H

KEY

- king pin

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

14

1213434C91

KNUCKLE

ASSEMBLY - steering, Includes: Ref. 15

2шт.

15

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

BUSHING - steering knuckle

2шт.

16

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, 3/16" x 1/2", Type A

2шт.

17

NLS

NO LONGER SERVICED

FITTING - grease, short, 1/8 inch PT

2шт.

18

70591R1

GASKET

- steering knuckle cap

4шт.

19

70590R1

CAP

- steering knuckle

4шт.

20

392-11031

LOCK WASHER,5/16"

5/16"

8шт.

21

51124V

SCREW

- steering knuckle cap

8шт.

22

378399R1

ARM

- steering knuckle, left

1шт.

23

378400R1

ARM

- steering knuckle, right

1шт.

24

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

- hex, 5/8 NF x 3-3/4 inch

4шт.

25

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

- hex, 5/8 NF x 2-1/4 inch

2шт.

26

425-1110

NUT,5/8"-18, G5

6шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, Includes: Ref. 28 - 32

1шт.

28

70689C1

TUBE,1.188" OD, 37.72" Length

- connecting

1шт.

29

379327R91

END

ASSEMBLY - rod, right

1шт.

30

379329R1

LOCK NUT

- lock, right

1шт.

31

379326R91

END

ASSEMBLY - rod, left

1шт.

32

379328R1

LOCK NUT

- lock, left

1шт.

33

1332991C1

SEAL

- tie rod end

2шт.

34

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT - hex slotted, 5/8 inch NF

2шт.

35

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

36

1970726C1

SEAL

- steering cylinder ball joint

1шт.

37

518505R1

HEADED PIN,3/4" x 3"

PIN - headed, 3/4 x 3 inch

1шт.

Выбрано товаров: 38
