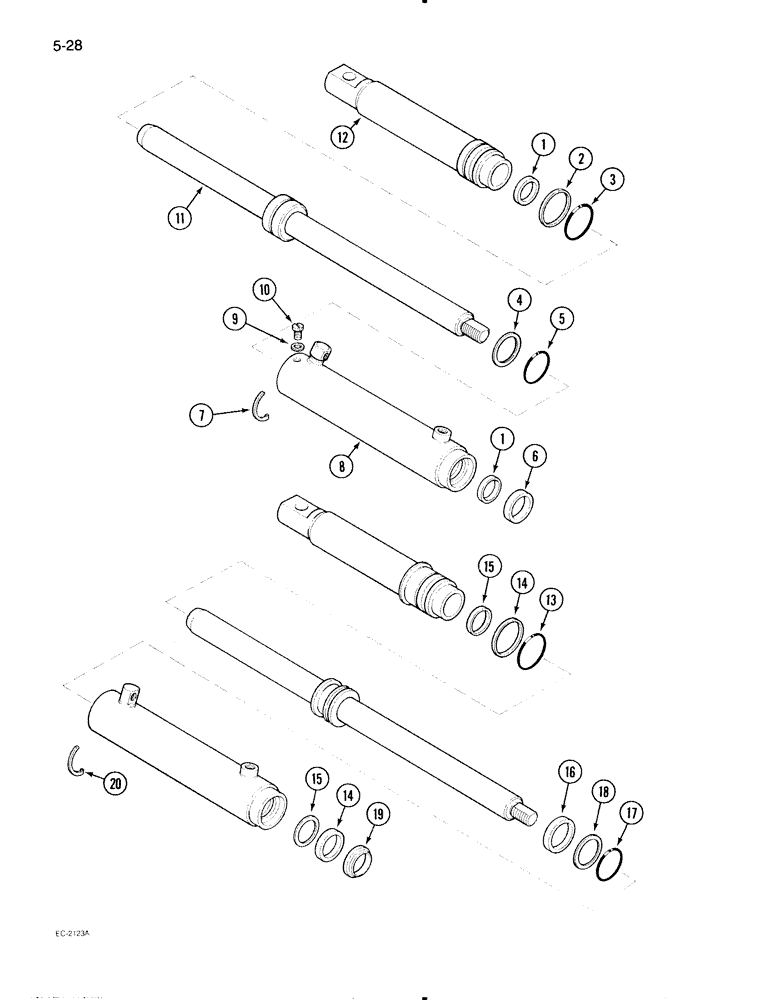

Запчасти Case IH 595 (5-28) - POWER STEERING CYLINDER, HEAVY DUTY CAST FRONT AXLE (05) - STEERING

3118502R93

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering, Includes: Ref. 1 - 12

1шт.

1

119214A1

SEAL - rod (Replaces 119214C1)

2шт.

2

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

WASHER - back-up

1шт.

3

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

4

378586R1

RING,51.1mm ID x 54.66mm OD x 3.56mm Thk

- sealing

1шт.

5

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

6

536308R91

WIPER SEAL

- rod wiper

1шт.

7

396106R1

ELECTRICAL WIRE

WIRE - retaining

1шт.

8

3118503R2

HYD TUBE,244.86, 38.10 mm Length

TUBE ASSEMBLY - steering cylinder

1шт.

9

92-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

470-1105

SCREW,Slotted Pan Hd, #10-24 x 5/16"

- pan head slotted, No. 10 x 5/16 inch

1шт.

11

536309R1

PISTON ROD

ROD ASSEMBLY - power steering

1шт.

12

536301R2

HEAD

ASSEMBLY - power steering

1шт.

1954043C1

CYLINDER

ASSEMBLY - power steering (Order 3118502R93), Includes: Ref. 13 - 20

1шт.

1954053C1

SEAL KIT

- service, cylinder seals, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - back-up

2шт.

15

NSS

NOT SOLD SEPARAT

RING - guide

2шт.

16

NSS

NOT SOLD SEPARAT

RING - guide

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

19

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

20

1954141C1

ELECTRICAL WIRE

WIRE - lock

1шт.
