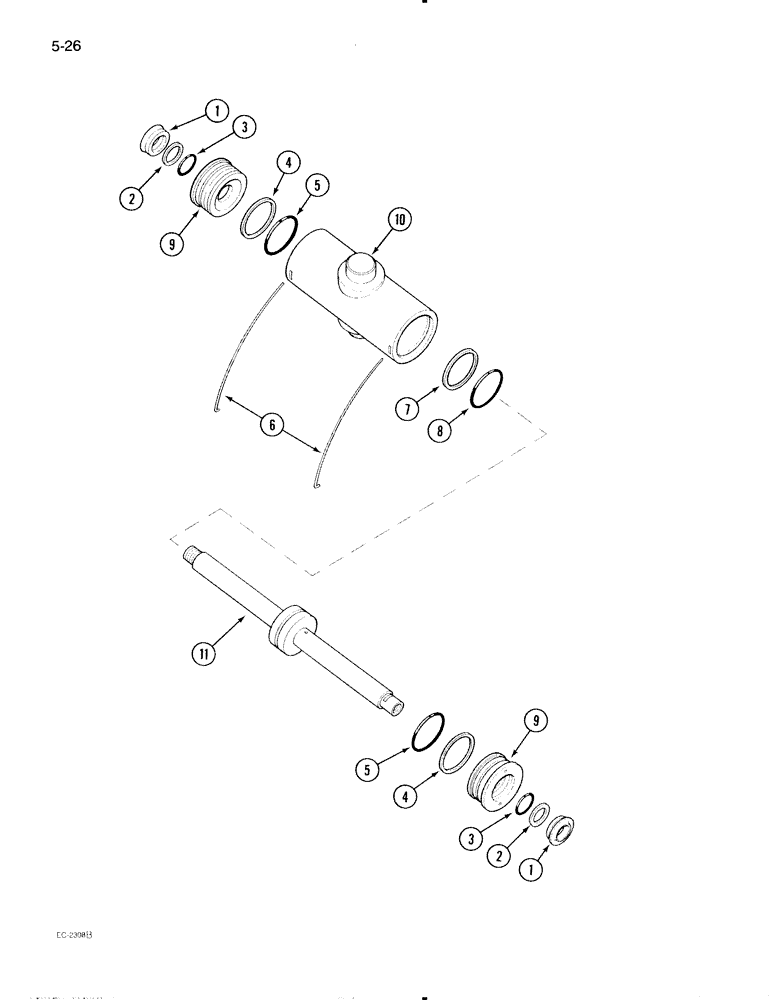

Запчасти Case IH 595 (5-26) - POWER STEERING CYLINDER, ADJUSTABLE FRONT AXLES (05) - STEERING

549667R93

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering, Includes: Ref. 1 - 11

1шт.

84336125R

REMAN-HYD CYLINDER

595 (1/90-12/94), Reman for New P/N 549667R93

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

55355C91

GASKET KIT

KIT - service, O-rings, seals and washers, Includes: Ref. 1 - 8

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER - piston rod

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

- piston rod back-up

2шт.

3

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

4

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

- back-up, rear head

2шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

6

140600C1

RETAINING WIRE

WIRE - locking

2шт.

7

379959R1

RING,Square, 3.17mm Thk x 58mm ID

- piston seal

1шт.

8

238-6137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

1шт.

9

400591R1

HEAD

- rear

2шт.

10

400587R1

HYD CYL SLEEVE

BODY - hydraulic cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

595 (1/90-12/94), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

11

549668R3

PISTON ROD

ROD - piston

1шт.
