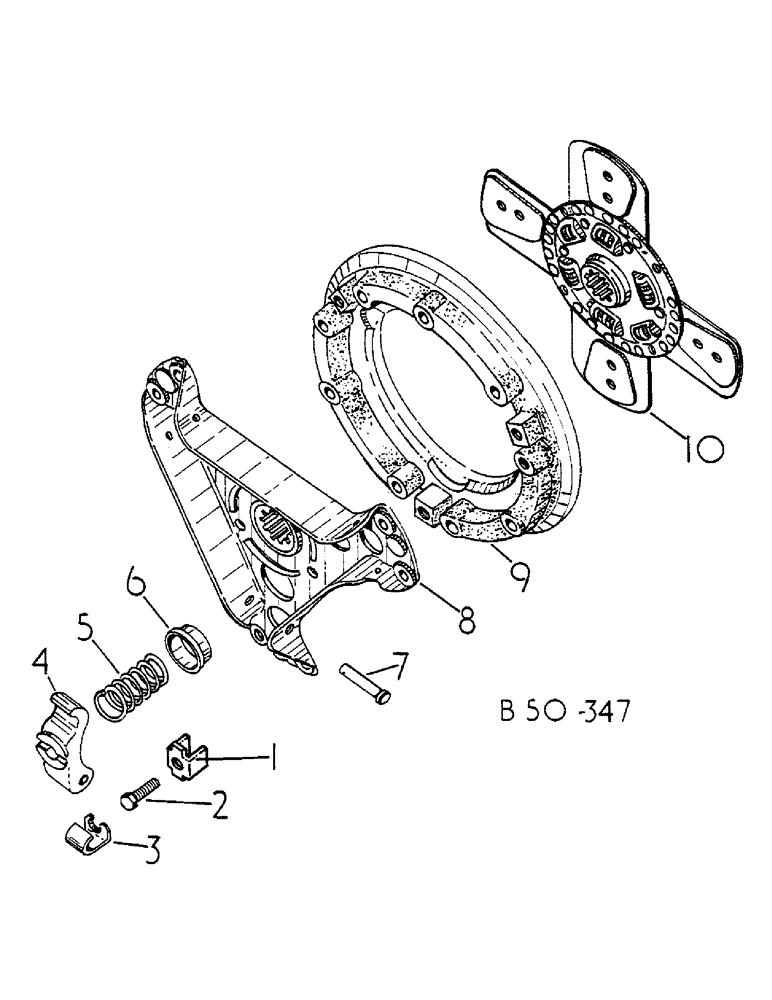

Запчасти Case IH 585 (07-018) - CLUTCH, 584/7900 UP, 585/9000 UP, 258/676 UP (04) - Drive Train

1500655C91

COVER ASSY

CLUTCH PRESSURE PLATE, INCLUDES WASHERS AND SCREWS, CONSISTS OF REF NOS 1 - 9

1шт.

103320

LOCK WASHER,5/16"

6шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

1

1500654C1

SUPPORT

KIT, WEAR CLIP

3шт.

2

69911C1

KIT

COVER, PARTS KIT, W/SCREW CLIP NUT AND WASHER

1шт.

2

1500653C1

KIT

COVER PARTS, W/SCREW CLIPS AND NUT

1шт.

*

NUT 5/16-24 HEX

3шт.

3

NS

NOT SERVICED

CLIP, RETURN

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

SPRING AND CUP PRESSURE

1шт.

6

CUP, SPRING, NOT SERVICED

3шт.

7

PIN, PIVOT, NOT SERVICED

3шт.

7

69914C1

HUB ASSY.

BRACKET

1шт.

8

69913C1

KIT

PLATE, PRESSURE

1шт.

9

3121506R91

DRIVEN PLATE

ASSY, CLUTCH DISC, 5 RIVETS

1шт.

9

293248A1R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button, N.A. Only

1шт.

9

293248A1C

CORE-CLUTCH DISC

Return Number, N.A. Only

1шт.

9

3129463R91

PLATE ASSY.

CLUTCH DRIVEN DISC, OPTIONAL

1шт.
