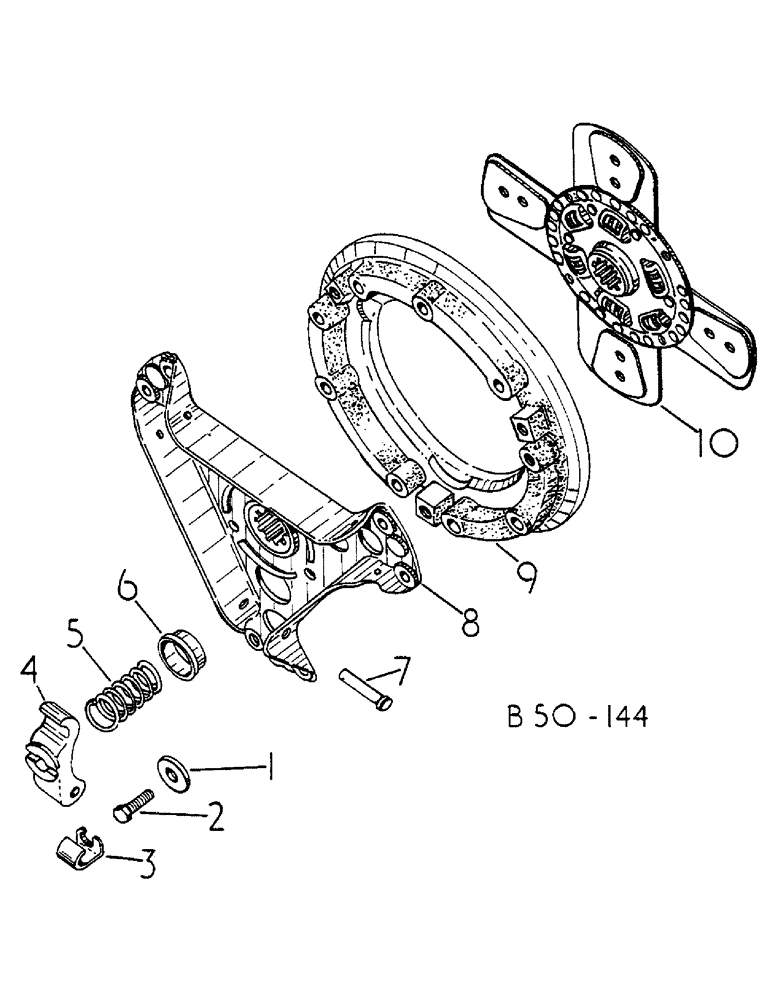

Запчасти Case IH 585 (07-016) - CLUTCH, UP TO 584/7989, 585/8999, 258/675 (04) - Drive Train

70716C1

COVER ASSY

CLUTCH PRESSURE PLATE, INCLUDES WASHERS AND SCREWS, CONSISTS OF REF NOS 1 - 9

1шт.

103320

LOCK WASHER,5/16"

6шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

1

WASHER, NOT SERVICED

3шт.

2

69911C1

KIT

COVER, PARTS KIT, W/SCREW, CLIP, NUT AND WASHER

1шт.

NS

NOT SERVICED

NUT

3шт.

3

CLIP, RETURN, NOT SERVICED

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

SPRING AND CAP, PRESSURE

1шт.

6

CUP, SPRING, NOT SERVICED

3шт.

7

PIN, PIVOT, NOT SERVICED

3шт.

8

69914C1

HUB ASSY.

BRACKET

1шт.

9

69913C1

KIT

PLATE, PRESSURE

1шт.

10

3121506R91

DRIVEN PLATE

ASSY, CLUTCH DRIVEN DISC, 5 RIVETS

1шт.

10

293248A1R

REMAN-CLUTCH DISC

Remanufactured 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button, N.A. Only

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Number, N.A. Only

1шт.

10

3129463R91

PLATE ASSY.

CLUTCH DRIVEN DISC, OPTIONAL

1шт.
