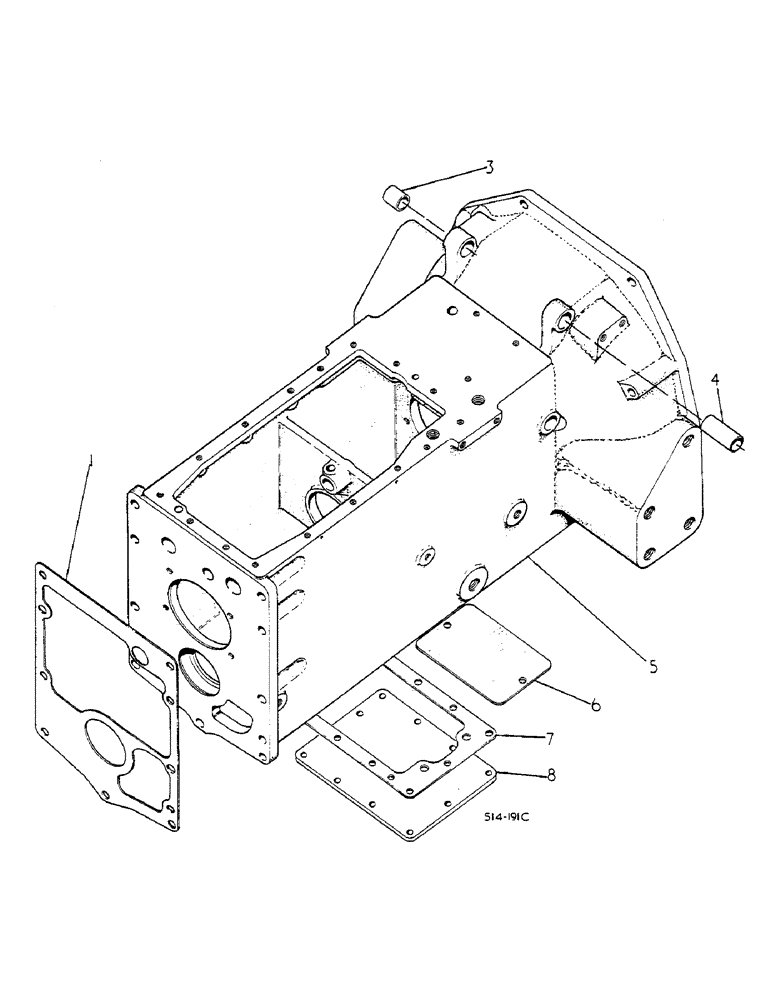

Запчасти Case IH 585 (07-014) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

399814R4

GASKET

CLUTCH HOUSING TO REAR FRAME

1шт.

2

NOT APPLICABLE

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

CLUTCH AND BRAKE SHAFT

1шт.

4

537099R1

NO LONGER SERVICED

BUSHING, L H BRAKE PEDAL PIVOT

1шт.

5

537097R96

HOUSING

CLUTCH, ALSO INCLUDES BEARING 399820R1 OR 527746R91 IN SPEED TRANSMISSION, INCLUDES SCREWS, WASHERS, NUTS, PLUGS, PINS AND O-RING

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 X 1-1/2 HEX HD CAP TO REAR FRAME

9шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Thru clutch hsg and spacer to crankcase

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2-13 X 3-1/2 HEX HD CAP, THRU PAN AND SPACER TO CLUTCH HOUSING

2шт.

179887

CABLE

Thru spacer to clutch housing

4шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2-13 X 5-1/2 HEX HD CAP, THRU SPACER TO CLUTCH HSG

1шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2-13 X 6 HEX HD CAP, THRU SPACER TO CLUTCH HSG

1шт.

103323

LOCK WASHER,1/2"

2шт.

102637

NUT,1/2"-13, G5

3шт.

3113103R1

PLUG

3/4-14 AUTOMOTIVE HEX HD PIPE

1шт.

327411R1

PLUG,Cup, 5/8"

5/8 CUP

1шт.

19962R1

DOWEL,3/8" x 3/4"

1шт.

20556R1

DOWEL,1/2" x 3/4"

1шт.

19904R1

DOWEL,1/2" x 1"

2шт.

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1/2 OD TUBE, T A PRESSURE PORT

1шт.

6

399817R1

COVER

CLUTCH COMPARTMENT, INCLUDES SCREWS

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1/4-20 X 5/8 C-Z SLT PAN HD MACH

2шт.

7

402556R2

GASKET

CLUTCH HOUSING BOTTOM REAR

1шт.

8

402182R1

COVER

CLUTCH HOUSING BOTTOM REAR, INCLUDES SCREWS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.
