Запчасти Case IH 585 (04-005) - PARK LOCK (5.1) - BRAKES

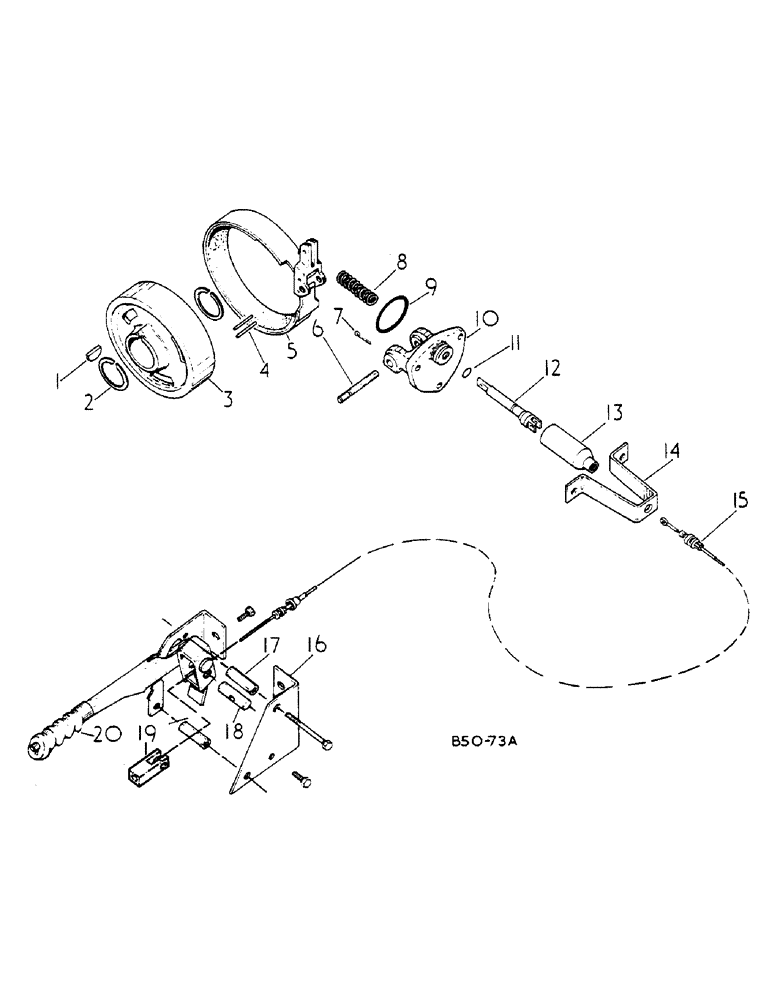

Схема запчастей Case IH 585 - (04-005) - PARK LOCK (5.1) - BRAKES
1
14
11
10
17
2
12
6
20
4
15
18
16
8
5
3
7
9
19
3

Артикул

Название

Примечание

Количество

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING SNAP RETAINING

2шт.

3

399828R1

HUB

BRAKE DRUM

1шт.

3

528450R1

SPACER

TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

4

535544R1

PIN

1-1/2 X 250 DIA

2шт.

5

401992R3

BAND

ASSY, BRAKE AND ACTUATING TOGGLE, INCLUDES PINS

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

5/16 X 31/32 ROD END

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

6

401998R1

PIVOT PIN

PARKING BRAKE PIVOT

1шт.

7

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

8

402000R1

SPRING

PARKING BRAKE RETURN

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 X 2-3/4 X 3/32 - PARKING BRAKE PIVOT

1шт.

10

401997R1

PIVOT

PARKING BRAKE, INCLUDES SCREWS AND WASHER

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

1шт.

11

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16 PIVOT PLUNGER, INCLUDES PINS AND WASHER

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

5/16 X 15/16 STD HD

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 051

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

12

402014R1

PLUNGER

PARKING BRAKE PIVOT

1шт.

13

402015R1

BOOT

CABLE PROTECTION

1шт.

14

401999R1

SUPPORT

BRACKET, CABLE HSG ANCHOR LOWER

1шт.

15

529084R1

NO LONGER SERVICED

CABLE ASSY, PARKING BRAKE, ORDER 3129788R2 W/PIN 3129789R1 BLOCK 3129790R1 AND NUT 144418H

1шт.

15

3129788R2

CABLE ASSY.

PARKING BRAKE, INCLUDES NUTS AND SPRINGS

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING 3/8 RETAINER

2шт.

15

3123901R1

CABLE

BRAKE, ORDER 3129788R2 W/PIN 3129789R1 BLOCK 3129790R1 AND NUT 144418H

1шт.

15

1500021C1

CABLE ASSY.

PARKING BRAKE, SUPER DE-LUXE CAB

1шт.

16

3121680R1

BRACKET

ASSY, HAND BRAKE SUPPORT, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW 3/8-16 X 3 HEX HD CAP

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

17

11531N

SPACER,3/8" Pipe x 2"

675 X 493 X 2 0 LONG

2шт.

18

3121683R1

PIN

PARKING BRAKE CABLE, UP TO 7499, UP TO 258-638

1шт.

18

3129789R1

PIN,16mm OD x 50mm L

PARK BRAKE CABLE, 7500 UP, 258-639 UP

1шт.

19

48094K

SPACER

5 X 354 X 938 LONG, UP TO 7499, UP TO 258-638

1шт.

19

3129790R1

BLOCK

PARK BRAKE CABLE, 7500 UP, 258-639 UP

1шт.

20

3121682R92

LEVER ASSY.

PARK BRAKE HAND, FOR DETAILS SEE LIST OF ITEMS UNDER PARK BRAKE HAND LEVER

1шт.

Выбрано товаров: 40
