Запчасти Case IH 585 (09-007) - LOWER LINKS, THREE-POINT HITCH, WITH OUTSIDE CHECK CHAINS (12) - FRAME

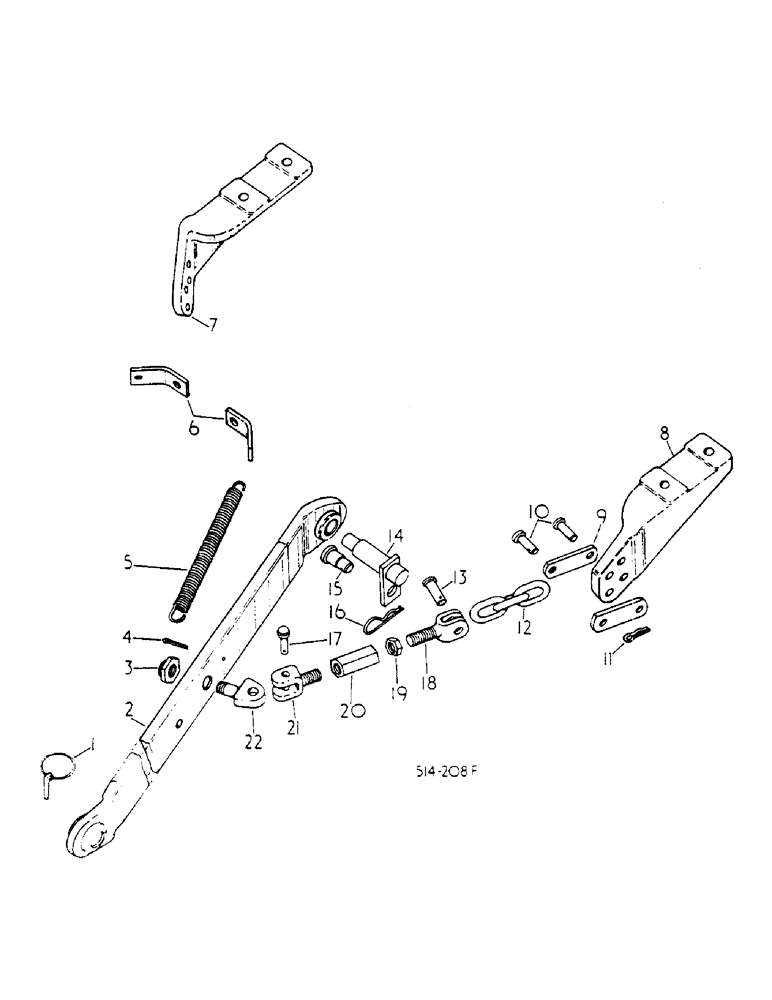

Схема запчастей Case IH 585 - (09-007) - LOWER LINKS, THREE-POINT HITCH, WITH OUTSIDE CHECK CHAINS (12) - FRAME
17
6
14
12
9
8
2
10
21
18
1
13
4
22
5
15
3
7
16
11
20
19

Артикул

Название

Примечание

Количество

1

533189R1

PIN

ASSY

2шт.

2

3118064R91

LOWER LINK

ASSY

2шт.

3

19853R1

LOCK NUT,7/8"-14

7/8-14

2шт.

4

32-2024

COTTER PIN,5/16" x 1 1/2"

1шт.

5

662632R1

SPRING

CHECK CHAIN RESTRAINING

2шт.

6

3121228R1

BRACKET

SWAY CHAIN, INCLUDES BOLTS

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

BOLT 5/8 X 1 PLN

4шт.

7

529874R1

SUPPORT

BRACKET, CHECK CHAIN L H, INCLUDES BOLTS AND WASHERS

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

BOLT 5/8 X 2 PLN

2шт.

103325

LOCK WASHER,5/8"

2шт.

8

529875R1

SUPPORT

BRACKET, CHECK CHAIN R H, INCLUDES BOLTS AND WASHERS

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

BOLT 5/8 X 2 PLN

2шт.

103325

LOCK WASHER,5/8"

2шт.

9

3113594R1

PLATE

STRAP, CHECK CHAIN R H

4шт.

10

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN, INCLUDES COTTER PINS

4шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

11

720631R1

LINCH PIN

ADJ STRAP COTTER

25шт.

12

311595R1

CHAIN, LIMITER

2шт.

13

403037R2

PIN

LIMITER CHAIN, INCLUDES COTTER PINS

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

14

3118060R1

PIN

LOWER LINK

2шт.

15

3118063R1

PIN

LOWER LINK LOCK

2шт.

16

538406R1

COTTER PIN

PIN, LOWER LINK

2шт.

17

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN, INCLUDES COTTER PINS

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

18

70622C1

CLEVIS,7/8" - 14

ASSY, LIMITER CHAIN

2шт.

19

219754R1

NUT

7/8-14 HEX JAM

2шт.

20

3116619R1

NUT

ADJUSTMENT

2шт.

21

3118016R1

CLEVIS,7/8" - 14

ASSY, LIMITER CHAIN LH THD

2шт.

22

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, EYE

2шт.

1092798R2

PRODUCT GRAPHIC

SWAY CHAINS, AGRICULTURAL MACHINES, NOT ILLUSTRATED

1шт.

1093311R1

DECAL

SWAY CHAINS, INDUSTRIAL MACHINES, NOT ILLUSTRATED

1шт.

Выбрано товаров: 32
