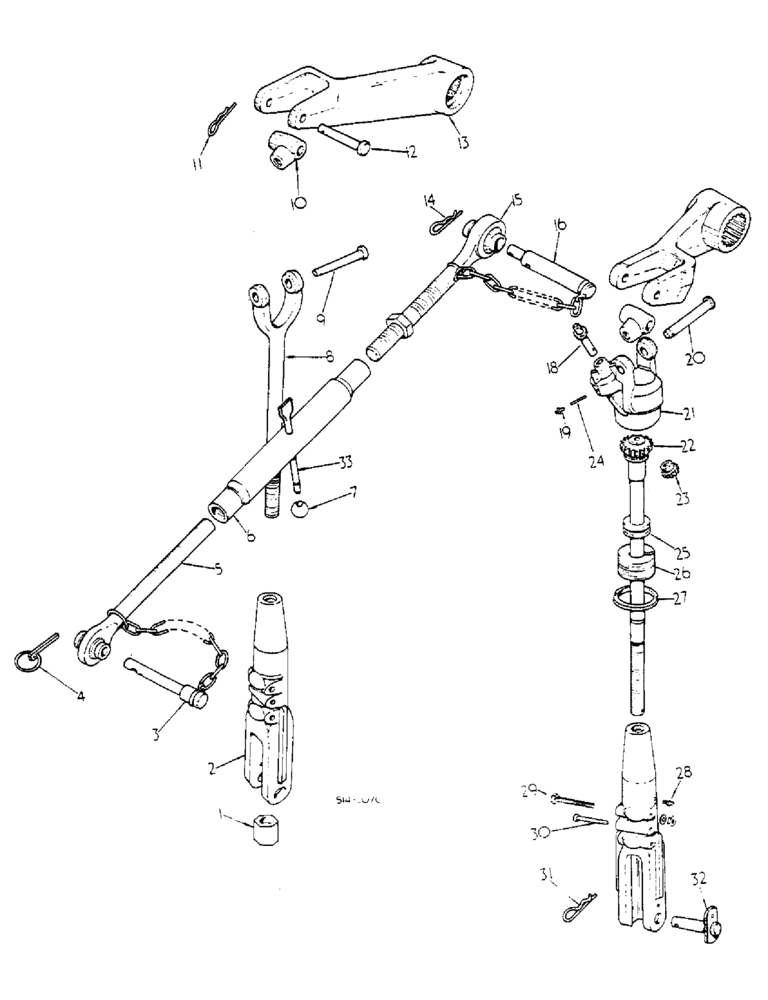

Запчасти Case IH 585 (09-002) - THREE-POINT HITCH (12) - FRAME

.

SERVICE PARTS FOR TRACTORS WITHOUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT A

1шт.

.

SERVICE PARTS FOR TRACTORS WITH AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT B

1шт.

.

SERVICE PARTS FOR TRACTORS FITTED WITH DRAFT CONTROL OUTSIDE CHECK CHAINS WITHOUT AUTOMATIC HITCH INCLUDES TELESCOPIC LOWER LINKS AND CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT C

1шт.

.

SERVICE PARTS FOR TRACTORS FITTED WITH DRAFT CONTROL OUTSIDE CHECK CHAINS WITH AUTOMATIC HITCH INCLUDES TELESCOPIC LOWER LINKS AND CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT D

1шт.

1

527937R1

NUT

LIFT LINK

2шт.

2

3121964R1

HOUSING

LIFT LINK YOKE, UNIT A, B

2шт.

2

3121965R1

HOUSING

LIFT LINK YOKE, UNIT C, D

2шт.

3

528081R1

PIN ASSY.

UPPER LINK, CAT I

1шт.

4

533189R1

PIN

ASSY, IMPLEMENT

1шт.

5

527996R1

SCREW

SCREW ASSY, R H THREADED UPPER

1шт.

6

528003R1

TURNBUCKLE

1шт.

7

3048296R1

BUTTON

KNOB, TURNBUCKLE ROD

1шт.

8

527948R91

CLEVIS,7/8" - 9

YOKE ASSY, LIFT L H

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

9

3044309R1

PIN

5/8 X 3-1/2 STD, INCLUDES COTTER PIN

2шт.

.

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

539247R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, LEVELING

2шт.

11

720631R1

LINCH PIN

ROCKSHAFT ARM COTTER, UNIT A, C

2шт.

12

3044309R1

PIN

ROCKSHAFT, ARM HD, UNIT A, C

2шт.

13

402634R2

ROCKER ARM

ROCKSHAFT

2шт.

14

530049R1

CLIP, SPRING

PIN, LIFT LINK PIVOT QA

1шт.

15

527994R1

SCREW

ASSY, L H THREAD UPPER, INCLUDES NUT

1шт.

.

325-157

NUT

1-1/8-7 HEX LOCK

1шт.

16

528084R1

HITCH PIN

ASSY, UPPER LINK CAT II

1шт.

17

3072424R1

SPRING

LEVELLING SCREW HANDLE

1шт.

18

527943R1

CRANK

HANDLE, LEVELLING SCREW

1шт.

18

3118015R1

CRANK

HANDLE, LEVELLING SCREW, DE-LUXE CAB

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

Grease fitting 109461 was replaced by 219-1 which is now replaced by self-tapping fitting W45836. MJ Huett1

1шт.

20

3069069R1

PIN

5/8 X 3-3/4 HARDENED, INCLUDES COTTER PIN

1шт.

.

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

3072422R2

HOUSING

LEVELLING SCREW

1шт.

Will no longer be tapped for 1/8 NPT threads. MJ Huett1

1шт.

22

527951R2

SCREW

LIFT R H LINK LEVELLING

1шт.

23

3069063R1

GEAR

PINION, INCLUDES PIN

1шт.

.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

3/16" x 3/4", Type A

2шт.

24

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

LEVELLING SCREW BRG

1шт.

25

3044346R91

BALL BEARING

LEVELLING SCREW RM

1шт.

25

3044347R91

THRUST BEARING

LEVELLING SCREW FH

1шт.

25

3044348R91

BEARING, THRUST

LEVELLING SCREW SG

1шт.

25

3068049R91

BALL BEARING

LEVELLING SCREW HIVES, OPTIONAL

1шт.

26

3069064R1

BEARING

SCREW, BEARING, LEVELLING

1шт.

27

3069065R1

LOCK NUT

LEVELLING SCREW BEARING

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

29

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

Includes nuts and washers

2шт.

.

9635082

NUT,5/16" - 18, Gr 5

2шт.

.

80681

LOCK WASHER,5/16"

2шт.

30

530049R1

CLIP, SPRING

PIN, LIFT LINK PIVOT PIN QA , UNIT A, B

2шт.

30

533189R1

PIN

ASSY, LOWER LINK DRAWBAR, UNIT C, D

2шт.

31

527952R1

PIN ASSY.

LIFT LINK PIVOT, UNIT A, B

2шт.

31

402645R1

PIN

LIFT LINK PIVOT, UNIT C, D

2шт.

32

65958C2

ROD

TURNBUCKLE

1шт.

.

528079R91

UPPER LINK

ASSY, NOT ILLUSTRATED

1шт.

.

530050R3

CLIP,ELECTRICAL

UPPER LINK STORAGE, INCLUDES WASHER, NOT ILLUSTRATED

1шт.

.

23042R1

WASHER

17/32 X 1 X 030 FLAT, NOT ILLUSTRATED

1шт.

.

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder, Not Illustrated

1шт.
