Запчасти Case IH 585 (08-052) - BATTERY TRAY, MACHINES FITTED WITH CAB (06) - ELECTRICAL

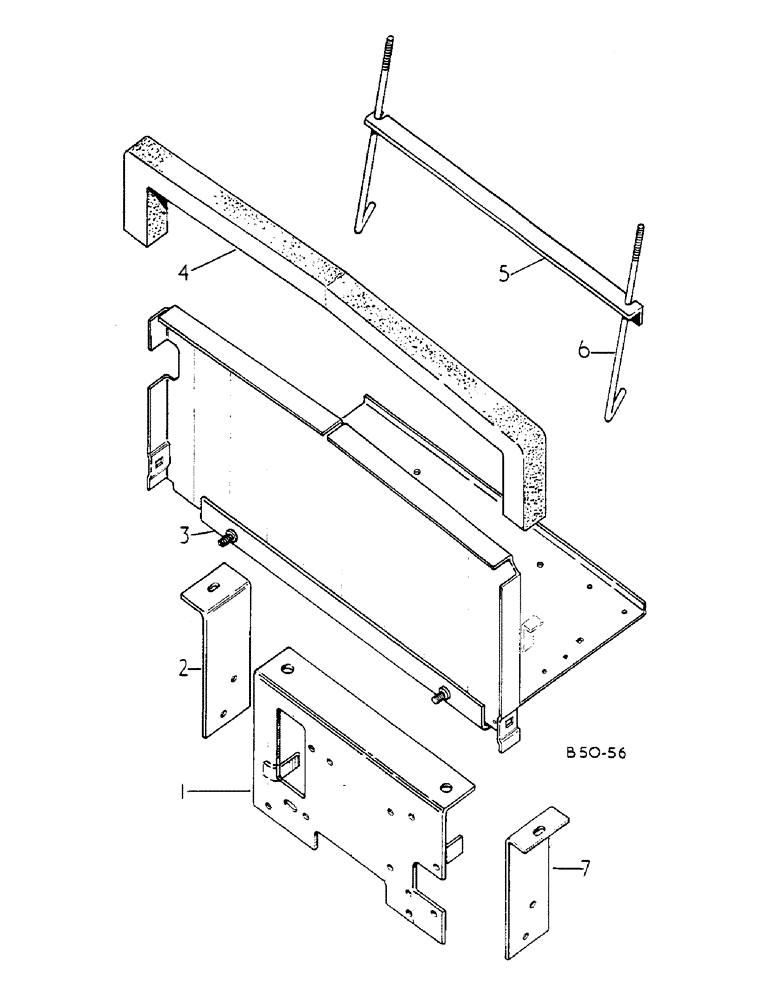

Схема запчастей Case IH 585 - (08-052) - BATTERY TRAY, MACHINES FITTED WITH CAB (06) - ELECTRICAL
5
1
3
4
6
2
7

Артикул

Название

Примечание

Количество

1

3123057R1

SUPPORT

ASSY, BATTERY

1шт.

1

538054R1

SUPPORT

ASSY, BATTERY, INCLUDES NUTS, SCREWS, WASHERS AND NUTS

1шт.

3121629R1

NUT

RETAINER, SUPER DE-LUXE CAB

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

3116893R1

SUPPORT

SPARE PART BATTERY TRAY R H, INCLUDES BOLT, NUT AND WASHERS

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

406 X 625 X 054 PLAIN

1шт.

3

3123055R1

TRAY ASSY.

BATTERY, INCLUDES SCREW, WASHERS AND NUTS

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

11/32 X 1 X 120

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

RETAINER

2шт.

120393

BEARING WASHER,5/16", SAE

344 X 688 X 051

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

4

402203R1

GASKET

BATTERY HEAT SHIELD

1шт.

5

3121178R1

BRACKET

BATTERY HOLD DOWN

1шт.

6

529968R2

ROD

BATTERY HOLD DOWN, INCLUDES WASHERS AND NUTS

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 051 C-Z

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

3116892R1

SUPPORT

BATTERY TRAY L H, INCLUDES BOLT, NUTS AND WASHERS

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

406 X 625 X 054 PLAIN

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

3125822R1

CABLE CLIP

SPARE PART 22 MM DIA, OPTIONAL, NOT ILLUSTRATED

1шт.

3125823R1

CLIP

CABLE 19 MM DIA, INCLUDES BOLT, NUT AND WASHER, NOT ILLUSTRATED

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not Illustrated

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Not Illustrated

1шт.

492-11025

LOCK WASHER,1/4"

Located under battery tray ASM, Not Illustrated

1шт.

Выбрано товаров: 38
