Запчасти Case IH 585 (08-050) - BATTERY TRAY (06) - ELECTRICAL

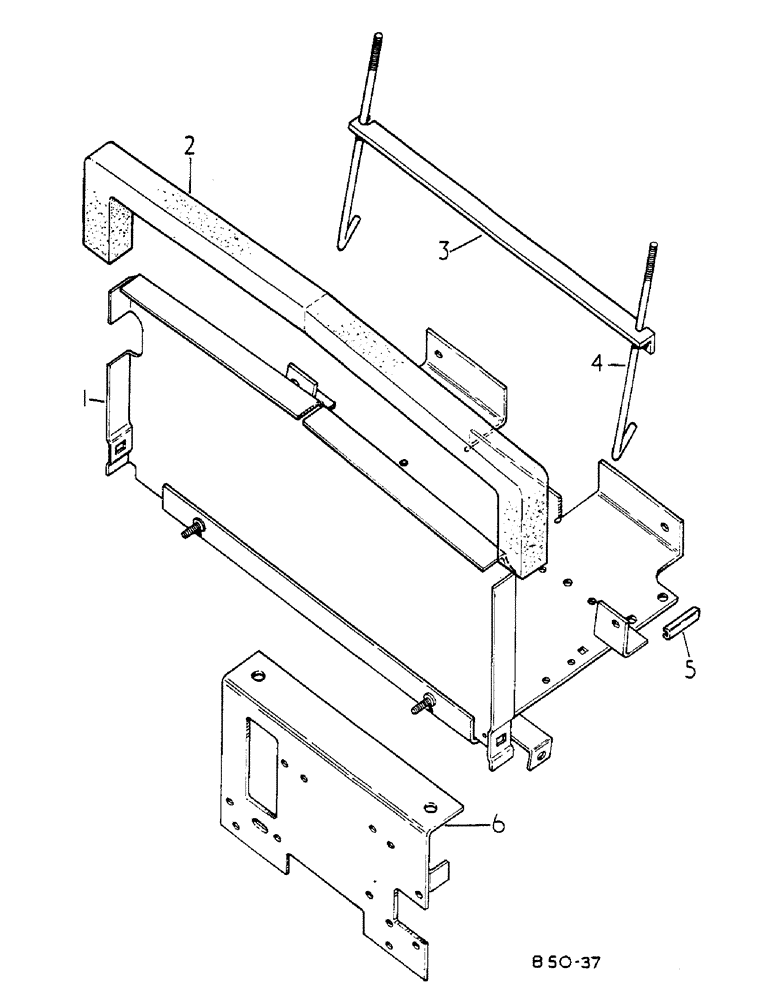

Схема запчастей Case IH 585 - (08-050) - BATTERY TRAY (06) - ELECTRICAL
5
4
1
6
2
3

Артикул

Название

Примечание

Количество

1

3121626R1

TRAY ASSY.

BATTERY, INCLUDES SCREW, WASHERS AND NUTS

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

11/32 X 1 X 120 C-Z

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120394

WASHER,3/8", SAE

3/8 PLAIN

2шт.

3121629R1

NUT

RETAINER, HOOD

2шт.

2

73217C1

FILLING STRIP

GASKET, FOAM, BULK LENGTH 4FT

1шт.

3

3121178R1

BRACKET

BATTERY HOLD DOWN

1шт.

4

529968R2

ROD

BATTERY HOLD DOWN, INCLUDES WASHERS AND NUTS

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 051 C-Z

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3113841R1

MOLDING

EDGE

1шт.

6

538054R1

SUPPORT

ASSY, BATTERY TRAY, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

Выбрано товаров: 20
