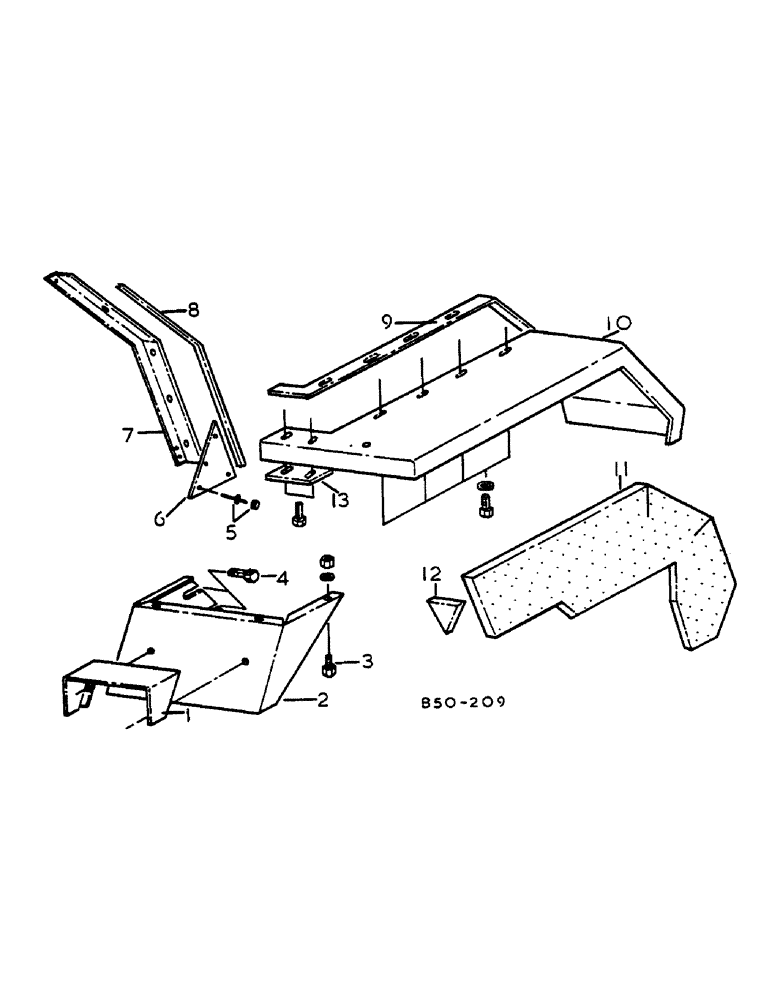

Запчасти Case IH 585 (13-069) - FENDERS AND INSULATORS, SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE

1

3125372R1

COVER

TAIL LIGHT PROTECTION, INCLUDES SCREWS, WASHERS AND NUTS

2шт.

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD

4шт.

934490R1

LOCK WASHER,Ext Tooth, M5

3/16

4шт.

934871R1

NUT,M5, Cl 5

M5

4шт.

2

3125370R1

EXTENSION

FLAP, L H

1шт.

2

3125371R1

MUDFLAP

R H

1шт.

3

712684R1

SCREW,Sltd Pan Hd, M5 x 10

M5 X 12 CHEESE HD, INCLUDES WASHERS AND NUTS

6шт.

934490R1

LOCK WASHER,Ext Tooth, M5

3/16

6шт.

934871R1

NUT,M5, Cl 5

M5

6шт.

4

3125373R1

SCREW

SELF-TAP

4шт.

5

3125379R1

RIVET

TUBULAR, INCLUDES COVERS

8шт.

3125380R1

COVER

TUBULAR RIVET

8шт.

6

3125377R1

PLATE

SPARE PART KICK L H

1шт.

6

3125378R1

PLATE

PLATE, KICK R H

1шт.

7

3125374R1

STRIP

PROTECTION L H

1шт.

7

3125375R1

STRIP

SPARE PART PROTECTION R H, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

3125376R1

SCREW

M5 X 20 SELF-TAP

4шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

M8 X 25 SET

4шт.

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Set

4шт.

3125369R1

WASHER

5/16

4шт.

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER 5/16

12шт.

30167R1

NUT,M8, Cl 10

8шт.

8

3125381R1

STRIP

EDGING

2шт.

9

3125364R1

GASKET

WING

2шт.

10

3125362R1

FENDER

OUTER L H

1шт.

10

3125363R1

FENDER

SPARE PART OUTER R H, INCLUDES STOP, SCREWS AND WASHERS

1шт.

3125366R1

STOP

RUBBER

1шт.

3125367R1

SCREW

M8 X 15 SELF TAP

8шт.

3125368R1

SCREW

M8 X 25 SELF TAP

4шт.

3125369R1

WASHER

5/16

8шт.

11

3125383R1

INSULATOR

FOAM WING R H

1шт.

11

3125382R1

INSULATOR

FOAM WING L H

1шт.

12

3125384R1

INSULATOR

TRIANGULAR

1шт.
