Запчасти Case IH 585 (13-054) - HEATER FEED AND RETURN PIPES, SEKURA ROOF HEATER (05) - SUPERSTRUCTURE

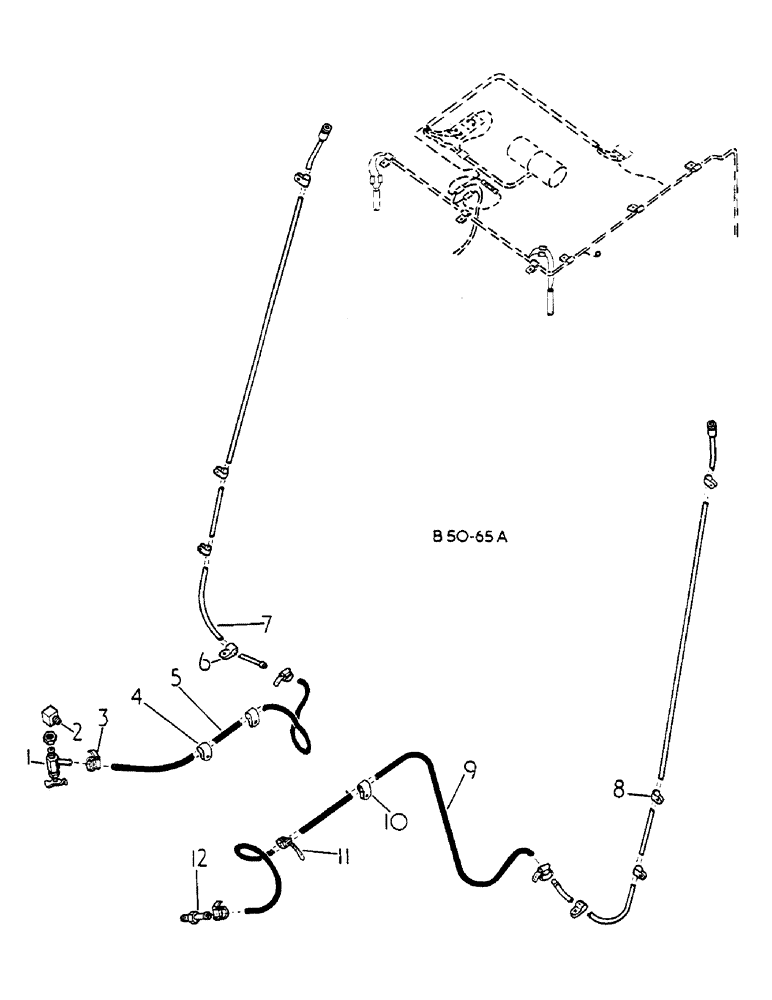

Схема запчастей Case IH 585 - (13-054) - HEATER FEED AND RETURN PIPES, SEKURA ROOF HEATER (05) - SUPERSTRUCTURE
3
6
7
4
8
12
2
1
10
9
11
5

Артикул

Название

Примечание

Количество

1

898799H1

VALVE

WATER SHUTOFF TAP

1шт.

2

3121599R1

ADAPTER

SPARE PART THERMOSTAT HSG TO WATER TAP

1шт.

3

3074617R91

CLAMP

HOSE

4шт.

4

168396H1

CLAMP,13/16", 3/8" Bolt

INCLUDES WASHERS AND BOLTS

2шт.

751492R1

WASHER

333 X 625 X 072

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

3120957R1

HOSE

RUBBER, WATER TAP TO W/SCREEN PIPE

1шт.

6

3121728R1

CLAMP

INCLUDES SCREWS

4шт.

3121294R1

SCREW

NO 10-24 X 1/2 PAN HD TAPITE

4шт.

7

3121596R1

TUBE

HEATER, SEKURA

2шт.

8

3121728R1

CLAMP

INCLUDES SCREWS

4шт.

3121294R1

SCREW

NO 10-24 X 1/2 PAN HD TAPITE

4шт.

9

3125131R1

HOSE,0.52", SAE 20R3

RUBBER W/SCREEN PIPE TO WATER PUMP

1шт.

10

169396H1

SPARE PART CLIP

1шт.

11

3120178R1

STRAP

LOCK

1шт.

12

3025188R1

ADAPTER

WATER PUMP

1шт.

Выбрано товаров: 16
